Universal Air Tools UT8702/3 - Manual (Page 3)

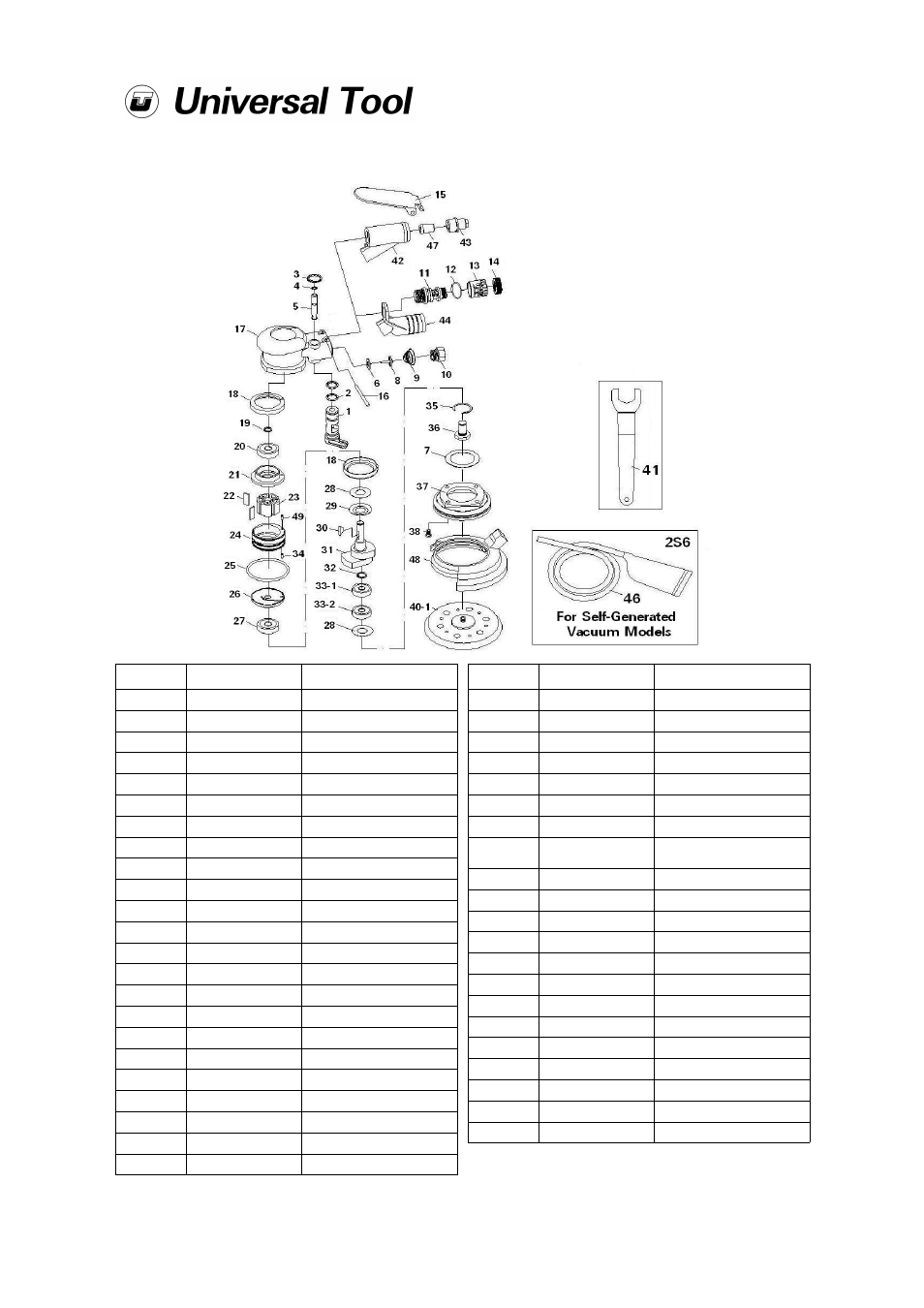

UT8700/1/2/3 Dual Action Sanders
Page No 3 Nov 2005 Ver 1.00
Ref No Part No Description
24 UT-OB-22 Cylinder
25 UT-OB-24 O-Ring
26 UT-OB-25 Front Plate
27 UT-OB-26 Bearing
28 UT-OB-28.1 Washer (2)
29 UT-E-29 Washer
30 UT-70407 Rotor Key
31 UT-S560-29
Motor Shaft Balancer
(6")
32 UT-OB-30 Snap Ring
33-1 UT-OB-31.1 Bearing
33-1 UT-OB-31.2 Bearing
34 UT-81326 Pin (3*6)
35 UT-OB-33 Snap Ring
36 UT-S560-34 Shaft
37 UT-OB-35.2 Housing Cover
38 UT-OB-36 Screw (4)
40-1 UT-OB-38.2-1 Pad 6"
41 UT-OB-39 Stop Spanner
44 UT-S560-41 Vacuum Adapter (2C6)
48 UT-S560-47 Shroud
49 UT-OB-23 Pin
Ref No Part No Description
1 UT-OB-01 Regulator
2 UT-OB-02 O-Ring (2)
3 UT-OB-03 Snap Ring
4 UT-OB-04 O-Ring
5 UT-OB-05 Valve Stem
6 UT-OB-06 Washer
7 UT-OB-16.1 Washer
8 UT-OB-08 Valve
9 UT-OB-09 Spring
10 UT-70426 Air Inlet
11 UT-OB-11 Muffler Body
12 UT-OB-11.1 O-Ring
13 UT-OB-11.3 Exhaust Sleeve
14 UT-OB-11.2 Nut
15 UT-OB-13 Lever
16 UT-OB-14 Pin
17 UT-OB-15-3 Housing
18 UT-OB-16 Rubber Bushing (2)
19 UT-70410 Snap Ring
20 UT-OB-18 Bearing
21 UT-OB-19 Rear Plate
22 UT-OB-20 Rotor Blade (5)
23 UT-OB-21-1 Rotor
