Universal Air Tools UT8788DC - Manual (Page 3)

UT8788
UT8788DC Dual Action Sander
Dual Action Sander - Dust Control
Page No 3 Nov 2012 v1.5

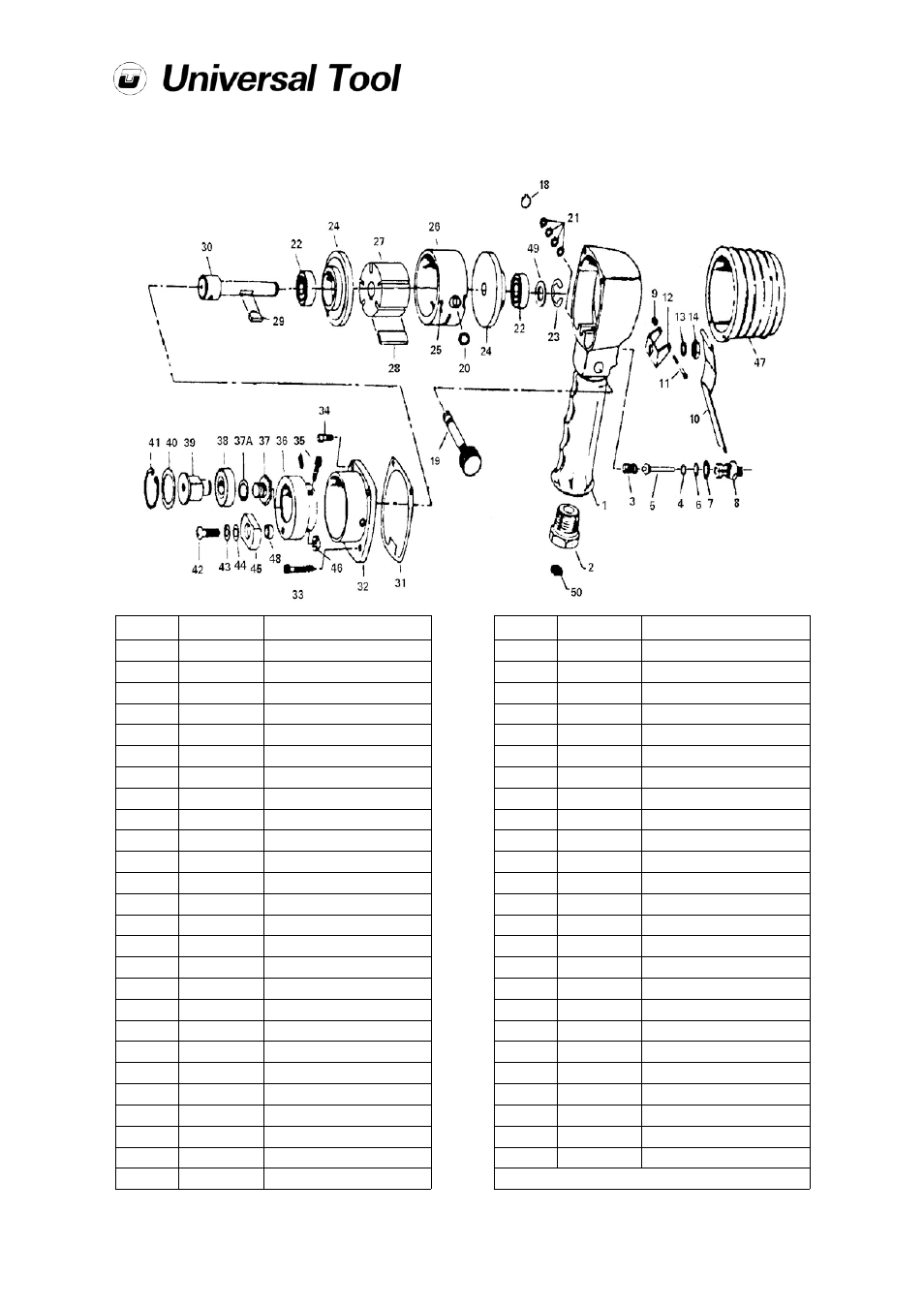

Ref No Part No Description
1 729134 Motor Housing
* 729605 Rubber Grip
2 729084 Hose Adapter
3 729115 Throttle Valve Spring
4 732063 O-Ring
5 729117 Valve Stem
6 729118 O-Ring
7 1008680 O-Ring
8 729120 Valve Body
9 729121 Hex Nut
10 729122 Throttle Lever
11 729123 Hinge Screw
12 729124 Bracket
13 729125 Lock Washer
14 729126 Hex Nut
18 729127 Retaining Ring
19 729939 Regulator Valve
20 1008695 O-Ring
21 1008173 O-Ring (4)
22 729136 Ball Bearing (2)
23 729137 Retaining Ring
24 729138 End Plate (2)
25 729139 Locating Pin
26 729140 Cylinder
27 729141 Rotor
28 729142-1 Rotor Blade (5)
Ref No Part No Description
29 729144 Key
30 729940 Rotor Shaft
31 729155 Gasket
32 729154 Drive Housing
33 1014354 Cap Screw (2)
34 1007697 Cap Screw (2)
35 1011871 Cap Screw
36 729941 Orbital Hub
37 729152 Hex Bolt
37A 729152A Wave Washer
38 729153 Ball Bearing
39 729150 Drive Spindle
40 729160 Spring Washer
41 729151 Retaining Ring
42 729148 Screw
43 729149 Flat Washer
44 729158 Spring Washer
45 729942 Spindle Lock
46 729159 Hex Nut
47 729135 Housing Cover
48 729344 Spacer
49 729345 Wave Washer
50 1006577 Screen
51 764A-51 Name Plate
52 729343 Name Plate Screw (2)
* Parts not shown
