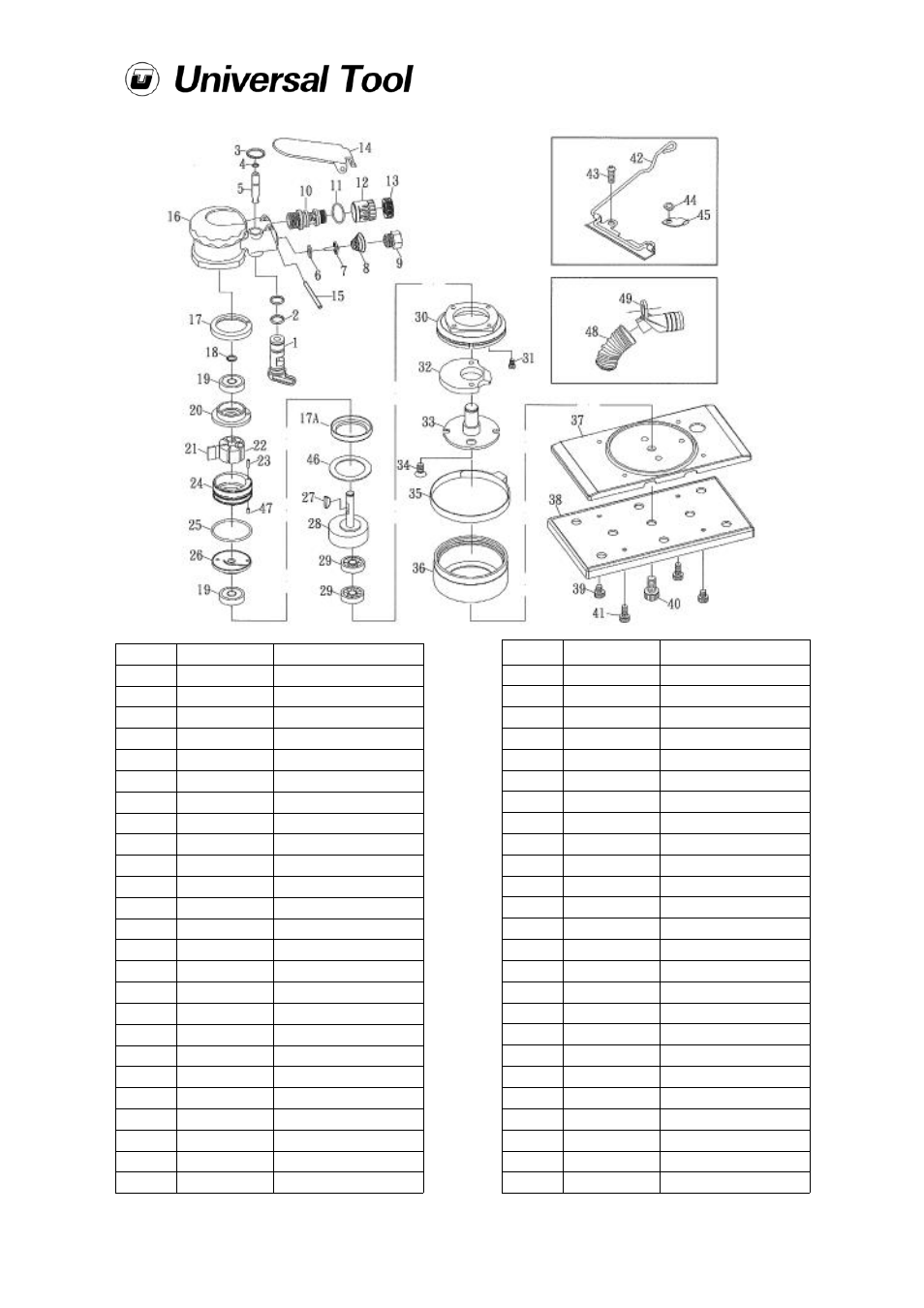

UT8795 & UT8795-DC Orbital Block Sander
Ref No Part No Description
1 UT-OB-01 Regulateor
2 UT-OB-02 O-Ring (2)
3 UT-OB-03 Snap Ring
4 UT-OB-04 O-Ring
5 UT-OB-05 Valve Stem
6 UT-OB-06 Washer
7 UT-OB-08 Valve
8 UT-OB-09 Spring
9 UT-70426.1 Air Inlet
10 UT-OB-11 Muffler Body
11 UT-OB-11.1 O-Ring
12 UT-OB-11.3 Exhaust Sleeve
13 UT-OB-11.2 Nut
14 UT-OB-13 Lever
15 UT-OB-14 Pin
16 UT-STOB-15-3 Housing
17 UT-OB-16 Rubber Brushing
17A UT-OB-16.2 Rubber Brushing
18 UT-70410 Snap Ring
19 UT-OB-18 Bearing (2)
20 UT-STL4-20 Rear Plate
21 OB-20 Rotor Blade (6)
22 UT-L4-22 Rotor
23 UT-OB-23 Pin
24 UT-STOB-22 Cylinder
Ref No Part No Description
25 UT-OB-24 O-Ring
26 UT-STL4-25 Front Plate
27 UT-DL70407 Rotor Key
28 UT-L4-29 Motor Shaft Balancer
29 UT-OB-31.2 Bearing (2)
30 UT-L4-32 Housing Cover
31 UT0OB-36 Screw (4)
32 UT-L4-34 Balancer
33 UT-L4-35 Shaft
34 UT-L4-36 Screw (2)
35 UT-L4-37 Skirt Band
36 UT-STL4-38 Skirt
37 UT-STL4-39 Pad Seat
38 UT-BTL4-40V Pad
39 UT-2HG-52 Screw (2)
40 UT-L4-41 Scew
41 UT-L4-42 Screw (2)
42 U-STL4-44 Spring (2)
43 UT-ST288542 Screw (2)
44 UT-L4-46 Nut (2)
45 UT-L4-44.2 Stopper (2)
46 UT-OB-16.1 Washer
47 UT-81326 Pin
48 UT-L4-45 Dust Hose
49 UT-S560-41.1 Vacuum Adapter
