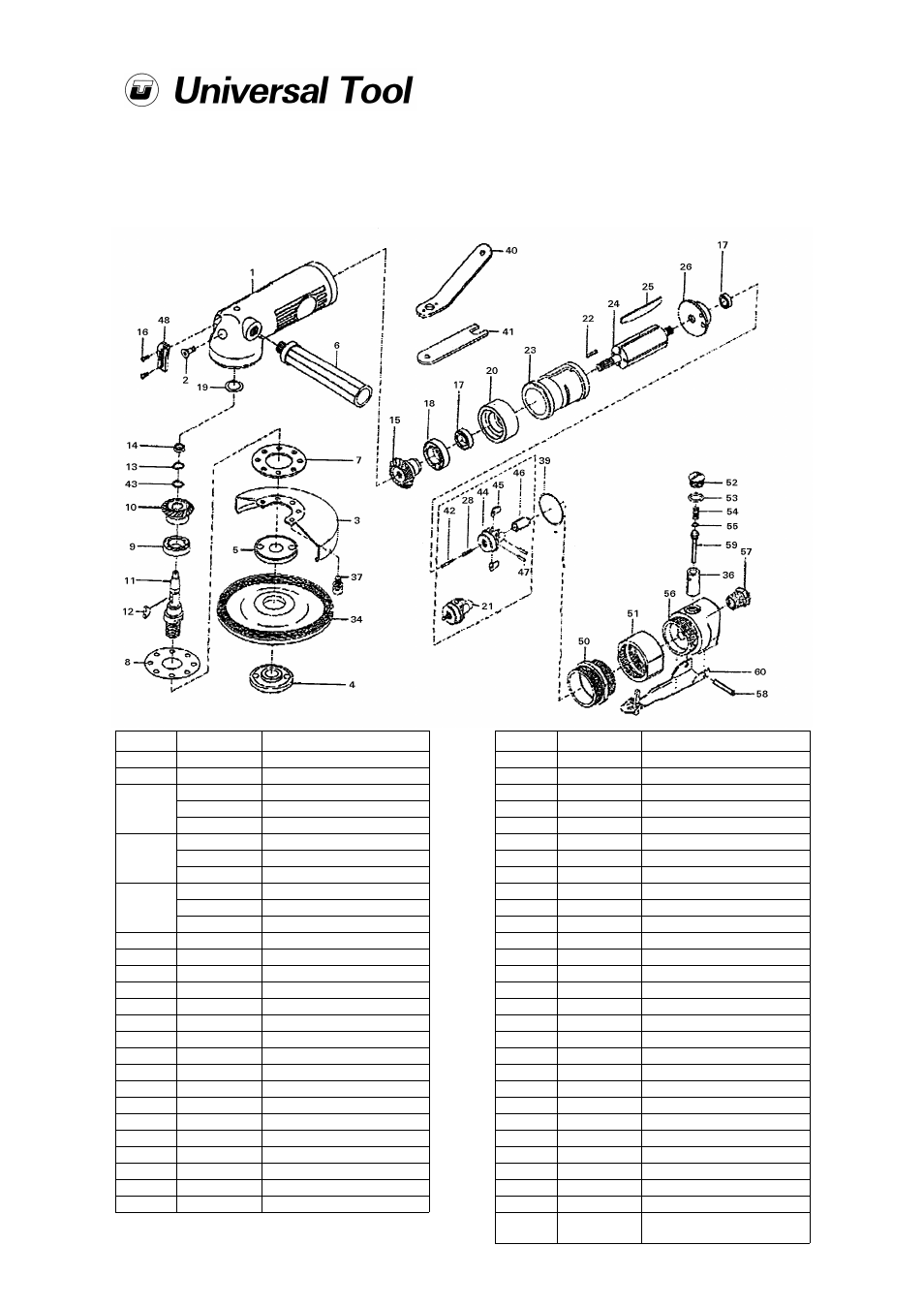

UT8750
UT8750A
UT8750B
4” Disc (100mm) Angle Disc Grinder
4½” Disc (115mm) Angle Disc Grinder
5” Disc (125mm) Angle Disc Grinder
Page No 3
Dec 2006 Ver 1.20
Ref No
Part No
Description
1
250001A
Body
2
250002
Screw
3
250003
Disc Cover (4" Disc)
HA39
Disc Cover (4½" Disc)
HA40
Disc Cover (5" Disc)
4
250004
Disc Nut (4" Disc)
250004-22
Disc Nut (4½" Disc)
250004-22
Disc Nut (5" Disc)
5
250004
Disc Receiver (4" Disc)
250005-22
Disc Receiver (4½" Disc)
250005-22
Disc Receiver (5" Disc)
6
250006
Grip
7
250007
Retainer
8
250008
Gasket
9
250009
Ball Bearing
10
250010
Bevel Gear
11
250011
Gear Shaft
12
250012
Key
13
250013
Reataining Ring
14
250014
Ball Bearing
15
250015
Pinion Gear
16
250016
Screw (2)
17
250017
Ball Bearing (2)
18
250018
Ball Bearing
19
250020
Spacer
20
250021
Front Plate
21
832H01
Governer Assembly
22
250024
Sprint Pin
Ref No
Part No
Description
23
250025
Cylinder
24
250026
Rotor
25
250027
Rotor Blade (4)
26
250028
Rear Plate
28
250030
Spring
34
H0060
Disc Wheel
36
250061A
Valve Bushing
37
250039
Cap Screw (4)
39
250041
O-Ring
40
250042
Disc Spanner
41
250043
Stop Spanner
42
250044
Adjust Screw
43
250045
Wave Washer
44
250046
Governor
45
250047
Pendulum (8)
46
250048
Plunger
47
250049
Spring Pin (2)
48
250050
Exhaust Cover
50
250052
Lock Ring
51
250053
Coupling Ring
52
250054
Valve Screw
53
250055
O-Ring
54
250056
Valve Spring
55
250057
O-Ring
56
250058
Valve Housing
57
250059
Hose Adaptor
58
250060
Spring Pin
59
250061
Valve Pin
60
250062
Complete Lever
Assembly
