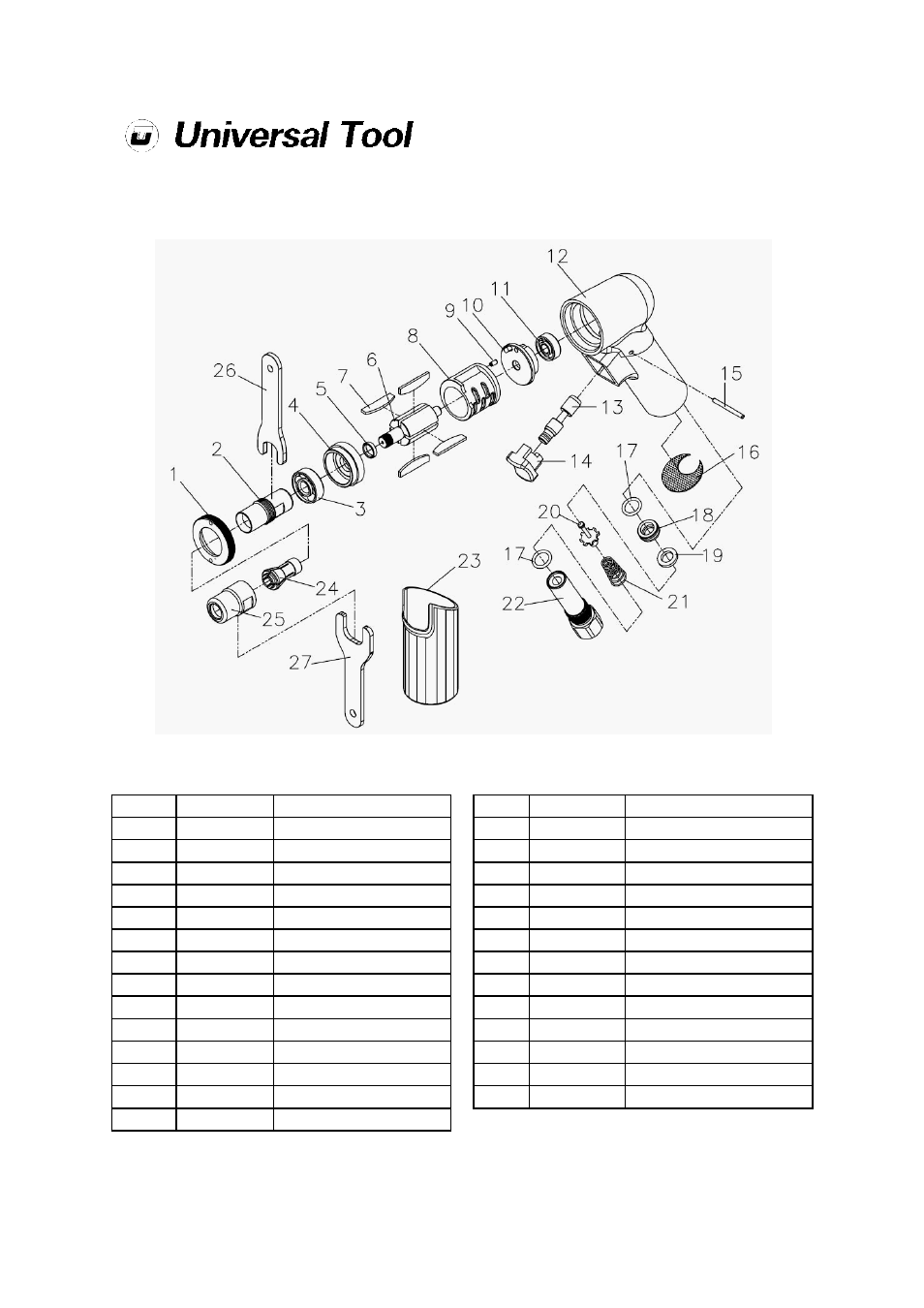

UT8777AC 115 Degree Angle Die Grinder
Page No 3 Dec 2008 Ver 1.0
Ref No Part No Description
1 RL12601 Clamp Nut
2 RL80527 Chuck Spindle
3 RL80524 Ball Bearing
4 RL84625 Front End Plate
5 RL80523 Spindle Collar
6 RL84622 Rotor
7 RL80519J Rotor Blade (4)
8 RL84621 Cylinder
9 RL13035 Roll Pin
10 RL84619 Rear End Plate
11 RL84618 Ball Bearing
12 RL126512PV Housing
13 RL12613 Valve Stem
14 RL50314 Trigger Button
Ref No Part No Description
15 RL12122 Pin
16 RL12616 Muffler
17 RL80515 O-Ring (9.5X1.85mm) (2)
18 RL12618 Bushing
19 RL12127 Throttle Seat
20 RL12128 Throttle Valve
21 RL12129 Throttle Spring
22 RL126221 Air Inlet
23 RL12623NC Comfort Grip
24 RL80528B Collet (6mm)
25 RL80529 Collet Nut
26 RL80530A Wrench 12mm
27 RL80530B Wrench 17mm
