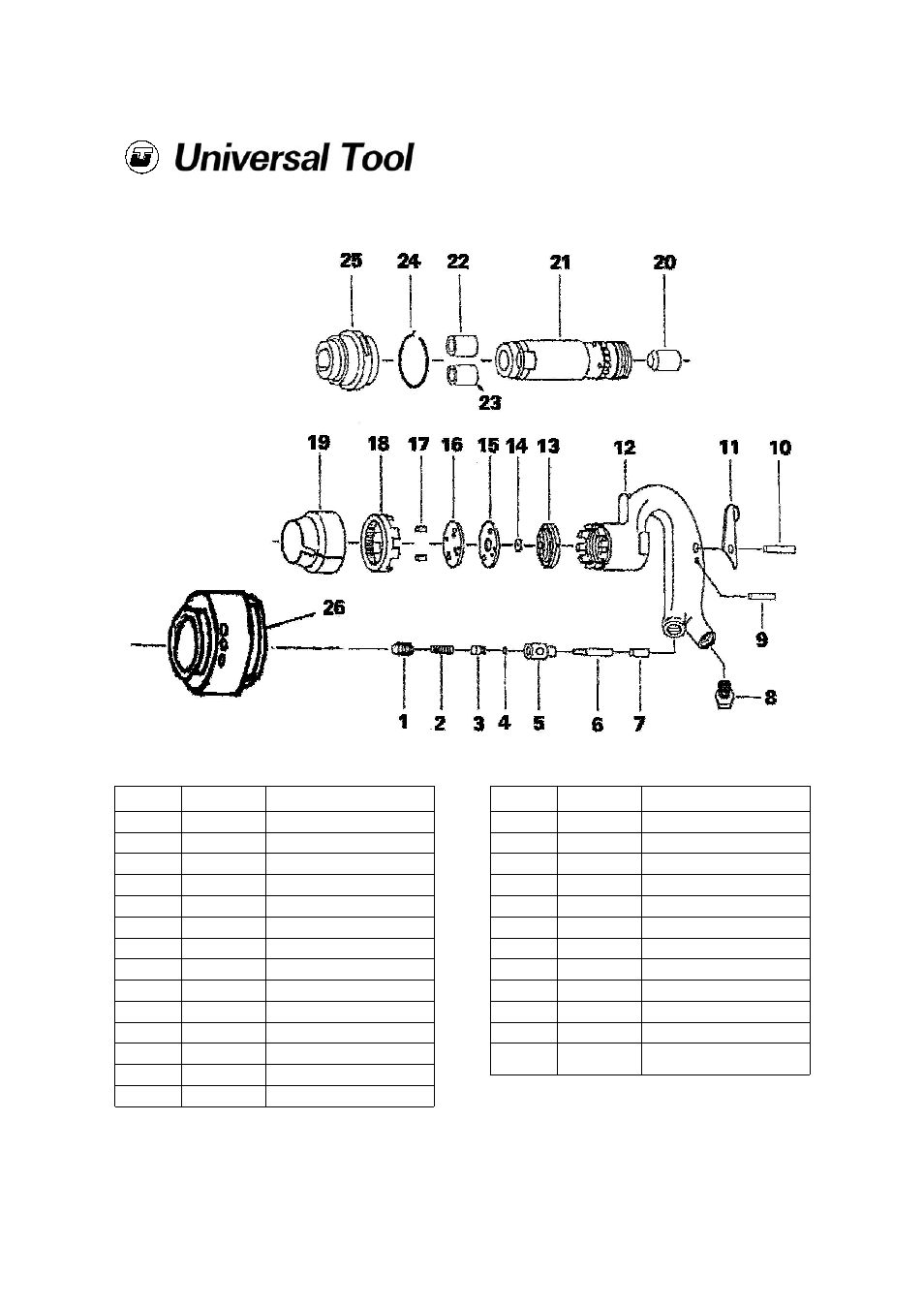

UT8644-H Chipping Hammer
Page No 3
Jun 2005 Ver 1.3
Ref No Part No Description
1 CH410001 Throttle Valve Plug
2 CH410002 Throttle Valve Spring
3 CH410003 Throttle Valve
4 P006020 O-Ring
5 CH410004 Throttle Valve Bushing
6 CH410005 Push Pin
7 CH410006 Push Pin Bushing
8 729562 Hose Adaptor
9 1009786 Stop Pin
10 729563 Throttle Lever Pin
11 729564 Throttle Lever
12 729565 Handle
13 729566 Upper Valve Case Lid
14 729567 Valve
Ref No Part No Description
15 729568 Valve Case
16 729569 Lower Valve Case Lid
17 729571 Dowel Pin (2)
18 729581 Lock
19 729582 Shield Lock
20 729574 Piston
21 729580 Cylinder
22 CH410026 Cylinder Bush - Round
23 731064 Cylinder - Hex
24 729584 Lock Oil Spring
25 729583 Retainer Sleeve
26 101052
Silencer &
2 Jubilee Clips
