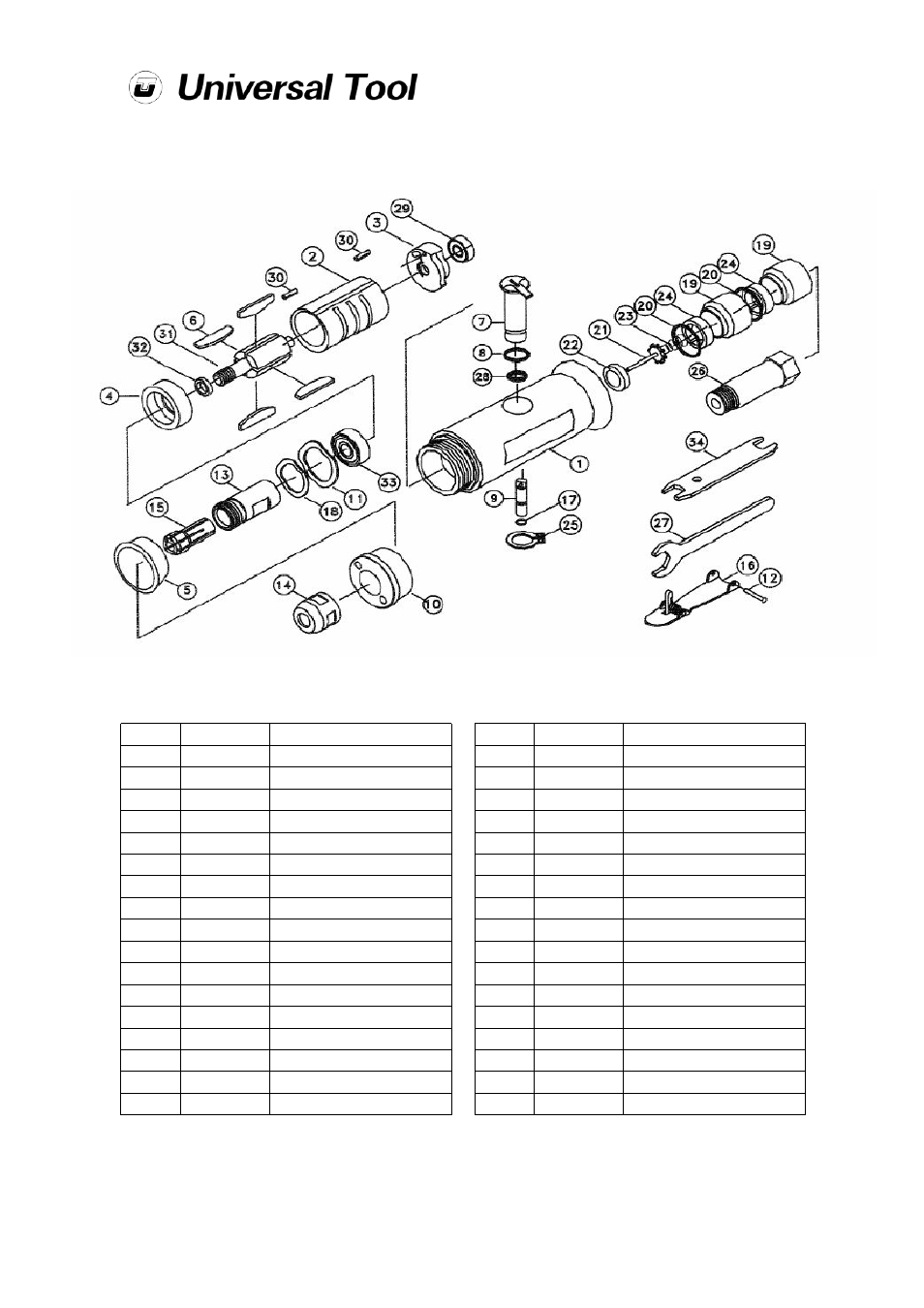

UT5725 Industrial Die Grinder - Straight
Page No 3 Apr 2012 Ver 1.00
Ref No Part No Description
1 5725-01 Motor Housing
2 5725-02 Cylinder
3 5725-03 Rear End Plate
4 5725-04 Front Bearing Plate
5 5725-05 Insulator Collar
6 5725-06 Blade (4)
7 5725-07 Speed Reg.
8 5725-08 O-Ring
9 5725-09 Valve Stem
10 5725-10 Cap
11 5725-11 Wave Washer
12 5725-12 Pin
13 5725-13 Spindle
14 5725-14 Collet Nut
15 5725-15 6mm Collet
16 5725-16 Safety Lever Assembly
17 5725-17 O-Ring
Ref No Part No Description
18 5725-18 Wave Washer
19 5725-19 Muffler Cap (2)
20 5725-20 O-Ring (2)
21 5725-21 Tip Valve
22 5725-22 Seal
23 5725-23 Spring
24 5725-24 Felt Muffler (2)
25 5725-25 Retaining Ring
26 5725-26 Inlet
27 5725-27 Spanner Wrench (19mm)
28 5725-28 O-Ring
29 5725-29 Bearing
30 5725-30 Pin (2)
31 5725-31 Rotor
32 5725-32 Spacer
33 5725-33 Bearing
34 5725-34 Spanner Wrench (14mm)
