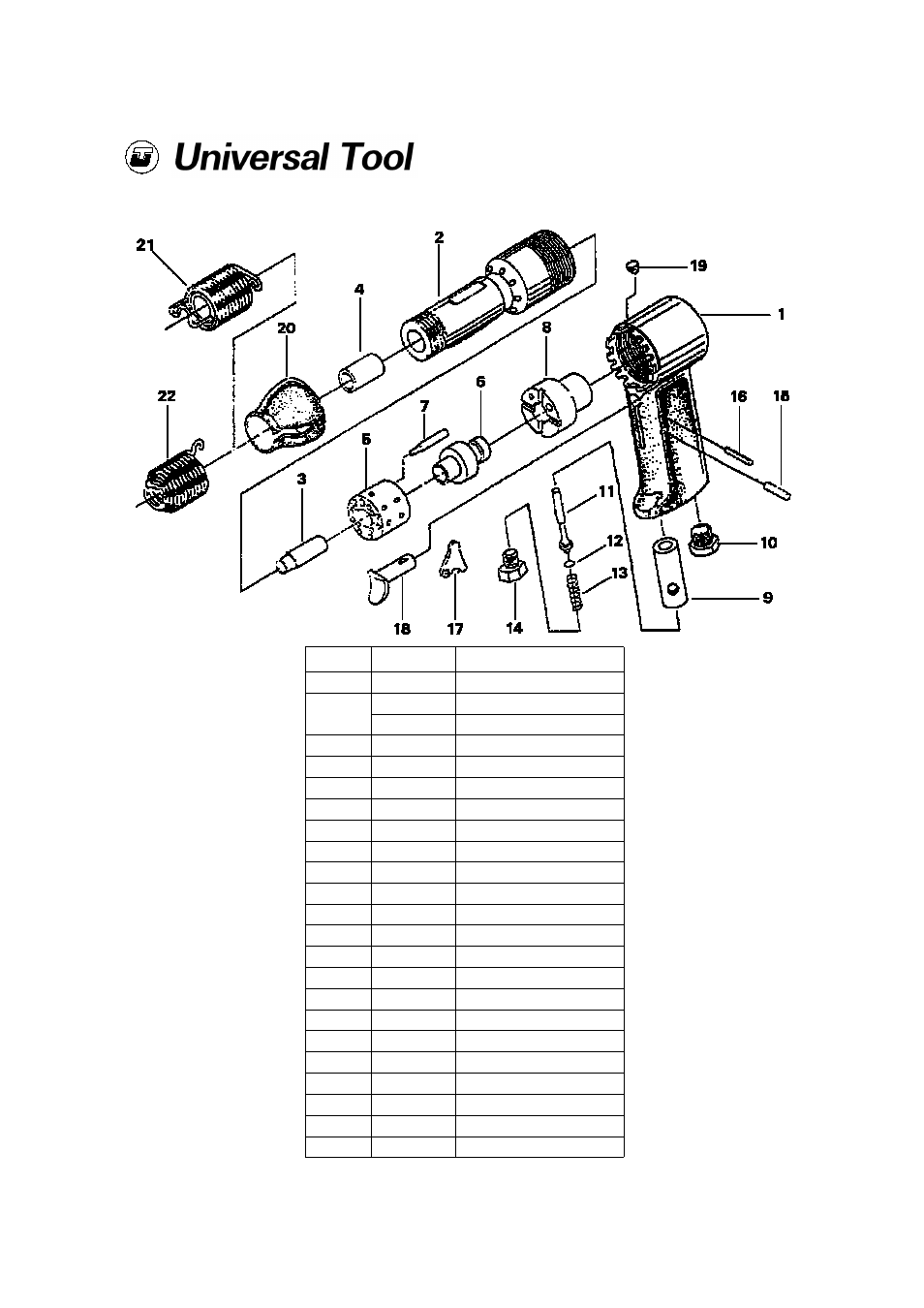

UT049 & UT7X (HP049 & 7X) 0.498” Diameter Shank Air Hammers

Page No 3

Rivet capacity (steel) - UT049 (1/4-6mm) UT7X (5/16 - 8mm)

Jun 2005 Ver 1.5

Ref No

Part No Description

1

853001

Handle

2

853002

Cylinder (3.8" Stroke)

853002A Cylinder (5.8" Stroke)

3

853003

Piston

4

853004

Bush

5

853005

Valve Box

6

853006

Valve

7

853007

Pin

8

853008

Valve Seal

9

853009

Throttle Bush

10

853010

Inlet Bushing

11

853011

Valve Stem

12

853012

O-Ring

13

853013

Spring

14

853014

Plug

15

853015

Lever Roller Pin

16

853016

Handle Knock Pin

17

853017

Assistant Lever

18

853018

Lever

19

853019

Stopper Pin

20

853020

Exhaust Cover

21

853021

Reatiner Spring

22

853022

Bee Hive Spring
