Page No 3

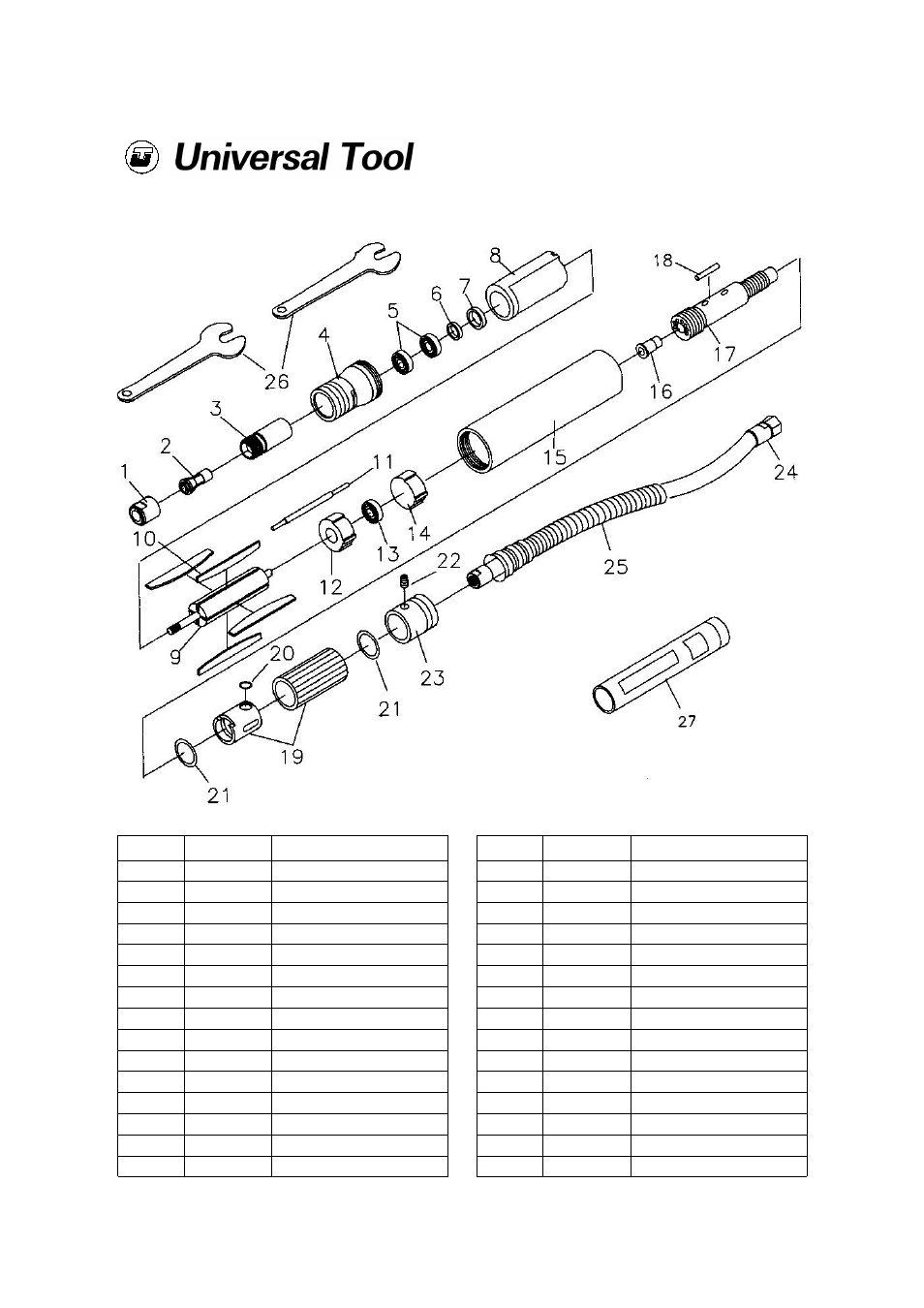

UT1070K

Pencil Die Grinder

Dec 2004 Ver 1.00

Ref No

Part No

Description

16

RL81216

Intake Steel Tube

17

RL81417

Hose Plug

18

RL81218

Short Pin

19

RL81219

Sliding Knob

20

RL81220

O-Ring

21

RL401321 O-Ring (2)

22

RL14019

Screw

23

RL81223

Rear End Holder

24

RL100123CF Air Inlet with Black Hose

25

RL81225C Silencer

26

RL81229

Wrench (2)

27

RL82025FV Comfort Grip

RL81202A Collet (1/8")

RL81202C Collet (1mm)

RLAG002M 3mm Grinding Sone Set

Ref No

Part No

Description

1

RL81201

Clamping Nut

2

RL81202B Collet (3mm)

3

RL81203

Chuck Spindle

4

RL81204

Collet Foundation

5

RL81205AG Ball Bearing (2)

6

RL81206

Spacer

7

RL81207

Lateral Disc

8

RL81408

Cylinder

9

RL81209A Rotor

10

RL81210

Rotor Blade (4)

11

RL81211

Long Pin

12

RL81412

Bearing Plate

13

RL81213AG Ball Bearing

14

RL81414

Intake Plate

15

RL812151 Body
