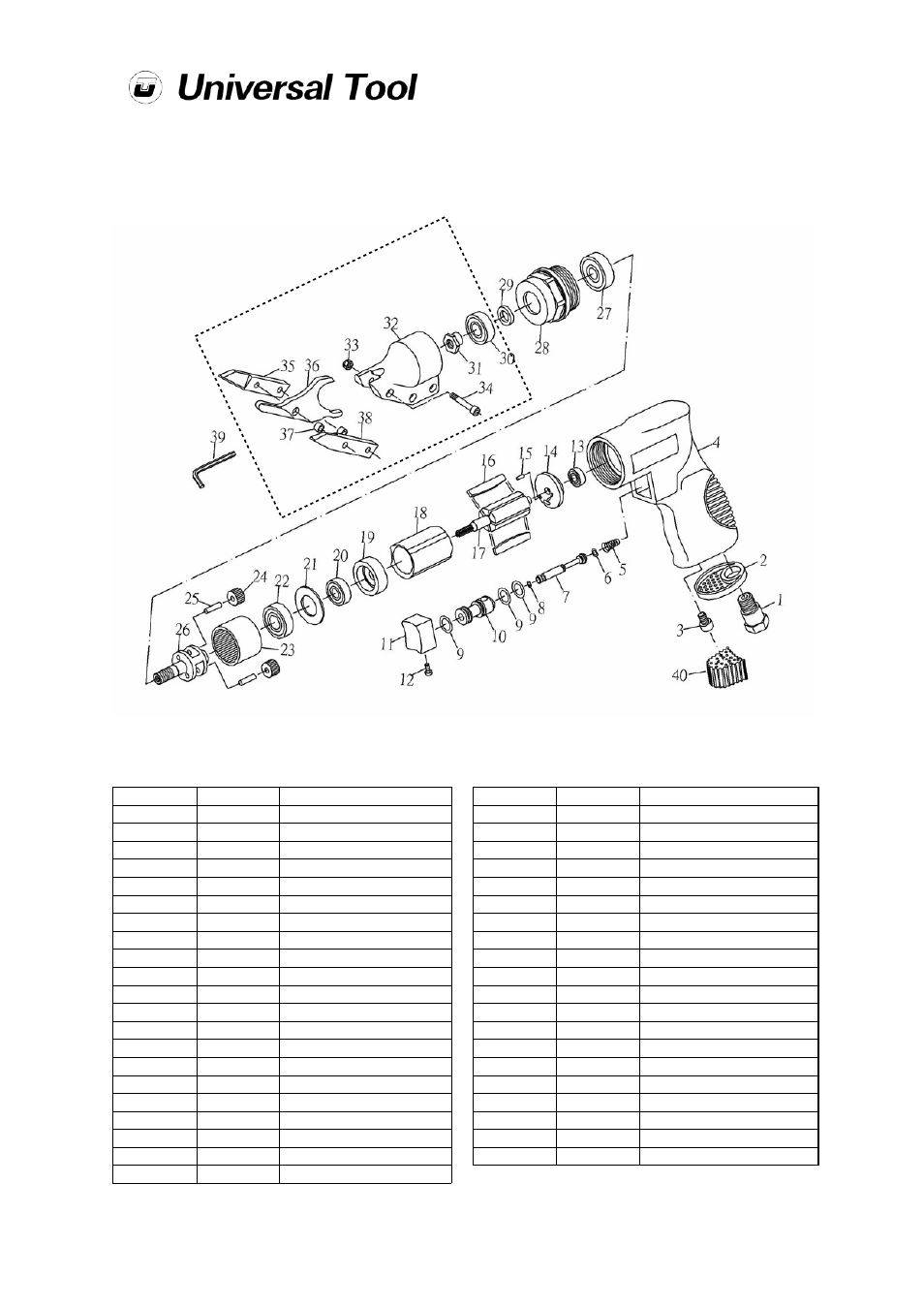

Universal Air Tools UT8606 - Manual (Page 3)

Page No 3
UT8606
Aug 2013 Ver 1.00
Ref No Part No Description
1 8606-01 Air Inlet
2 8606-02 Exhaust Sleeve
3 8606-03 Screw
4 8606-04 Housing
5 8606-05 Spring
6 8606-06 O-Ring
7 8606-07 Valve Stem
8 8606-08 O-Ring
9 8606-09 O-Ring (3)
10 8606-10 Valve Body
11 8606-11 Trigger
12 8606-12 Screw
13 8606-13 Bearing
14 8606-14 Rear Plate
15 8606-15 Pin
16 8606-16 Rotor Blade (5)
17 8606-17 Rotor
18 8606-18 Cylinder
19 8606-19 Front Plate
20 8606-20 Bearing
21 8606-21 Washer
Ref No Part No Description
22 8606-22 Bearing
23 8606-23 Gear Link
24 8606-24 Idler Gear (2)
25 8606-25 Pin (2)
26 8606-26 Gear Plate
27 8606-27 Bearing
28 8606-28 Clamp Nut
29 8606-29 Washer
30 8606-30 Bearing
31 8606-31 Excentric Nut
32 8606-32 Cutter Housing
33 8606-33 Nut (3)
34 8606-34 Lock Screw (3)
35 8606-35 Right Blade
36 8606-36 Center Blade
37 8606-37 Spacer (2)
38 8606-38 Left Blade
HA 8606-HA Shear Head Assembly Inc. #30-38
39 8606-39 Hex
40 8606-40 Muffler
She
ar He
ad
Asse
mb
ly (HA)
Pistol Shear
