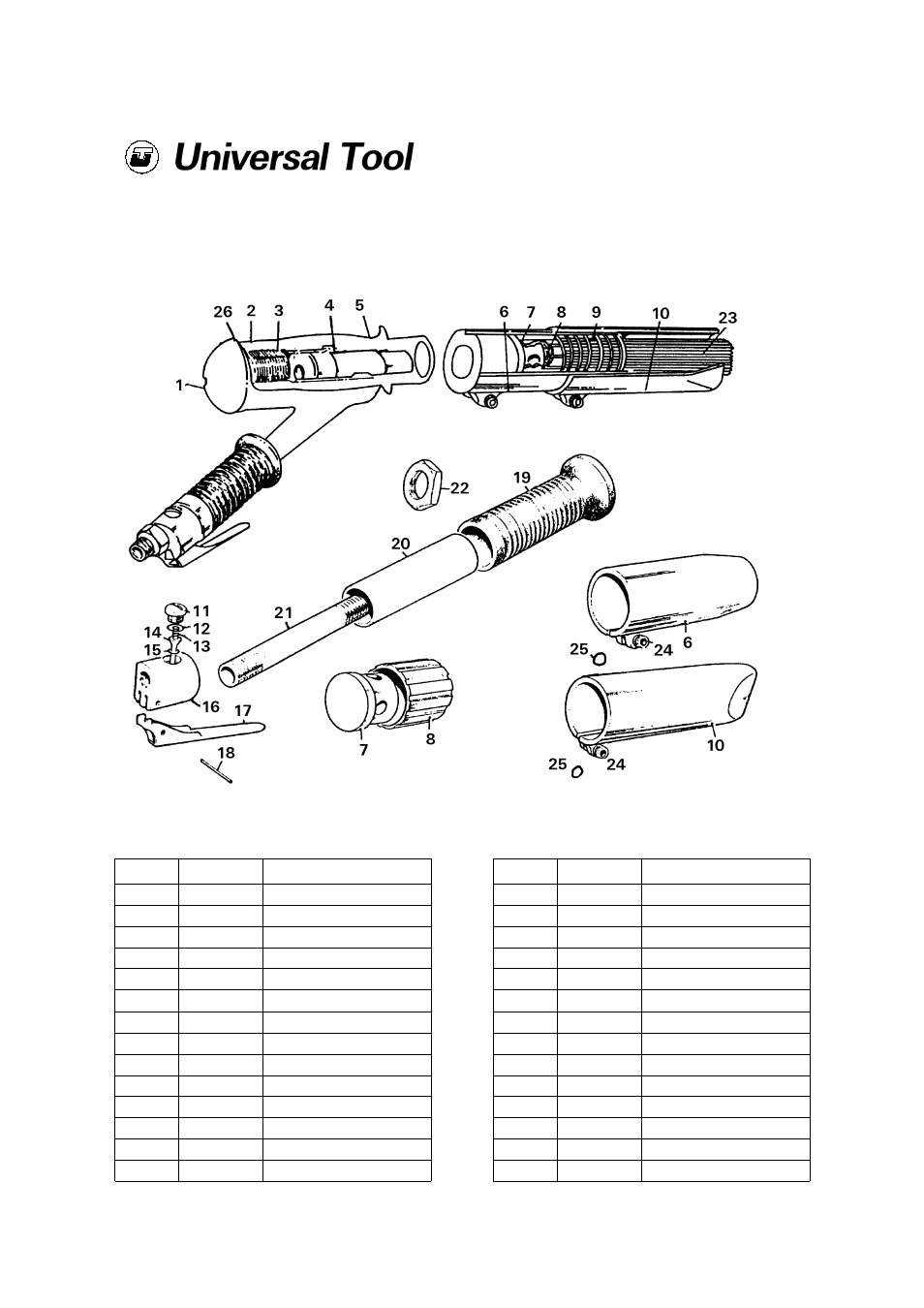

UT53NG Pistol Needle Gun
Page No 3
Nov 2004 Ver 1.02
Ref No Part No Description
1 500301 Body Cap
2 500302 Body
3 500303 O-Ring
4 500304 Cylinder
5 500305 Piston
6 500306 Needle Cover
7 500307 Driver
8 500308 Needle Holder 3mm
9 500309 Spring
10 500310 Needle Cover
11 500311 Valve Screw
12 500312 O-Ring
13 500313 Spring
14 500314 Valve Stem
Ref No Part No Description
15 500315 O-Ring
16 500316 Valve Body
17 500317 Lever
18 500318 Pin
19 500319 Rubber Handle Grip
20 500320 Handle Tube
21 500321 Centre Tub
22 500322 Nut
23 500323 Needle 3mm (28)
24 500324 Cap Head Screw (2)
25 500325 Washer
26 500326 O-Ring
27 500327 Needle 4mm (19)
28 500328 Needle Holder
