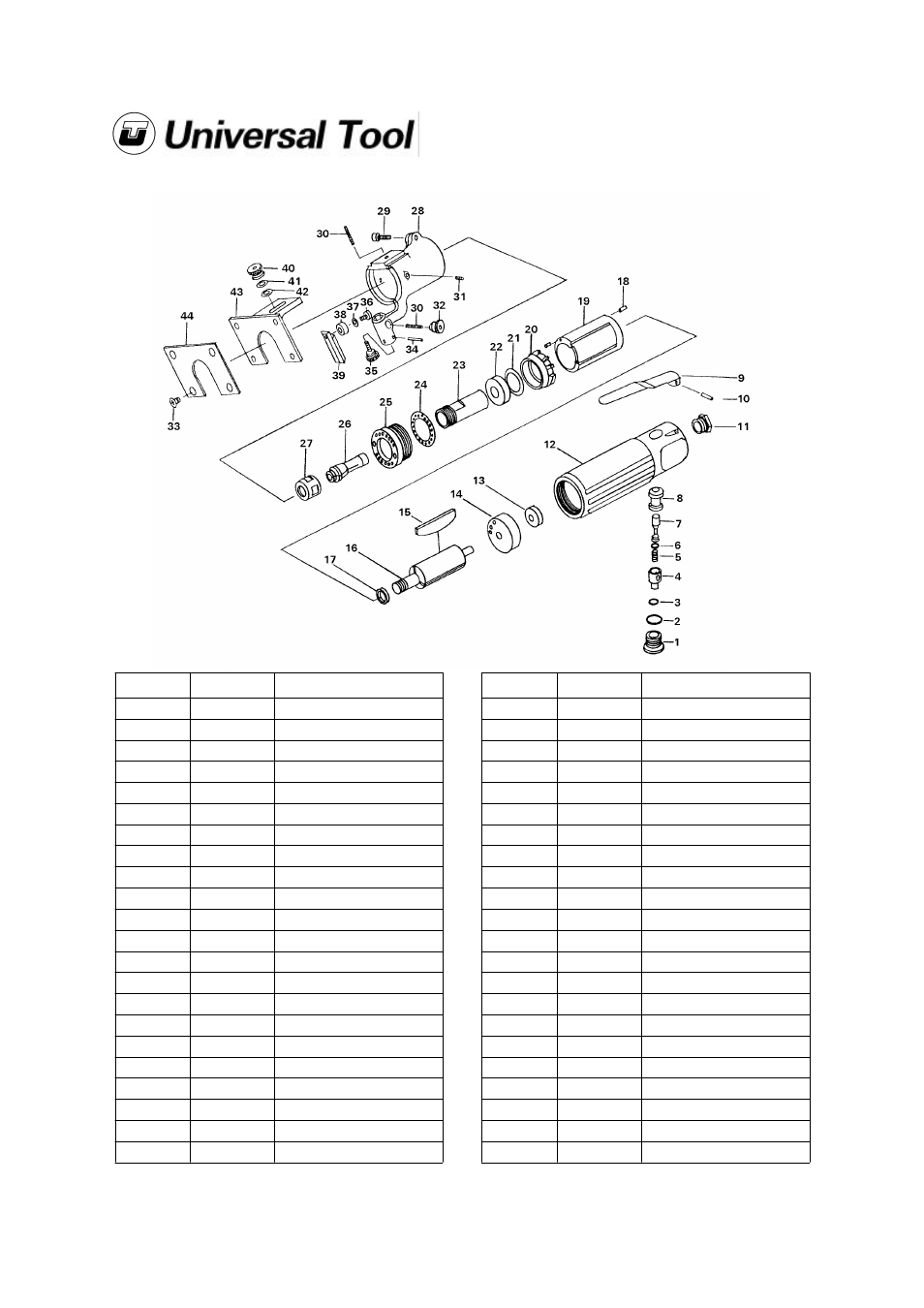

UT1054 Laminate Trimmer
Page No 3 Jan 2002 Ver 1.1
Ref No Part No Description
1 729262 Throttle Valve Screw
2 729073 O-Ring
3 729088 O-Ring
4 729282 Regulator
5 729258 Throttle Valve Spring
6 1012370 O-Ring
7 729259 Throttle Valve
8 729261 Throttle Valve Bushing
9 900578 Throttle Lever
10 729167 Pin
11 729162 Air Inlet
12 900579 Motor Housing
13 1010183 Ball Bearing
14 900580 Rear End Plate
15 729709 Rotor Blade
16 900581 Rotor
17 729711 Rotor Spacer
18 729707 Pin (2)
19 729708 Liner (Cylinder)
20 900582 Front End Plate
21 729714 Motor Shim
22 729113 Ball Bearing
Ref No Part No Description
23 729715 Spindle
24 900583 Silencer
25 900584 Locking Nut
26 92233 Collet (1/4")
27 729719 Collet Nut
28 900585 Trimmer Housing
29 900339 Cap Screw
30 900586 Screw
31 900587 Set Screw (2)
32 900588 Clamp Screw
33 900589 Screw (4)
34 900590 Pin (2)
35 900591 Adjust Screw
36 900592 Screw
37 900593 Washer
38 900594 Ball Bearing
39 900595 Adjust Bar
40 900596 Nut
41 900066 Washer
42 900597 Washer
43 900598 Shoe
44 900599 Shoe Plate
