UT180R
UT190R 1/4” Air Hydraulic Blind Riveter
3/16” Air Hydraulic Blind Riveter

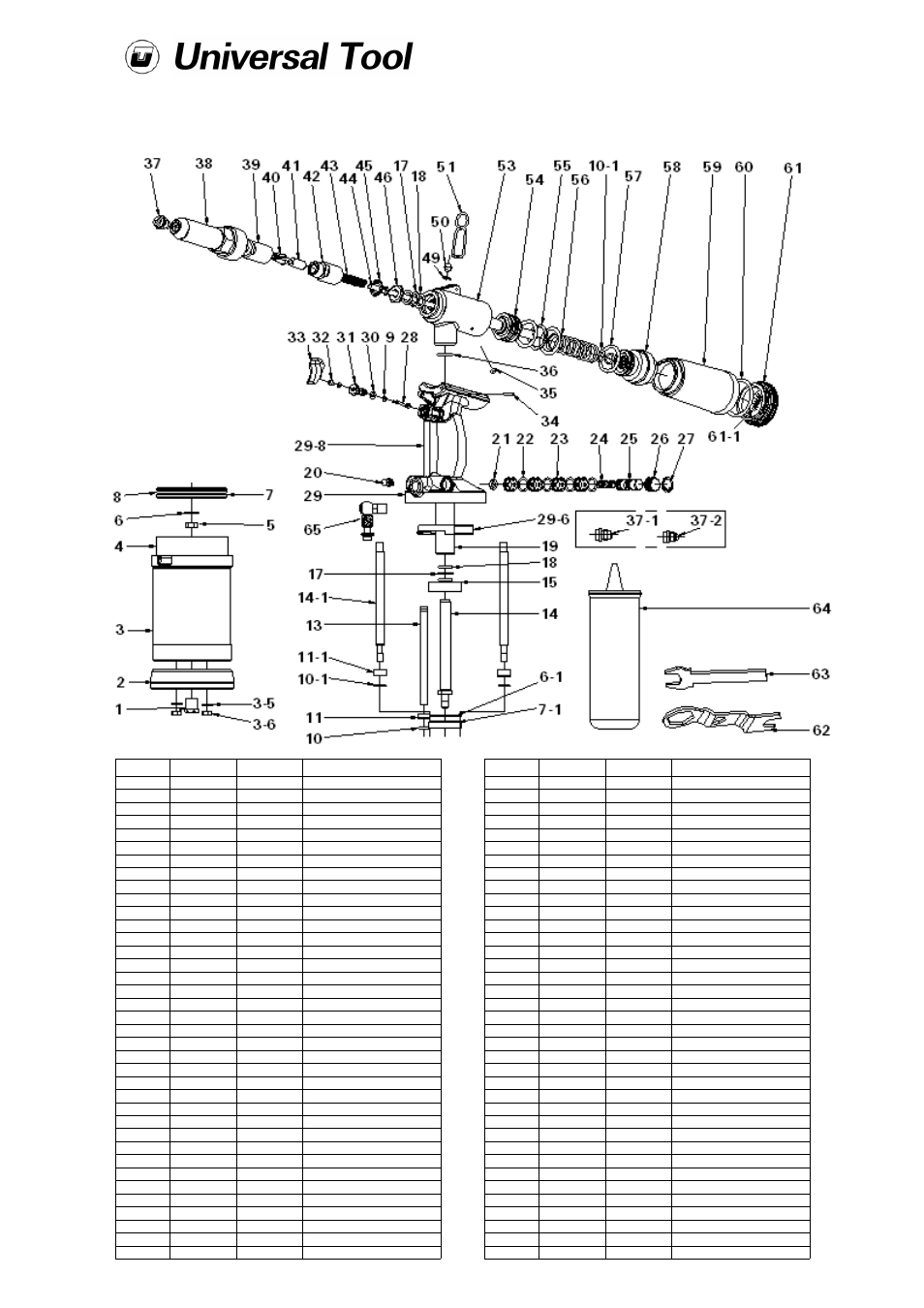

Page No 3 Mar 2006 Ver 1.00
Ref No UT180R UT190R Description
1 1800001 1800001 Safety Valve Assembly
2 1800002 1800002 Rubber Bottom
3 1800003 1800003 Air Cylinder Body
3-5 1800305 1800305 Washer (2)
3-6 1800306 1800306 Nut (2)
4 1800004 1800004 Liner
5 1800005 1900005 Nut
6 1800006 1800006 Washer
6-1 1800601 1800601 Washer
7 1800007 1800007 Air Piston
7-1 1800701 1800701 Crashworthy Washer
8 1800008 1800008 O-Ring
9 1800009 1800009 O-Ring (2)
10 1800010 1800010 O-Ring
10-1 1801001 1801001 O-Ring (2)
11 1800011 1800011 O-Ring Depressor
11-1 1801101 1801101 O-Ring Depressor (2)
13 1800013 1800013 Tube
14 1800014 1800014 Rod
14-1 1801401 1801401 Rod (2)
15 1800015 1800015 Stem Nut
17 1800017 1800017 Backup-Up Ring (2)
18 1800018 1900018 O-Ring (4)
19 1800019 1800019 Stem
20 1800020 1800020 Muffler
21 1800021 1800021 Pad
22 1800022 1800022 O-Ring (4)
23 1800023 1800023 Cage (4)
24 1800024 1800024 Spring
25 1800025 1800025 Valve
26 1800026 1800026 Valve Cap
27 1800027 1800027 Reatining Ring
28 1800028 1800028 Valve Piston
29 1800029 1800029 Handle Body
29-6 1802906 1802906 Nut Stand
29-8 1802908 1802908 Handle Sheath
30 1800030 1800030 O-Ring
Ref No UT180R UT190R Description
31 1800031 1800031 Trigger Insert
32 1800032 1800032 Trigger Head
33 1800033 1800033 Trigger
34 1800034 1800034 Spring Pin
35 1800035 1800035 O-Ring
36 1800036 1800036 O-Ring
37 1800037 1900037 Nosepiece (3/16")
37-1 1803701 1903701 Nosepiece (5/32")
37-2 1803702 1903702 Nosepiece (1/8")
37-3 1903703 Nosepiece (3/32")
38 1800038 1900038 Frame Head
39 1800039 1900039 Jaw Case Front Tart
40 1800040 1900040 Jaw (3)
41 1800041 1900041 Jaw Pusher
42 1800042 1900042 Jaw Pusher Coupler
43 1800043 1900043 Spring
44 1800044 1900044 Piston Shaft
45 1800045 1800045 Case Washer
46 1800046 1800046 Case Lock Nut
49 1800049 1800049 Oil Seal Washer
50 1800050 1800050 Hexagon Socket Screw
51 1800051 1800051 Hook
52 1900052 Spring
53 1800053 1900053 Oil Cylinder Body
54 1800054 1900054 Piston Rod II
55 1800055 1900055 Bu-Ring
56 1800056 1900056 O-Ring (2)
57 1800057 1900057 O-Ring
58 1800058 1900058 Frame Cap Nut
59 1800059 1800059 Spent Mandrel Bottle
60 1800060 1800060 O-Ring
61 1800061 1800061 Mandrel Bottle Adaptor
61-1 1806101 1806101 Silencer
62 1800062 1900062 Spanner
63 1800063 1900063 Spanner Cage
64 1800064 1800064 Oil Can
65 1800065 1800065 Shutoff Valve
