3 7
C
URRENCY
H
ANDLING
2. Level the note pile. Compress the
notepile slightly by hand. Single
notes must not protrude from the
bundle. (Figure 4-12)
3. Move the pusher plate against the
notes with just enough pressure
to hold the notes in the correct po-
sition when closing the lid and in-
serting the cassette into the mecha-
nism. (Figure 4-13)

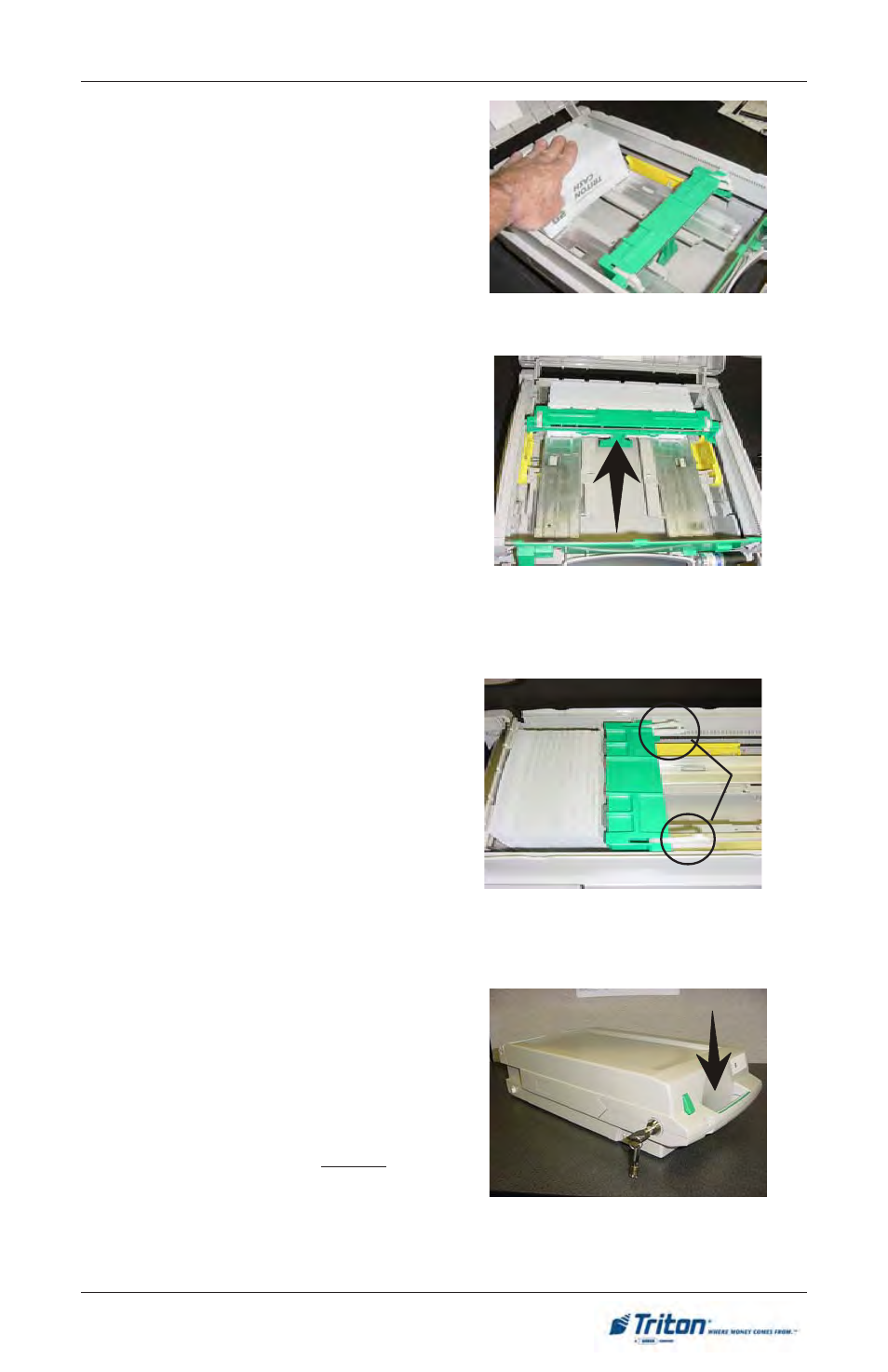

Figure 4-12. Leveling note pile.
Figure 4-13. Moving pusher plate
against notes.
4. Move the white plastic levers
(Pawls) on the pusher plate to their
fully extended position. This will
allow the pusher plate to retract
and releave pressure from the note
stack when an unlock command is
sent to the dispenser. (Fig. 4-14)
5. Close the cassette lid. Fold the lid
down to its locked position. The
release button should “pop” out,
allowing the lid to mate cleanly with
the body of the cassette. You may
need to “tap” the lid firmly along
the front edge to achieve this. Turn
the key counter-clockwise to lock
the cassette. (Figure 4-15)
I
NSTALLING
N
OTE
C
ASSETTES
Using the reverse of the steps used to
remove the note cassette from the
mechanism, slide the note cassette into
its slot in the mechanism. Keep the cas-
sette level as you load it, and make sure
the cassette is fully inserted. Once all
cassettes have been filled and rein-
serted, they are ready to be Locked into
position following the Cassette Close
function prompts. (see Section 5, Man-
agement Functions, for the appropriate
procedure).
Figure 4-14. “Pawls” extended.
Figure 4-15. Closing lid.
