Triton ARGO Installation Manual - Manual (Page 12)

12
ARGO I
NSTALLATION
M
ANUAL
1 Top Function
Key
47”
[1193mm]
2 #5 Key
(Main Keypad)
36 1/2’’
[928mm]
3 Card Reader 39 1/8”
[994mm]
4 Receipt Printer 38 5/16”
[974mm]
5 Bill Tray 25 5/8”
[651mm]
Feature Height

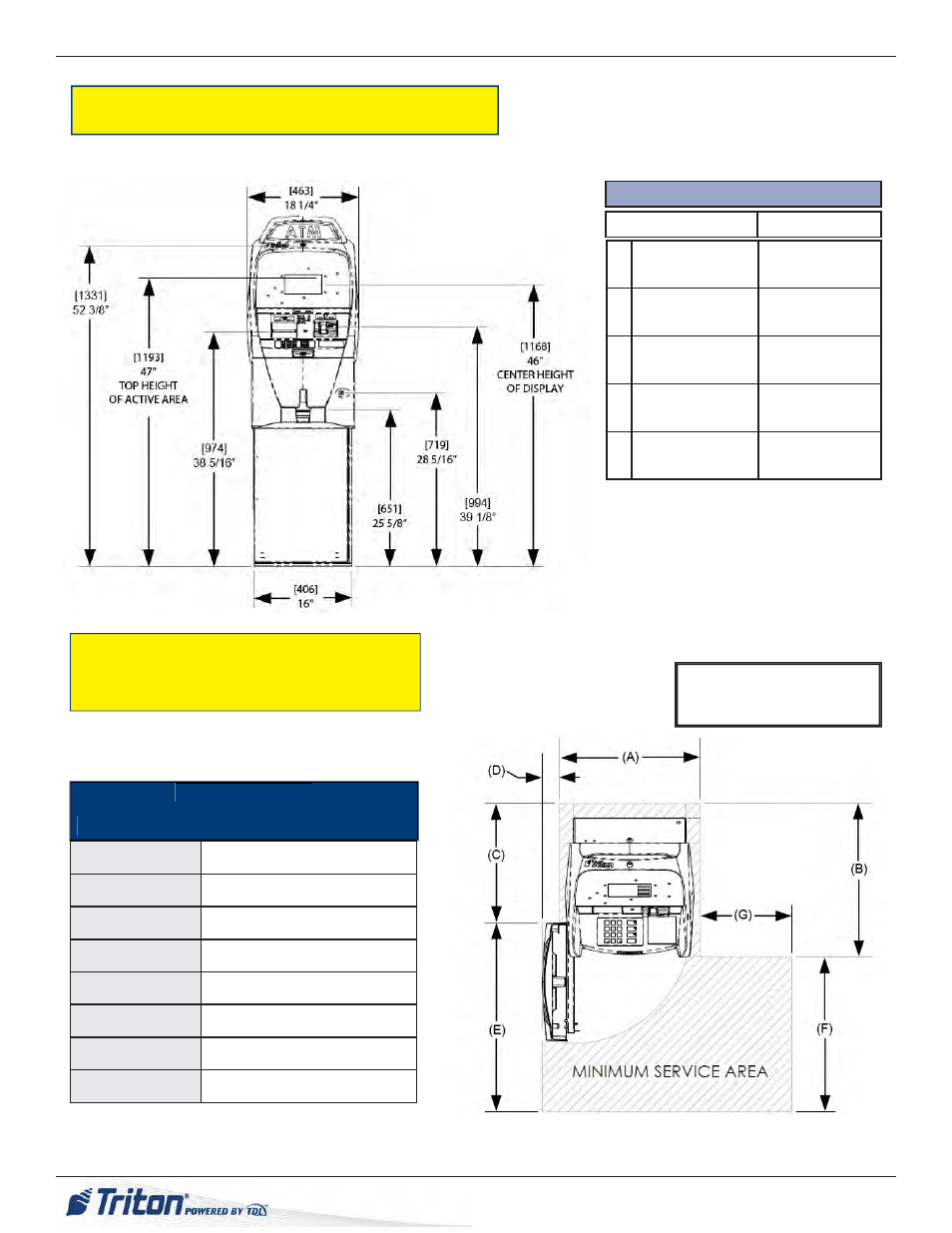

Customer Access Dimensions
S
HALLOW
C
ABINET
F
RONT
V
IEW
S
HALLOW
C
ABINET
S
ERVICE
A
REA
D
IMENSIONS
Dimension Business Hours
A 20 1/16” [510]
B 21 3/4” [553]
C 16 15/16” [430]
D 2 3/8” [60]
E 26 7/8” [682]
F 22” [559]
G 13” [330]
Dimensions
Shown in inches/millimeters
i i
2” [51] clearance around
cabinet sides and rear
