Vehicle harness circuit diagram, Model # sp-9300 – SnowEx SP-9300 User Manual
Page 22
L1218 © Trynex International 2009
MAX — 22

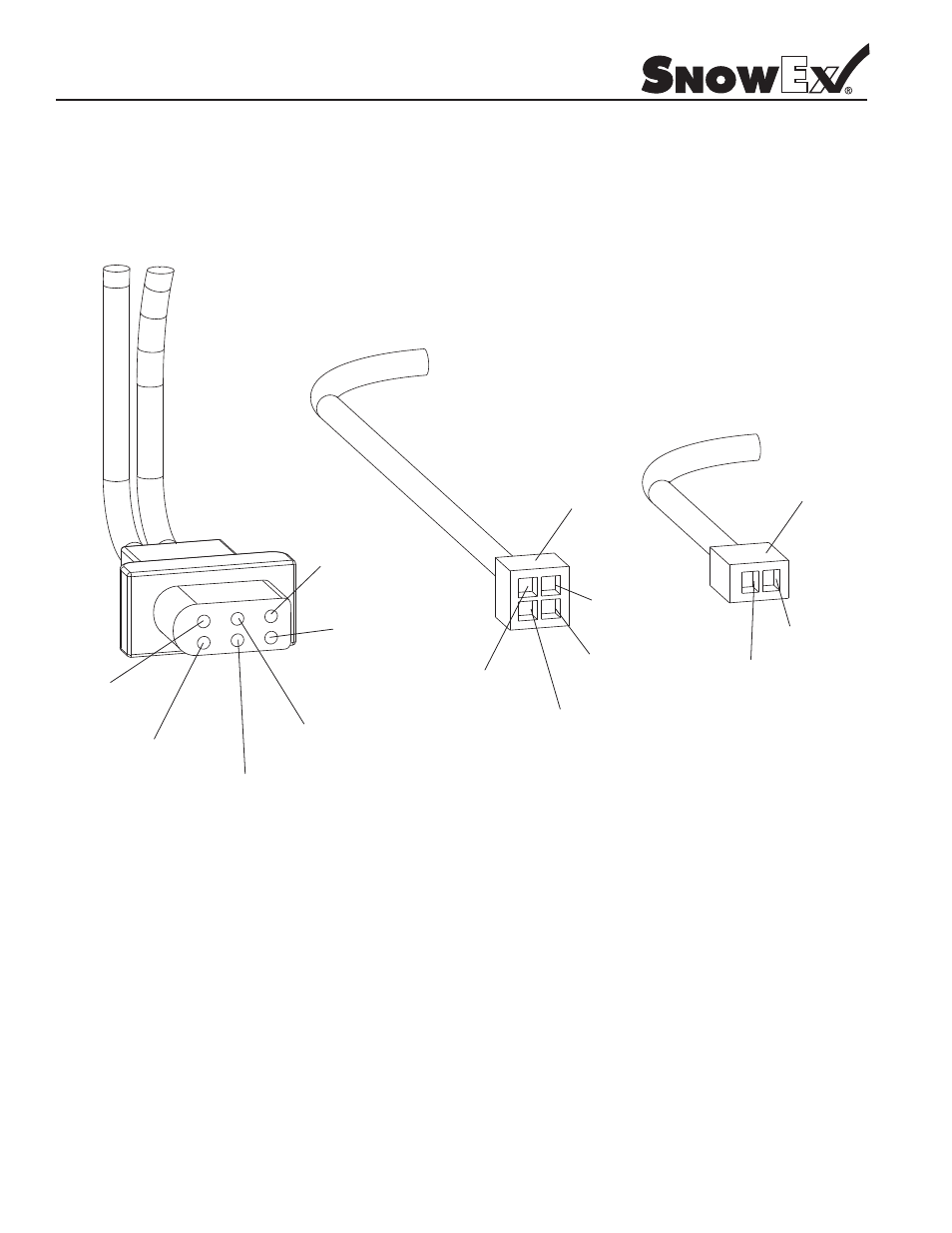

Vehicle Harness Circuit Diagram
Model # SP-9300
VIBRATOR
Yellow Positive (+)
VIBRATOR
Green Negative (–)
SPINNER
Orange Negative (–)
SPINNER
Blue Positive (+)
AUGER
Red Positive (+)
AUGER
Black Negative (–)
Red
Positive (+)
Black
Negative (–)
Anderson
Block
(2) Pos
Anderson
Block
(4) Pos
VIBRATOR OUTPUT
Yellow Positive (+)
VIBRATOR OUTPUT
Green Negative (–)
SPINNER OUTPUT
Blue Positive (+)
SPINNER OUTPUT
Orange Negative (–)
BUMPER
PLUG
CONTROL
OUTPUT PLUG
SPINNER/VIBRATOR
CIRCUIT
AUGER
CIRCUIT
OUTPUT
* NOTE: Reference Bumper Plug for Color Code
