© Trynex International 2009 L1186

8 — 23

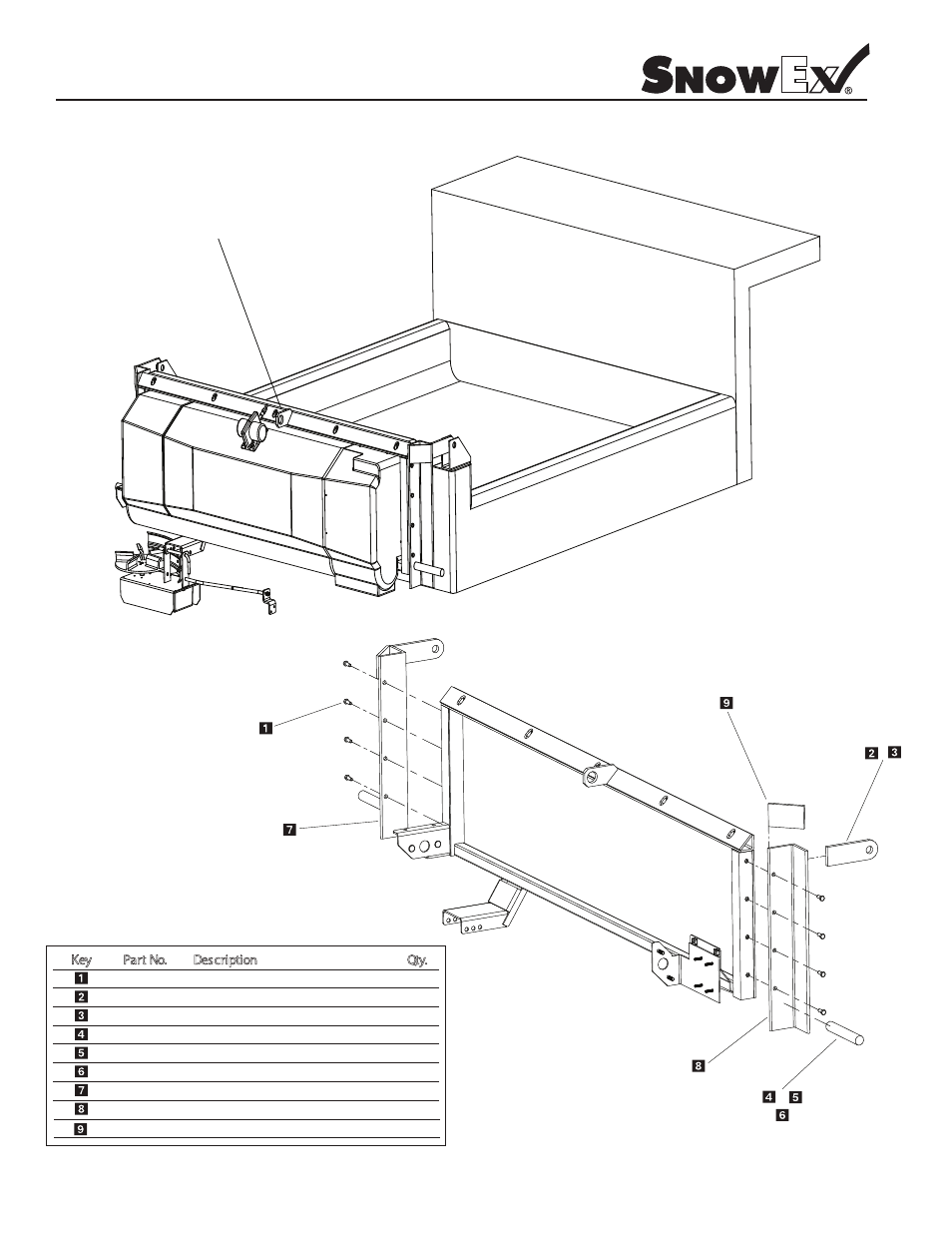

Mounting System Exploded View

Model # UMK-175

.y

t

Q

n

o

it

p

ir

c

s

e

D

.

o

N

t

r

a

P

y

e

K

D 4122

3/8”-16 x1-1/2” Hex Bolt

8

D 5735 Right Hand Main Bracket 1

D 5728

Upper Pin Bracket w/1.125 Hole 2

D 5729

Upper Pin Bracket W/1.0 Hole 2

D 5730

Lower Weld On Pin 1.250 Dia 2

D 5731

Lower Weld On Pin 1.0 Dia 2

D 5732

Lower Weld On Pin .750 Dia 2

D 5734

Left Hand Main Bracket

1

D 5736 Upper Gussett 2

Central Lift Point
