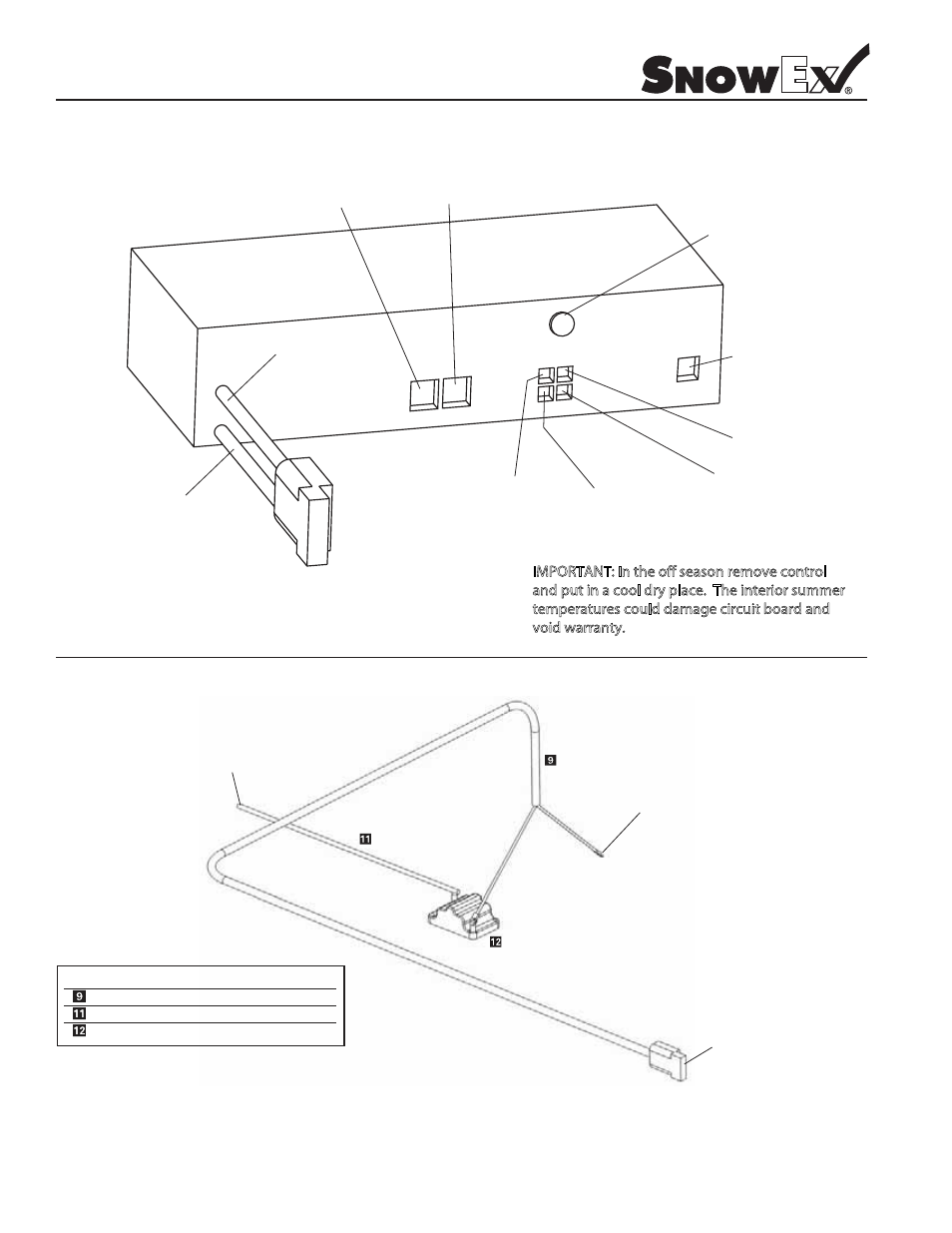

Controller Wiring Diagram
Black
Negative (–)
Vibrator
Red Positive (+)
Vibrator
Black Negative (–)
Spinner
Red Positive (+)
Spinner
Black Negative (–)
MAIN INPUT
POWER
OUTPUT
Red
Positive (+)
Auger
Black Negative (–)
Auger
Red Positive (+)
20 Amp
Circuit Breaker
Pre-Wetting System
Output Data Port
20
Connect to control
mating half
Positive
White with Red Tracer (+) to battery
Ring Terminal
Negative
Black (–) to battery
Ring Terminal
* NOTE:
A) Leads must only be attached to battery.
B) 100 Amp breaker must be inserted.
Control Power Cable
Key Part No. Description Qty.
D 6837 Control Power Cable 1
D 6839 6 GA. Breaker Wire 1
D 6851 100 AMP Resetable Breaker 1
IMPORTANT: In the off season remove control
and put in a cool dry place. The interior summer
temperatures could damage circuit board and
void warranty.
