Seed Hawk

Manual Calibration Guide

The meter needs to be primed before calibration begins to
ensure full product flow during calibration.

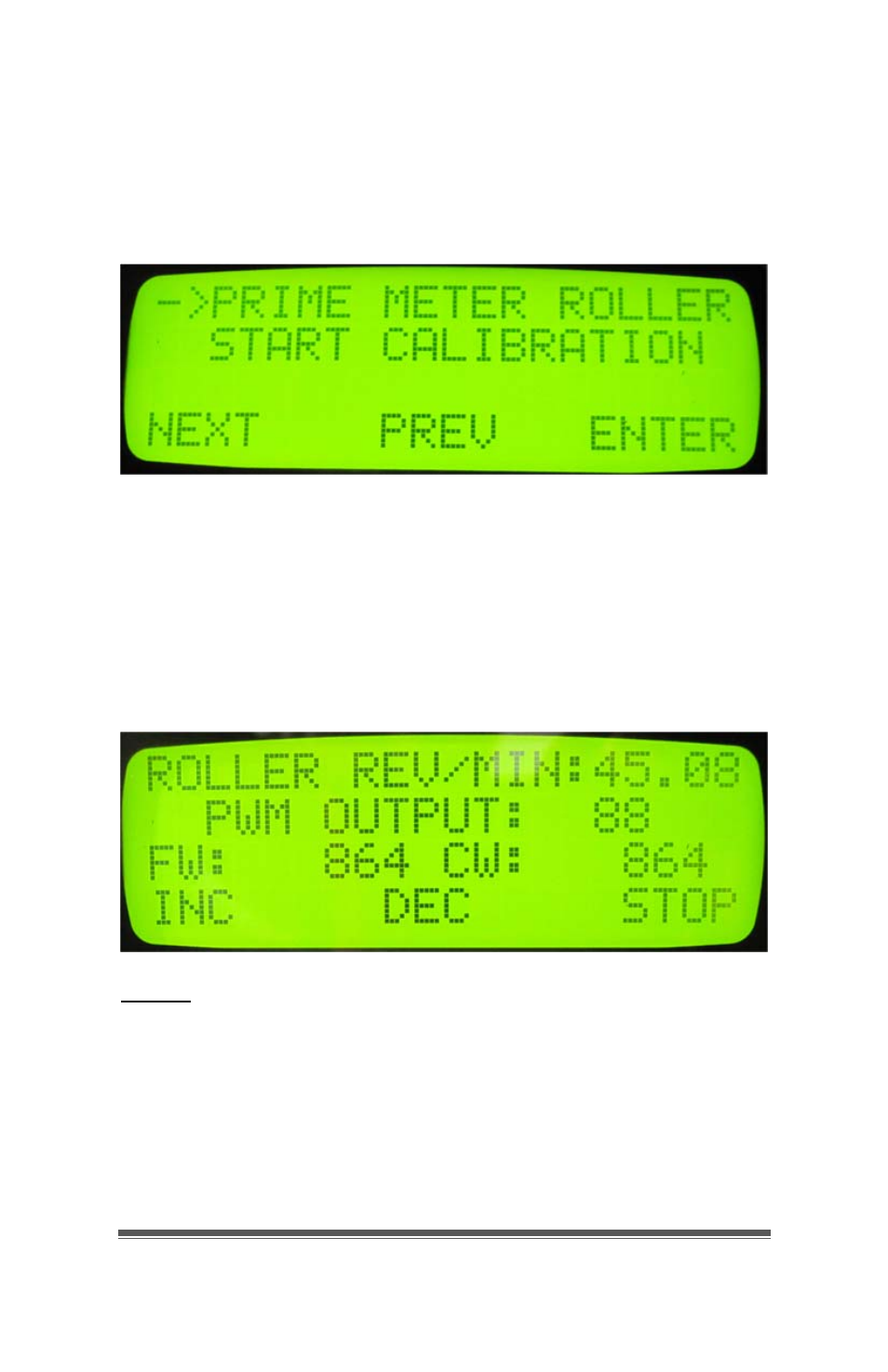

Select “PRIME METER ROLLER” to prime the meter.

Press the “INC” button to increase the PWM output this will
increase the speed of the roller. Use the “INC” and “DEC”
buttons to achieve the desired roller RPM.
Reference the RPM Chart to get an approximate RPM the roller
will be turning during seeding.
Once the meter is primed (at least 2 revolutions) select “STOP”.
Empty the product caught and reposition the calibration bucket
under the meter

NOTE: It is important to calibrate as close to the actual seeding
RPM of the roller. Reference the “Meter RPM Chart” to get an
approximate roller RPM for the specific roller and drill width.
