78 •

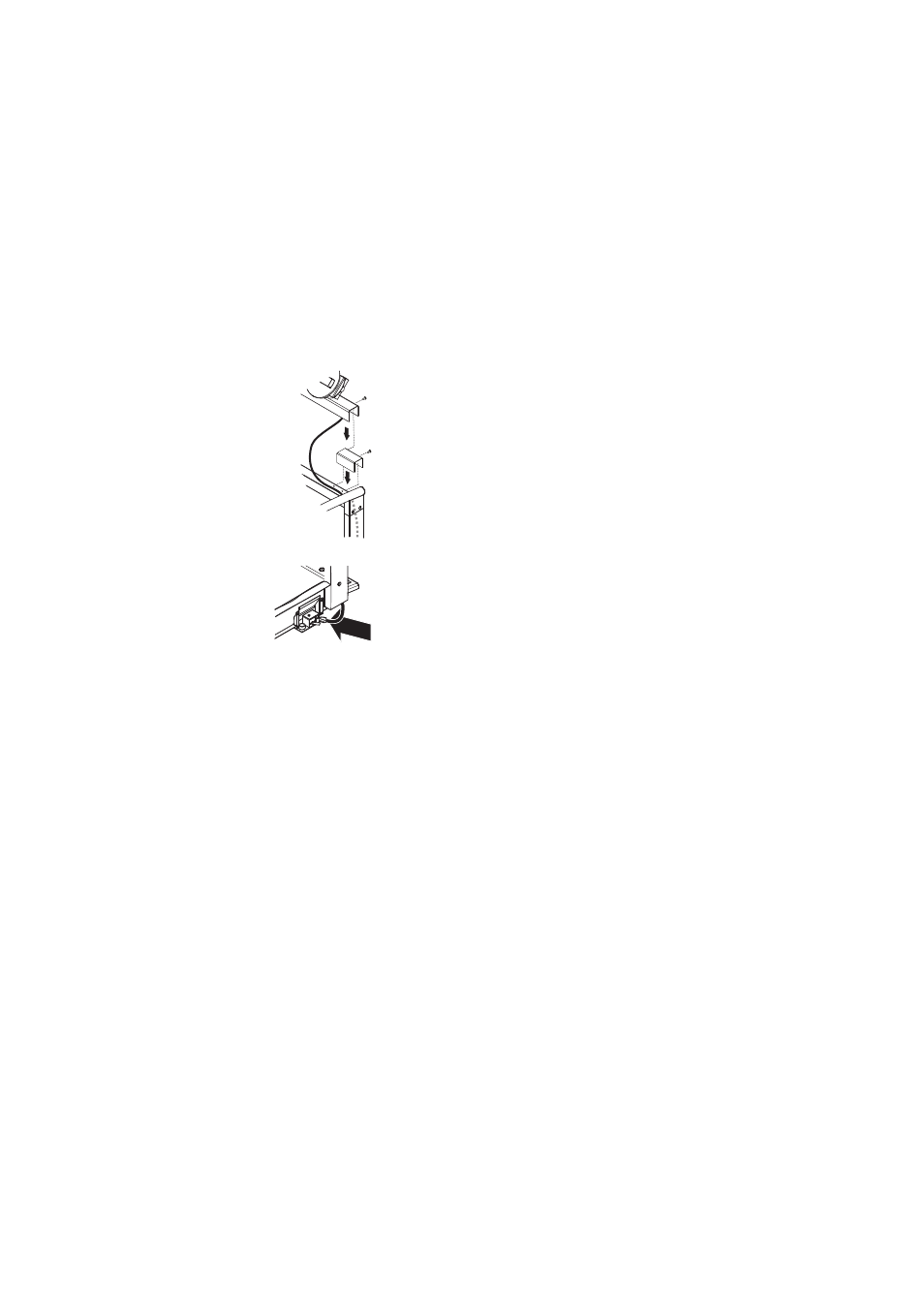

3. Ensure that the display cable is routed in the top
cross-piece in such a way that it cannot become
trapped in subsequent assembly steps.
4. Put the caps on the cross-piece.
5. Ensure that the bores of the caps are precisely over
the bores of the cross-piece.
6. Put a screw in each of the outer bores of the caps
and tighten them up.
7. Put the display support on the cross-piece.
8. Ensure that the bores in the cross-piece are pre-
cisely over the inner bores of the caps and of the
cross-piece.
9. Put a screw in each of the bores of the display
support and tighten it up.
10. Connect the display cable to the electronics box on
the weighing platform.
