MUFFLER CAP

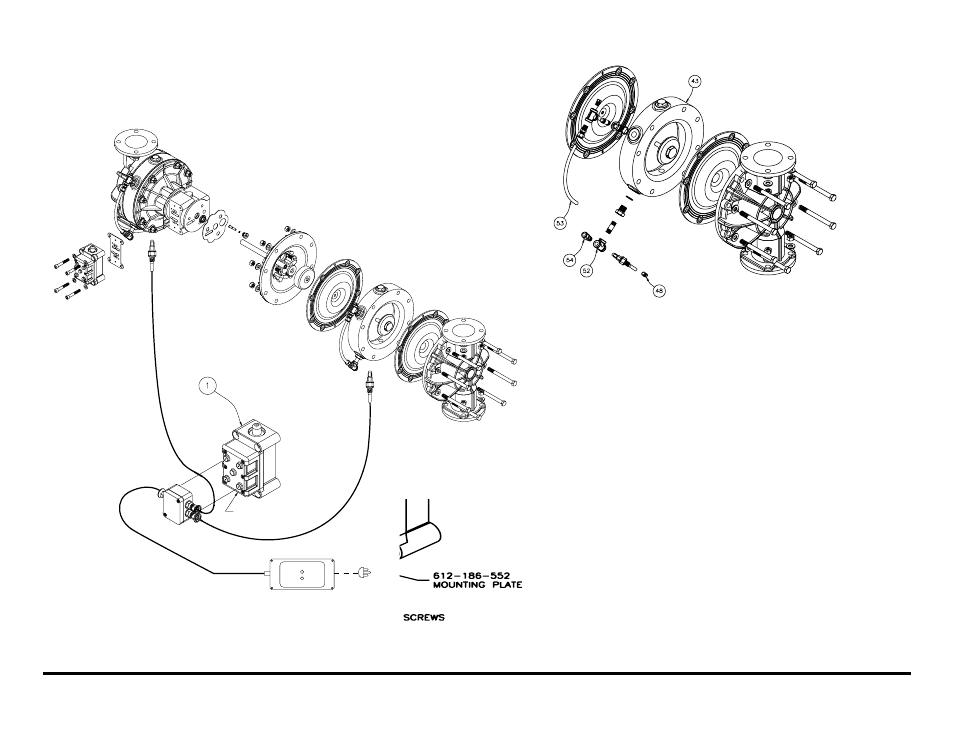

RuppTech ® Leak Detection Options Drawing
RuppTech ® LEAK DETECTION OPTION A (ELECTRONIC)
Follow instructions found elsewhere in this manual, “Filling the
RuppGUARD™ Spill Prevention Chambers” when installing leak
detectors.
RuppTech ® ELECTRONIC LEAK DETECTOR INSTALLATION
Kit 032-037-000 100VAC 50Hz
or 110-120VAC 50/60Hz
or 220-240VAC 50/60Hz
Kit 032-045-000 12-32VDC
To install electronic leak detectors, remove the bottom ¼" NPT
pipe plug on the visual sight tube (item 53). Insert leak detector into
the ¼" pipe tee (item 52).
RuppTech ® LEAK DETECTION OPTION B (MECHANICAL)
Follow instructions found elsewhere in this manual, “Filling the
RuppGUARD™ Spill Prevention Chambers” when installing leak
detectors.
RuppTech ® MECHANICAL LEAK DETECTOR INSTALLATION
Kit 031-023-110
To install mechanical leak detectors, remove the bottom ¼" NPT
pipe plug on the visual sight tube (item 53). Insert leak detector into
the ¼" pipe tee (item 52).
For pumps with
530-028-550
ENCLOSED MUFFLER
For pumps with
ALTERNATE MUFFLERS
710-009-115
Self-tapping Screws
(Qty of 4)
612-185-552
Mounting Plate
