Model S15 Non-Metallic Design Level 2 Page 14

*Flat Side of Spill
Prevention Chamber (Item 43),
to Face Outer Chamber (Item14).

31

12

6

15

28

17

18

49

47

43

27

44

14

38

42

38

47

49

47

49

48

52

54

50

53

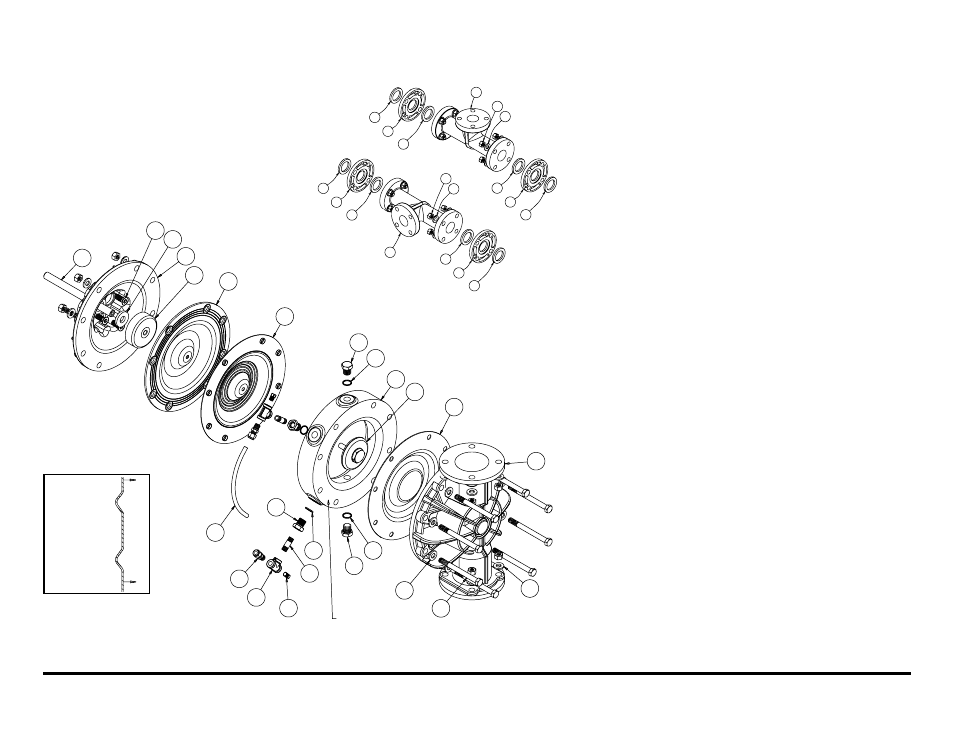

RuppGUARD

Option for

Virgin PTFE Equipped
Pumps Drawing

S15 Spill Prevention Repair Parts List for

Virgin PTFE Equipped Pumps

ITEM PART NUMBER DESCRIPTION

QTY

1

031-146-000

Air Valve Assembly

1

(replaces 031-140-000)

031-147-000

Air Valve Assembly

1

(replaces 031-141-000)

2

095-093-000

Pilot Valve Assembly

1

(replaces 095-088-000)

42

170-108-115

Capscrew, Hex HD 1/2-13 x 5.50

16

170-108-308

Capscrew, Hex HD 1/2-13 x 5.50

16

(replaces 170-095-115 Qty 16 of 32)

43

196-149-520*

Chamber, Spill Prevention

2

196-149-552*

Chamber, Spill Prevention

2

44

286-076-600

Diaphragm, Pumping

2

45

518-131-520

Manifold

2

(replaces 518-130-xxx)

518-131-520E

Manifold, 40mm DIN

2

518-131-552

Manifold

2

(replaces 518-130-xxx)

518-131-552E

Manifold, 40mm DIN

2

46

538-022-110

Nipple, Pipe

4

538-022-308

Nipple, Pipe

4

47

560-078-611

O-Ring

8

48

618-003-110

Plug, Pipe

4

618-003-308

Plug, Pipe

4

49

618-025-110

Plug, Boss

4

618-025-308

Plug, Boss

4

50

618-031-110

Plug, Boss

4

618-031-308

Plug, Boss

4

51

770-052-600

Spacer, Manifold

4

770-052-552

Spacer, Manifold

4

52

835-055-110

Tee, Pipe

4

835-055-308

Tee, Pipe

4

53

860-055-606

Tube, Sight

2

54

866-060-110

Connector, Tube

4

Note: The diaphragms are to be installed with the concave

side facing toward the outer chambers. See drawing.

Note:

All of

the diaphragms

are to be

installed with

the concave

side facing

toward the

outer

chambers.

35

51

35

45

35

51

35

38

25

35

51

35

35

51

35

45

25

38

Discharge

Manifold

Suction

Manifold
