520-193-000 9/02 Model S15 Non-Metallic Design Level 2 Page 12

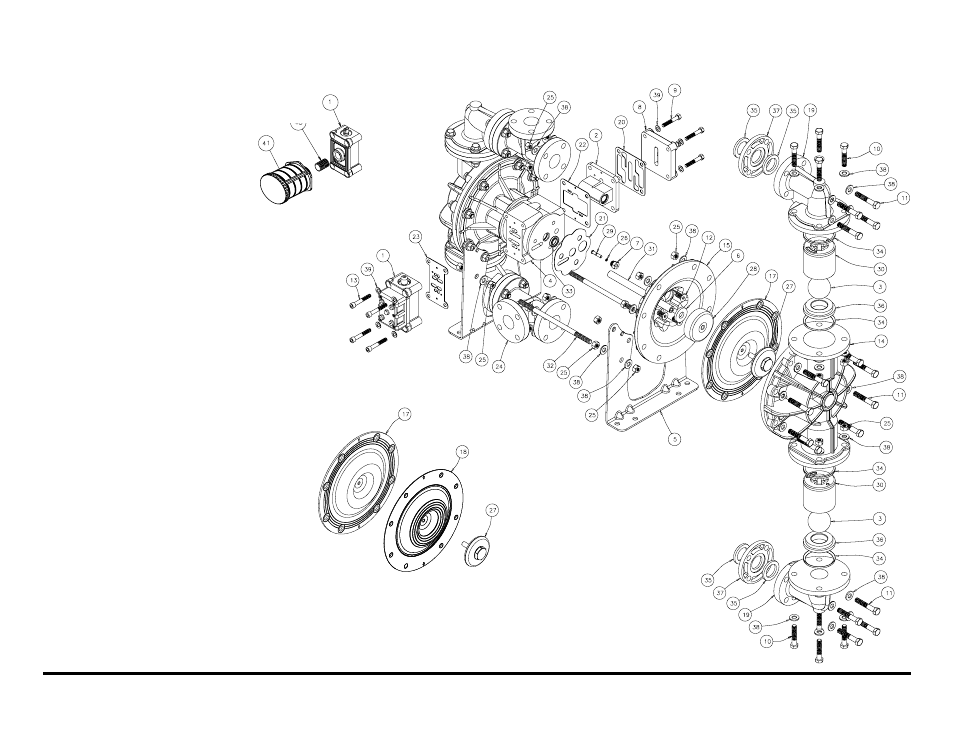

Overlay Option Drawing
Muffler Option
Drawing
Composite Repair Parts Drawing
AVAILABLE SERVICE AND CONVERSION KITS
476-172-000 AIR END KIT
Seals, O-rings, Gaskets,
Retaining Rings, Air Valve Sleeve &
Spool Set and Pilot Valve Assembly
476-173-000* AIR END KIT (for Stroke Indicator Option)
Seals, O-rings, Gaskets, Retaining
Rings, Air Valve Sleeve & Spool Set
and Pitot Valve Assembly.
476-124-354 WETTED END KIT
Santoprene Diaphragms,
Santoprene Balls and TFE Seals.
476-124-654 WETTED END KIT
Santoprene Diaphragms, PTFE Overlay
Diaphragms, TFE Balls
and TFE Seals.
476-141-354 WETTED END KIT (for Polypropylene
RuppGuard™)
Santoprene Diaphragms, PTFE Overlay
Diaphragms, PTFE Pumping Diaphragms,
PTFE Balls and PTFE Seals.
476-141-655 WETTED END KIT (for PVDF
RuppGUARD™)
Santoprene Diaphragms, PTFE Overlay
Diaphragms, PTFE Pumping Diaphragms,
PTFE Balls and PTFE Seals.
031-141-000 ASSEMBLY, AIR VALVE
(without Encapsulated Muffler, Muffler Cap and
six screws)
HARDWARE KITS
475-168-308
PTFE Coated Stainless Steel
Capscrews, Hex Nuts, Washers and
Support Rod
475-169-308 (For use with RuppGUARD™ Spill Prevention
Options)
RuppTech® PULSE OUTPUT KITS
(For use with 530-010-000 and 530-032-000 Mufflers,
or piped exhaust)
475-198-001 DC Kit
475-198-002 DC Intrinsically Safe Kit
475-198-003 110/120VAC or 220/240VAC Kit
475-198-004 110/120VAC Intrinsically Safe Kit
475-198-005 220/240VAC Intrinsically Safe Kit
(For use with encapsulated 530-028-550 Muffler)
475-198-006 DC Kit
475-198-007 DC Intrinsically Safe Kit
475-198-008 110/120VAC or 220/240VAC Kit
475-198-009 110/120VAC Intrinsically Safe Kit
475-198-010 220/240VAC Intrinsically Safe Kit
RuppTech® ELECTRONIC LEAK DETECTOR KITS
032-037-000
100VAC 50Hz
or 110-120VAC 50-60Hz
or 220-240VAC 50-60Hz
032-045-000 12-32VDC
