SANDPIPER S15 Non-Metallic - Manual (Page 18)

520-193-000 9/02 Model S15 Non-Metallic Design Level 2 Page 16

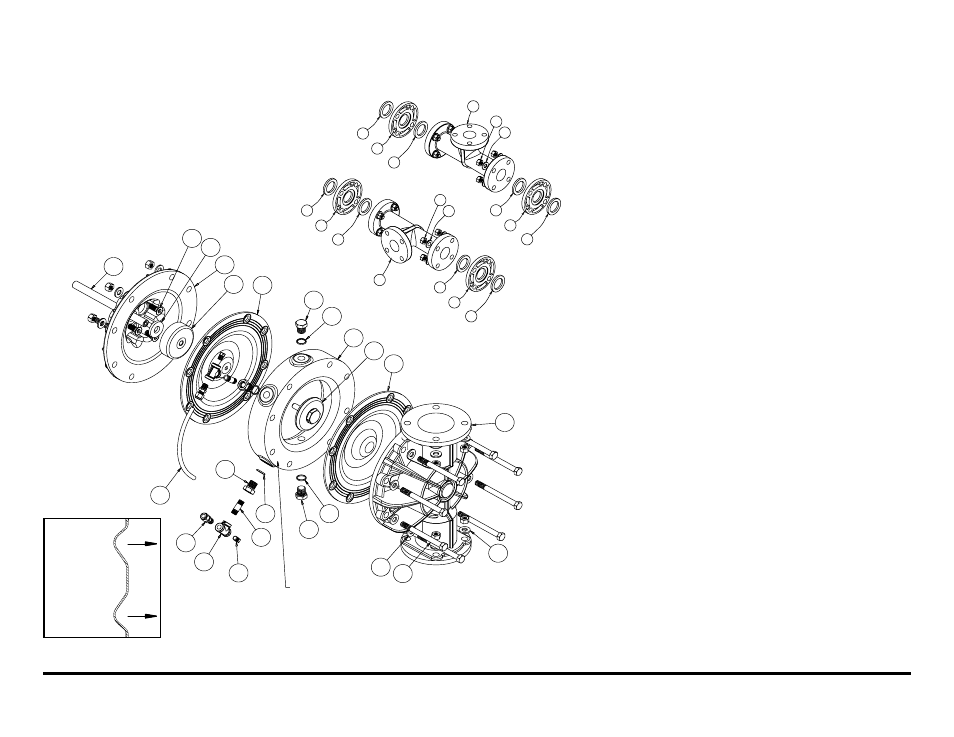

RuppGUARD ™ Option for TPE
Equipped Pumps Drawing
35
51
35
45
35
51
35
38
25
35
51
35
35
51
35
45
25
38
S15 Spill Prevention for
TPE Equipped Pumps Repair Parts List
ITEM PART NUMBER DESCRIPTION QTY
1 031-146-000 Air Valve Assembly 1
(replaces 031-140-000)
031-147-000 Air Valve Assembly 1
(replaces 031-141-000)
42 170-108-115 Capscrew, Hex HD 1/2-13 x 5.50 16
170-108-308 Capscrew, Hex HD 1/2-13 x 5.50 16
(replaces 170-095-115 Qty 16 of 32)
43 196-149-520* Chamber, Spill Prevention 2
196-149-552* Chamber, Spill Prevention 2
45 518-131-520 Manifold 2
(replace 518-130-xxx)
518-131-520E Manifold, 40mm DIN 2
518-131-552 Manifold 2
(replaces 518-130-xxx)
518-131-55E Manifold, 40mm DIN 2
46 538-022-110 Nipple, Pipe 4
538-022-308 Nipple, Pipe 4
47 560-078-611 O-Ring 8
48 618-003-110 Plug, Pipe 4
618-003-308 Plug, Pipe 4
49 618-025-110 Plug, Boss 4
618-025-308 Plug, Boss 4
50 618-031-110 Plug, Boss 4
618-031-308 Plug, Boss 4
51 770-052-600 Spacer, Manifold 4
770-052-552 Spacer, Manifold 4
52 835-005-110 Tee, Pipe 4
835-055-308 Tee, Pipe 4
53 860-056-606 Tube, Sight 2
54 866-060-110 Connector, Tube 4
55 286-081-354 Diaphragm, Pumping 2
Note: The diaphragms are to be installed with the concave
side facing toward the outer chambers. See drawing.
*Flat Side of Spill Prevention
Chamber (Item 43), to Face
Outer Chamber (Item 15).
31
12
6
15
28 17
49
47
43
27
55
14
38
42
38
47
49
47
49
48
52
54
53
50
Note:
All of
the diaphragms
are to be
installed with
the concave
side facing
toward the
outer
chambers.
Suction
Manifold
Discharge
Manifold
