520-193-000 9/02 Model S15 Non-Metallic Design Level 2 Page 1
Santoprene ® Injection molded thermoplastic elastomer with no fabric layer. Long mechanical flex 212°F -10°F 50° to 212°F
life. Excellent abrasion resistance. 100°C -23°C 10°C to 100°C
PTFE Chemically inert, virtually impervious. Very few chemicals are known to react chemically with
PTFE: molten alkali metals, turbulent liquid or gaseous fluorine and a few fluoro-chemicals such as 212°F -35°F 50°F to 212°F
chlorine trifluoride or oxygen difluoride which readily liberate free fluorine at elevated temperatures. 100°C -37°C 10°C to 100°C
PVDF 200°F -10°F
-93°C -13°C
Polypropylene 150°F -40°F
65°C 5°C
Quality System
ISO9001 Certified
Environmental
Management System
ISO14001 Certified
S15
Non-Metallic
Design Level 2
Ball Valve
Air-Powered
Double-Diaphragm Pump
ENGINEERING, PERFORMANCE
& CONSTRUCTION DATA
CE
U.S. Patent #
5,851,109; 5,996,627;
400,210 & 6,241,487
Other U.S. Patents
Applied for
Materials
Maximum* Minimum* Optimum**
*Definite reduction in service life.
**Minimal reduction in service life at ends of range.
Operating Temperatures
For specific applications, always consult “Chemical Resistance Chart” Technical Bulletin
SandPIPER II ® pumps are designed to be powered only by compressed air.
INTAKE/DISCHARGE PIPE SIZE
1½" ANSI Flange or
PN10 40mm DIN Flange
CAPACITY
0 to 90 US gallons per minute
(0 to 340 liters per minute)
AIR VALVE
No-lube, no-stall
design
SOLIDS-HANDLING
Up to .47 in. (12mm)
HEADS UP TO
100 psi or 231 ft. of water
(7 bar or 70 meters)
DISPLACEMENT/STROKE
.36 US gallon / 1.36 liter
CAUTION! Operating temperature limitations are as follows:

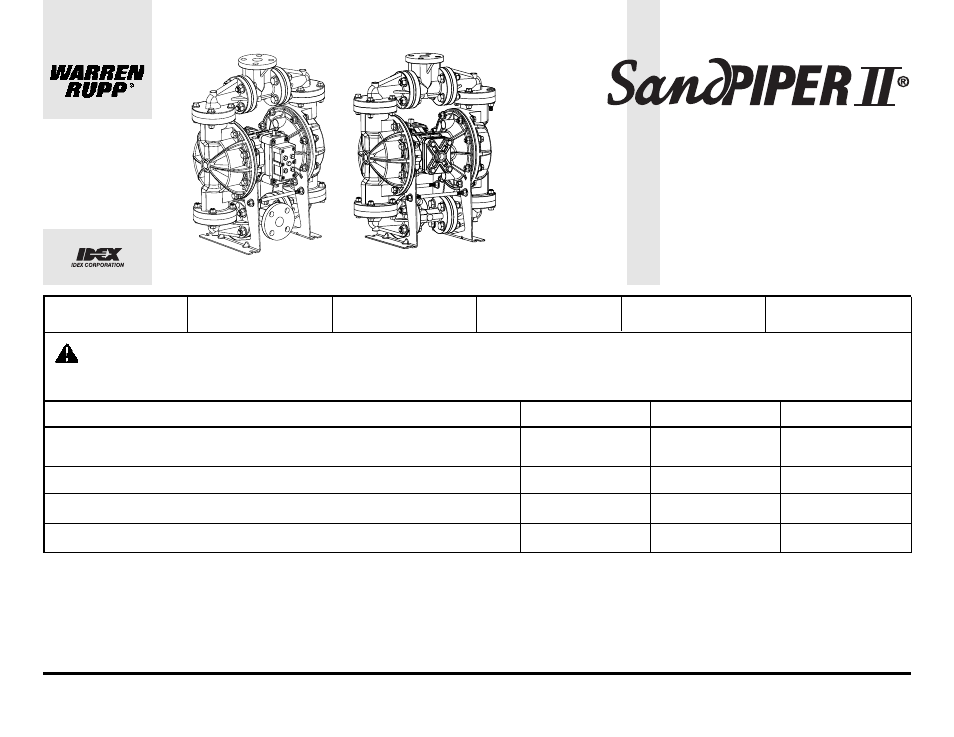

Air Inlet Side View
Air Exhaust Side View
Polyurethane 210°F
99°C
-40°F
-40°C
-40°F to 210°F
-40°C to 99°C
