Model M30 Metallic Page 5

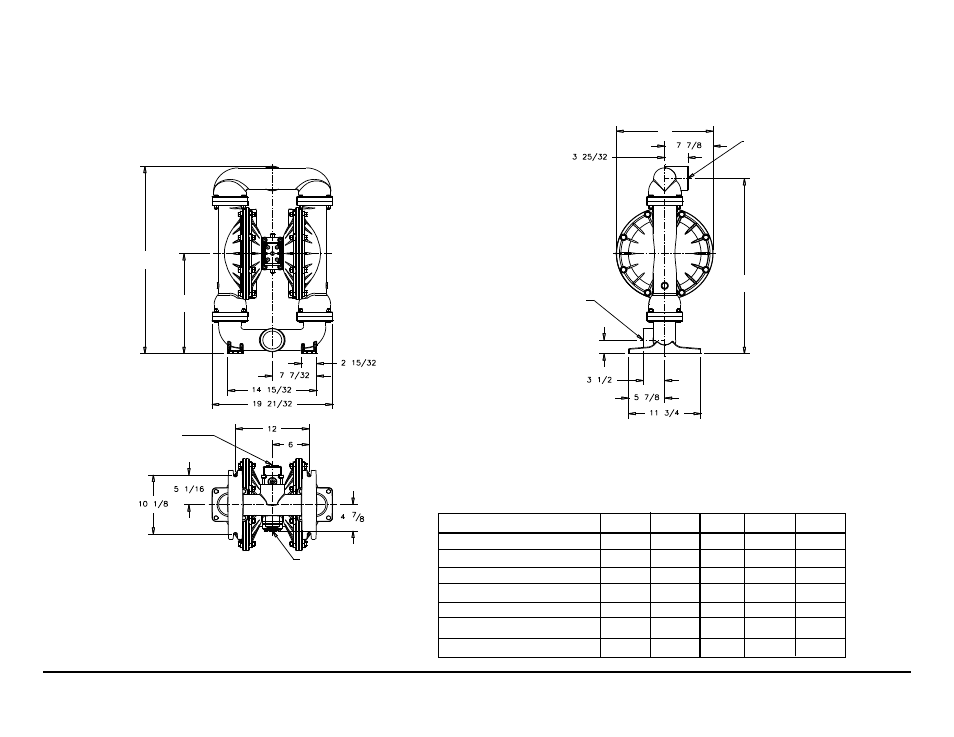

Dimensions: M30 Metallic, Threaded Ports

Dimensions in Inches

Dimensional Tolerance:±

1

/

8

"

D

E

A

B

C

STANDARD

INTEGRAL MUFFLER

1" NPT EXHAUST PORT

FOR OPTIONAL MUFFLER

STYLES OR PIPING EXHAUST

AIR IN SUBMERGED

APPLICATIONS.

SUCTION PORT

3" NPT TAP

DISCHARGE PORT

3" NPT TAP

AIR INLET

3/4” NPT

BOTH SUCTION AND

DISCHARGE PORTS ARE

AVAILABLE WITH

3" BSP TAPERED THREADS

BOTTOM VIEW

FRONT VIEW

SIDE VIEW

Pulse Output Kit
Aluminum

Sound Dampening Muffler

Integral Muffler

Stainless Steel

Metal Muffler

DIMENSION

B

C

D

E

15 3/4
15 3/4

29 31/32 2 11/32 17 9/64 32 1/16

30 3/16 2 9/16 17 23/64 32 9/32

Mesh Muffler

17 3/16

17 3/16

16 3/4

A
