SANDPIPER M30 Metallic - Manual (Page 6)

m30mdl1sm-rev0713 Model M30 Metallic Page 4
FRONT VIEW
BOTTOM VIEW
SIDE VIEW
PUMP WEIGHT: 273 lbs
CENTER OF GRAVITY
SUCTION PORT
3” RF ANSI STYLE (#150) FLANGE
3/4 4 HOLES EQUALLY SPACED
ON A 6 BOLT CIRCLE
DIN FLANGE CONFIGURATION
80 DIN (10 BAR) FLANGE
19MM 8 HOLES EQUALLY SPACED
ON A 160MM BOLT CIRCLE
SUCTION PORT
3” RF ANSI STYLE (#150) FLANGE
3/4 4 HOLES EQUALLY SPACED
ON A 6 BOLT CIRCLE
DIN FLANGE CONFIGURATION
80 DIN (10 BAR) FLANGE
19MM 8 HOLES EQUALLY SPACED
ON A 160MM BOLT CIRCLE
1” NPT EXHAUST PORT
FOR OPTIONAL PIPING EXHAUST
AIR IN SUBMERGED APPLICATIONS
AIR INLET
3/4” NPT
DIMENSION
STANDARD PUMP
PULSE OUTPUT
METAL MUFFLER
MESH MUFFLER
SOUND DAMPENING MUFFLER
A
15 3/4 / (400MM)
16 1/32 / (407MM)
16 3/4 / (429MM)
17 3/16 / (441MM)
17 3/16 / (441MM)

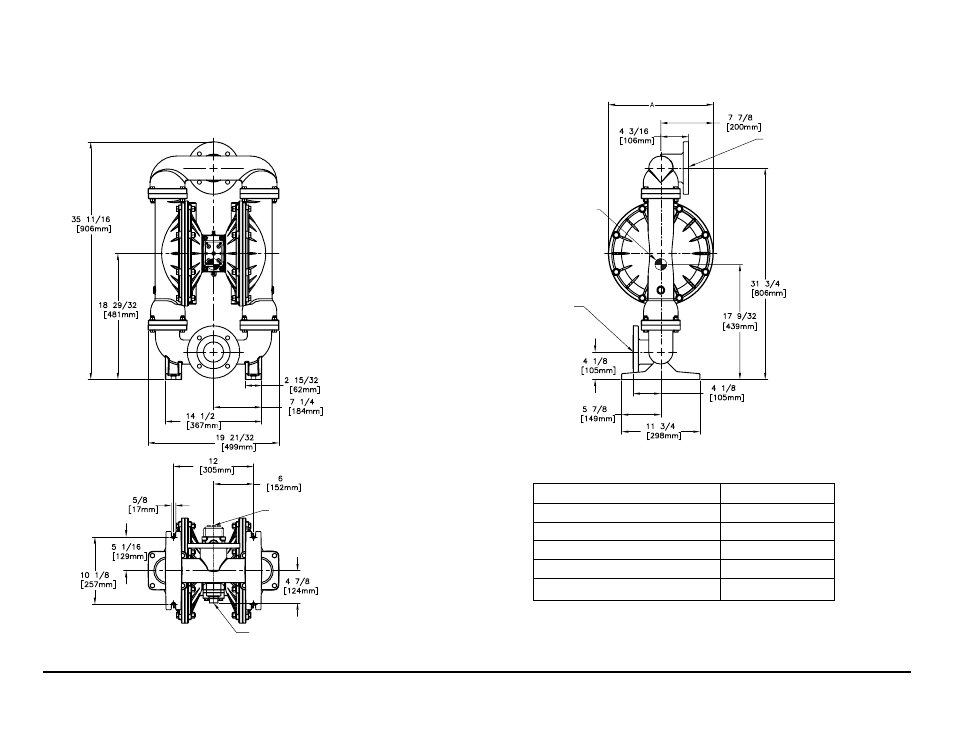

Dimensions: M30 Metallic, Flanged Ports
Dimensional Tolerance:± 1 /
8
"
Dimensional Tolerance:± 3mm
