m30mdl1sm-rev0713 Model M30 Metallic Page 17

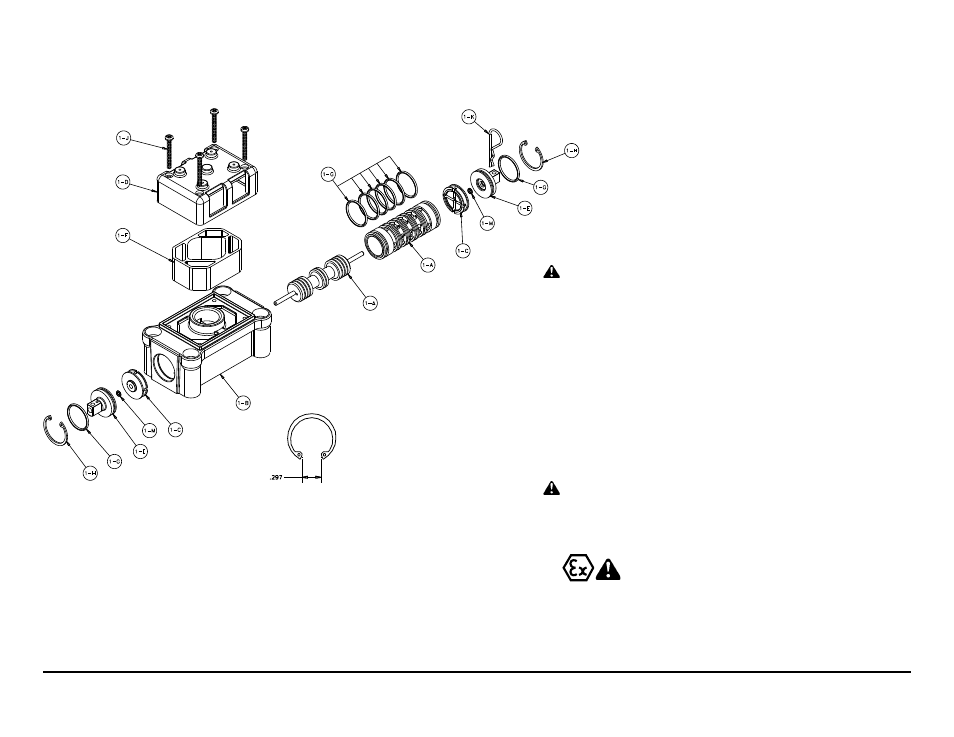

Air Valve with Stroke Indicator Assembly Drawing, Parts List
AIR VALVE ASSEMBLY PARTS LIST
ITEM PART NUMBER
DESCRIPTIoN QTY
1 031-146-000 Air Valve Assembly 1
1-A 031-143-000 Sleeve and Spool Set 1
1-B 095-094-559 Body, Air Valve 1
1-C 132-029-552 Bumper 2
1-D 165-096-559 Cap, Muffler 1
1-E 165-098-147 Cap, End 2
1-F 530-028-550 Muffler 1
1-G 560-020-360 O-Ring 8
1-H 675-044-115 Ring, Retaining 2
1-J 710-015-115 Screw, Self Tapping 4
1-K 210-008-330 Clip, Safety 1
1-M 560-029-360 O-Ring 2
For Pumps with Alternate Mesh, Sound Dampening Mufflers
or Piped Exhaust:
1 031-147-000 Air Valve Assembly 1
(includes all items on 031-146-000 minus 1-D, 1-F, & 1-J).
Note: ATEX compliant
NOTE: CHECK GAP AFTER ASSEMBLY
TO INSURE COMPLETE
INSTALLATION OF RETAINING RING
