Assembly Instructions
5x10x8 CycleCabana
TM
V1.0
Do NOT Return Assembly To Dealer or Store. For All Questions or Shortages Please Call MDM Products Directly
Customer Service 800-447-7079 or 203-877-7070
3
Note: All Side and Base Ridge Poles MUST be on the inside
of the Arch Frame Members. Top Ridge Poles MUST be on
the outside of the Arch Frame members, except at the
Ends. See Frame Assembly Step 5.
Figure 1
Site Preparation
Select a level or as close to level as practical location for
your MDM Products unit. The unit should be placed on
a base of materials suitable for the storage load to be
protected. The unit should not be located under trees,
which will shed hard fruit such as apples, walnuts, or
heavy pine cones. The cover of your unit will protect
against normally leaves and light debris, however large
branches or other falling items may cause puncture or
tears in the cover material.
Take notice of drainage around your intended location.
Water draining from the surrounding terrain should be
planned so that it does not run into the unit. As well, rain
or melting snow that comes off the unit should be
drained away rather than accumulate and pool around
the unit.
Check to be certain that adequate clearance is allowed
for entry and exit from ends of unit. As unit has different
door openings on each end, ideally contents can be
inserted or removed from either end.

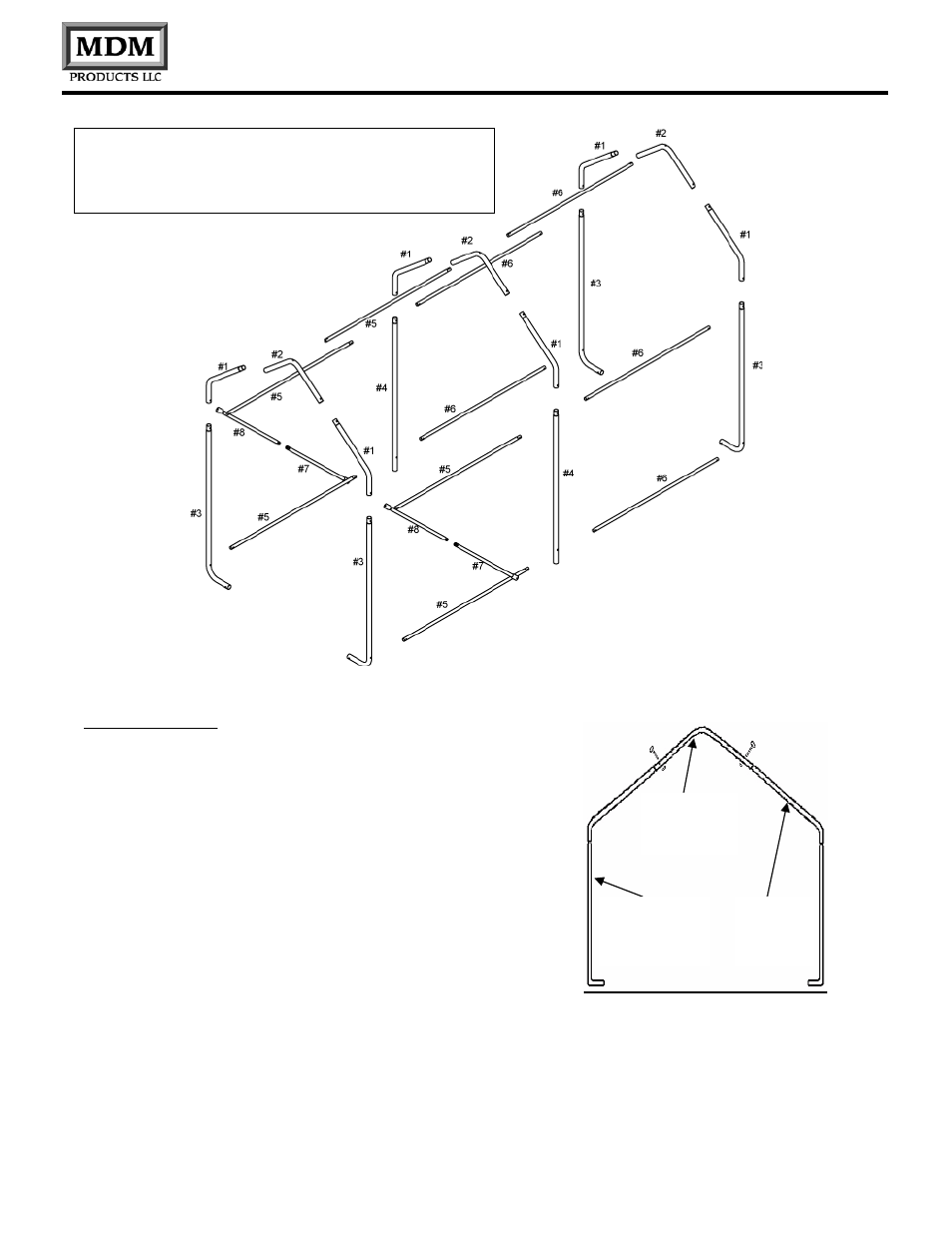

Part #2
Top
Crest Tube
Figure 2
Part #1 Part #3
End Upright
w/Foot
Bent Side
Crest Tube
