Assembly Instructions Barn Style 12 x 28 x 12
V1.2
Do NOT Return Assembly To Dealer or Store. For All Assembly Questions or Shortages Please Call MDM Products Directly
Customer Service 800-447-7079 or 203-877-7070
8

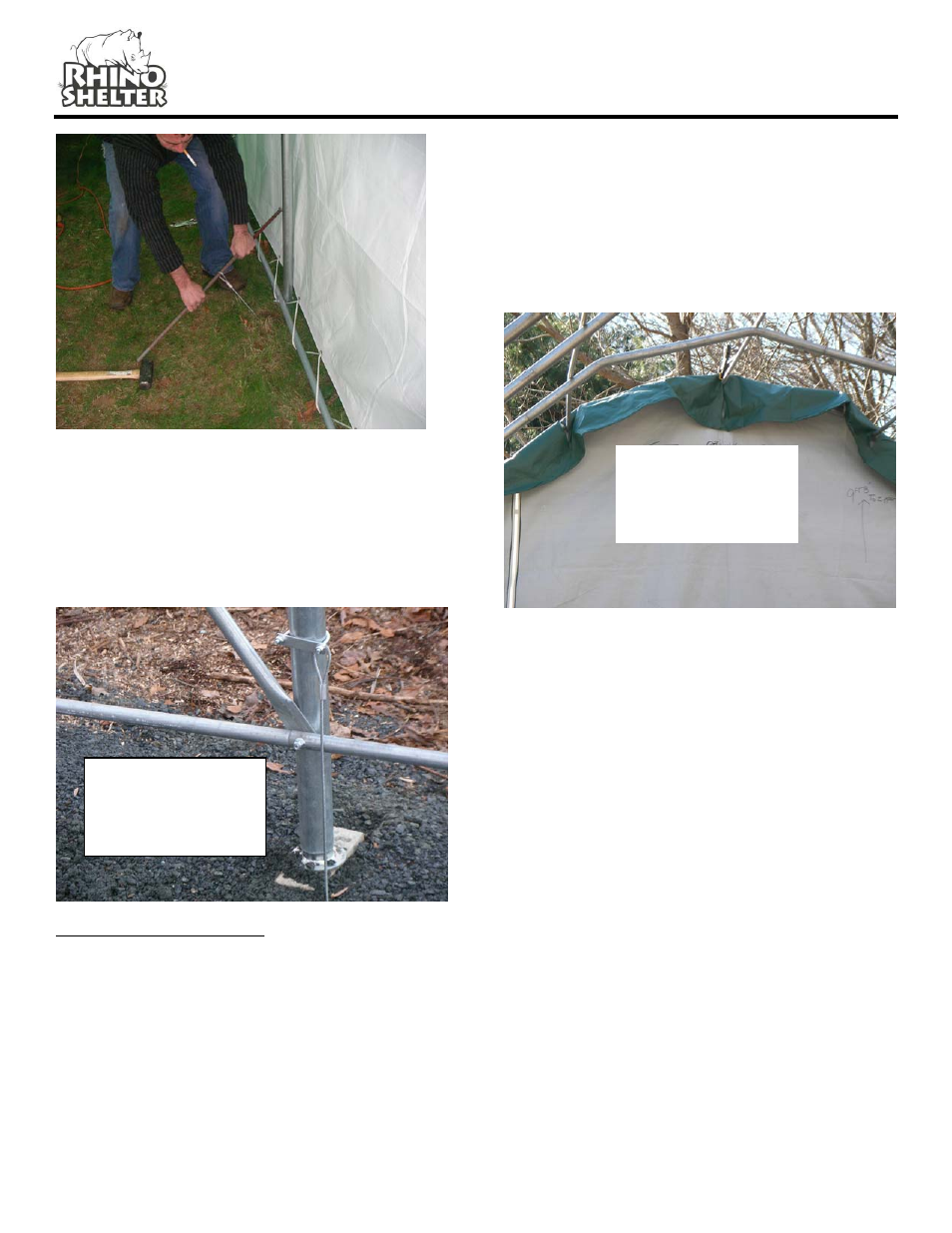

ANCHOR STEP 3
Slip one side of the U-bolt through the eyelet at the end
of the anchor cable. Attach the cable to the Arch leg
upright with the U-bolt and tighten. Do not attach to base
cross rails. Ensure there is no slack in the cable. Slack
can be removed by wrapping the cable around the tie-
down rail.
END PANEL INSTALLATION
Note: Both End Panels MUST be installed before
installing Main Cover onto frame.
Step1. Remove Carriage bolts from the Top Crest Rail
and the two Upper Cross Rails. Install one #18 End
Panel Door w/Zippers at a time to the Frame assembly.
Step 2. Place the end panel over the first arch and wrap
the material around the arch bringing the slits in the end
panel to the inside of the frame arch. End Door Panels
have pre-cut slits that allow frame members to pass
through so rope pocket is inside unit. Place the top ridge
pole and the side cross rails through the material slits
and replace the carriage bolts and tighten. The door end
will also require removal of the wind brace bolts and
placement of the wind braces through slits in the ends
panel. Reconnect wind braces with carriage bolts once
end panel is put into place.
Door Panel
positioned over end
arch with cross
rails through fabric
The rope channels should be located inside the unit, with
the frame members passing through the pre-cut slots in
the end panel/door. Replace and tighten the carriage
bolts after putting the end panel into position.
Door assembly is drawn taut over end frame by
tightening rope and securing to turnbuckles at the arch
foot. Frame must be secured in position so it does not
move as end doors and main cover are tightened over
frame. This step is key to good fit and to prevent door
movement in wind.
Pull U-Bolt &
Anchor Loop up on
Arch Base and
Tighten
