Assembly Instructions Barn Style 12 x 28 x 12

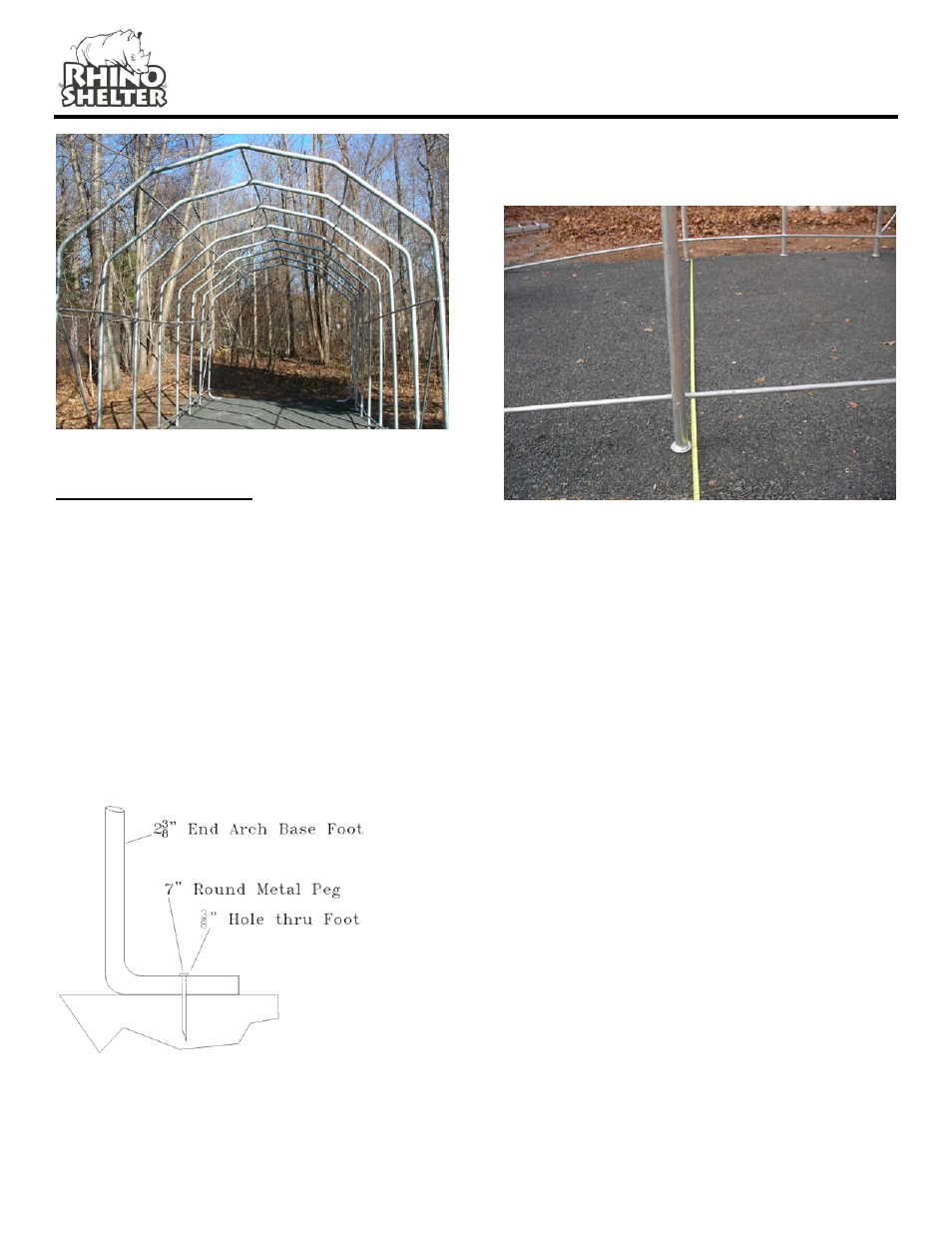

Measure frame width across from outside to outside of
frame members. Adjust to 12’ width along entire frame
length.
SQUARE & LEVEL FRAME
Adjust the frame assembly in its final installation
location. This should be done with more than one
person lifting each side or corner to avoid bending or
stressing any frame members. Frame must now be
squared up in position.
When all widths are adjusted properly, measure from
diagonally from inside corner to inside corner. Adjust
frame as necessary to bring frame into square. Failure
to square frame of unit will result in poor cover fit
and reduced strength and rigidity. If end or interior
upright ends are placed on soft material that will not
support weight, recess small patio blocks or bricks under
leg ends. This will also allow better setting of frame
before securing to ground.
Align one end corner in the final position desired. Use a
line strung from front to back to align all arch members
on that side from end to end. Each corner of the Barn
style has a hole vertically through the foot base. Put the
end arch exactly where desired, and insert #12 Round
3/8” Metal Peg into ground to prevent leg base from
moving. Install the Leg Peg into the other end corner
foot base. Re-check the position of all interior arch
uprights for alignment.
The Rhino Shelter Barn style unit features Adjustable
Base Legs on all interior arch bottoms. By removing the
carriage bolt through the frame members, you can adjust
the interior arch ends up or down so that they sit square
on the ground. Adjust each leg before securing to
ground so that bottom cross rails are level.
V1.2
