Digital Video Recorder User Manual
11

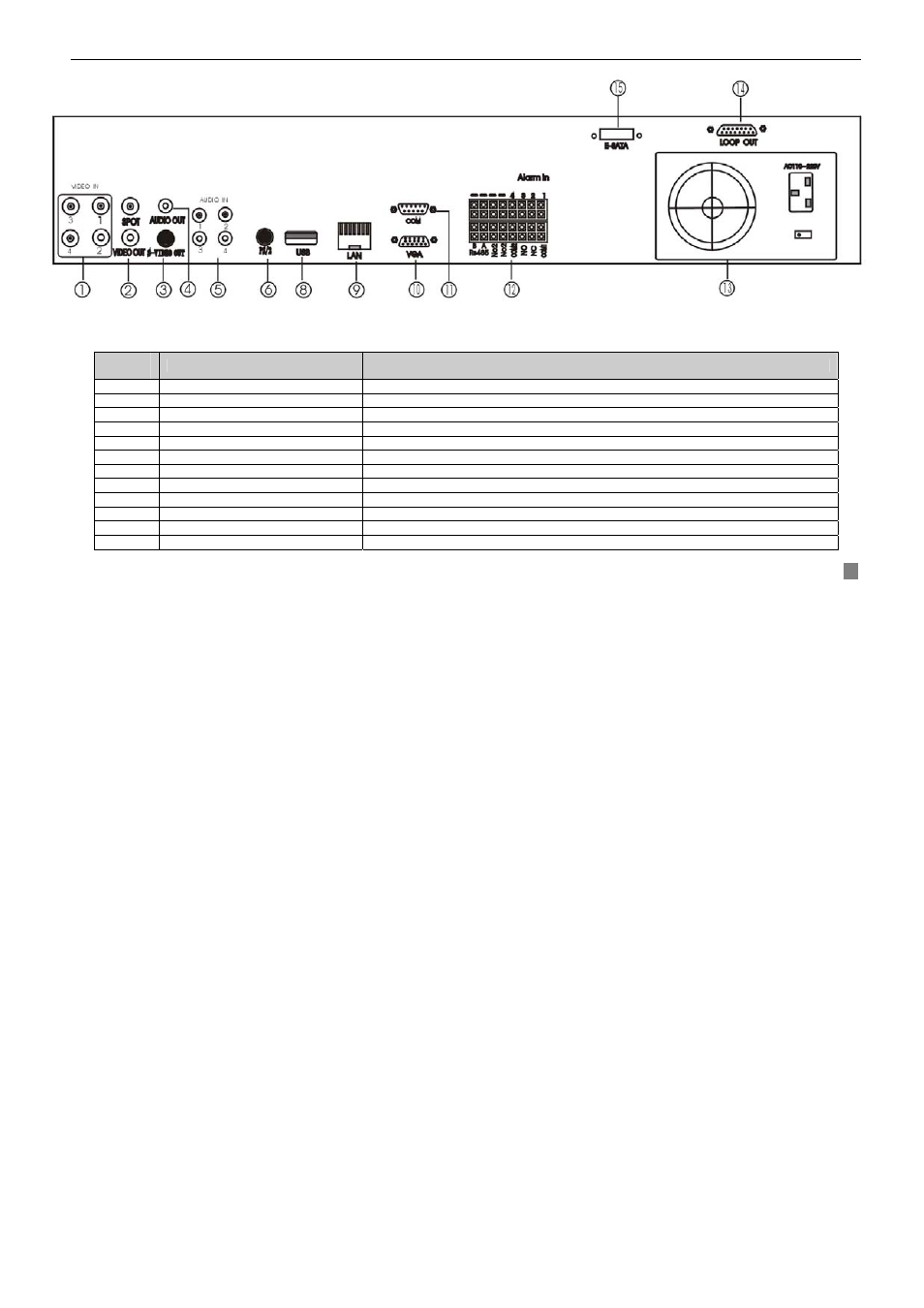

Fig 2.6 Rear Panel (3) for 4-channel DVR
Name Description
1 Video in Video input channels from 1-16
2 Video out Connect to monitor
3 S-video S-Video output, connect to monitor
4 Audio out Audio output, connect to the sound box
5 Audio in Audio input
6 PS/2 port Connect to PS/2 mouse
8 USB MOUSE Only for USB mouse
9 RJ45 PORT Connected to internet
10 VGA port VGA output, connect to monitor
11 COM port For debug
12 ALARM OUT Relay output1-4. Connect to external alarm. Please refer to 2.3.2 Install Sensor &Alarm
13 Power Power on/off
