CHAPTER 2
Hardware Installation
Notice: Check the unit and the accessories after getting the DVR.
Please disconnect the power before being connected to other devices. Do not hot plug in/out
2.1 Install Hard Drive &DVD Writer
2.1.1 Install Hard Drive
Notice: 1. Support three SATA hard-disk drives. Please use the hard-disk drive the manufacturers recommend specially for security and safe
field.
2. Please calculate HDD capacity according to the recording setting. For the details, please refer to “Appendix B Calculation of
Recording Capacity”.
STEP1
Unscrew and Open the top cover
STEP2
Place HDD into the position shown as fig. 2.1

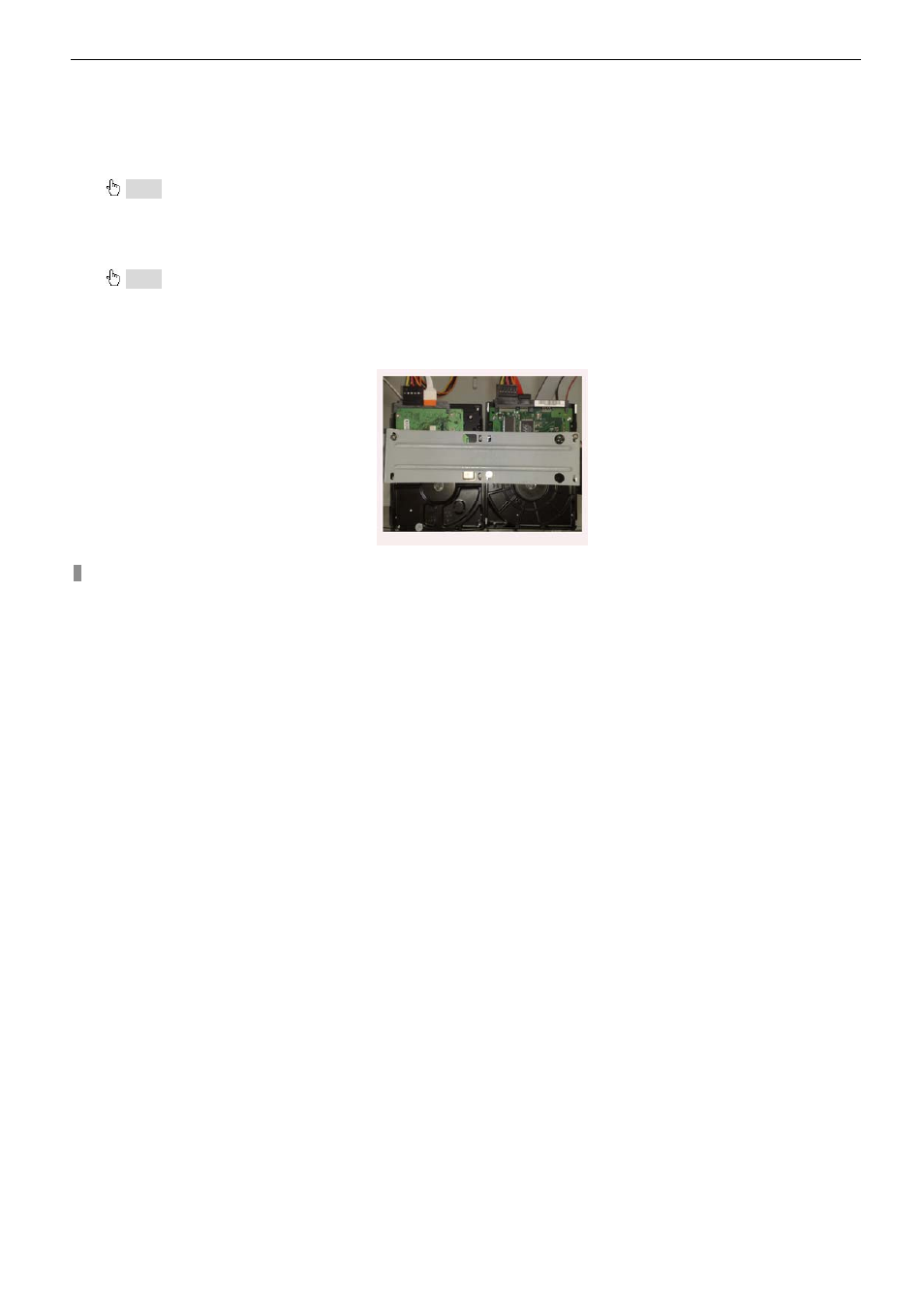

Fig 2.1 Installation of hard-disk drive
