Prince ® XL - Owner's Manual - Page 21
S
TRAIGHT
, A
IR
/W
ATER
C
OOLED
B
ARREL
A
SSY

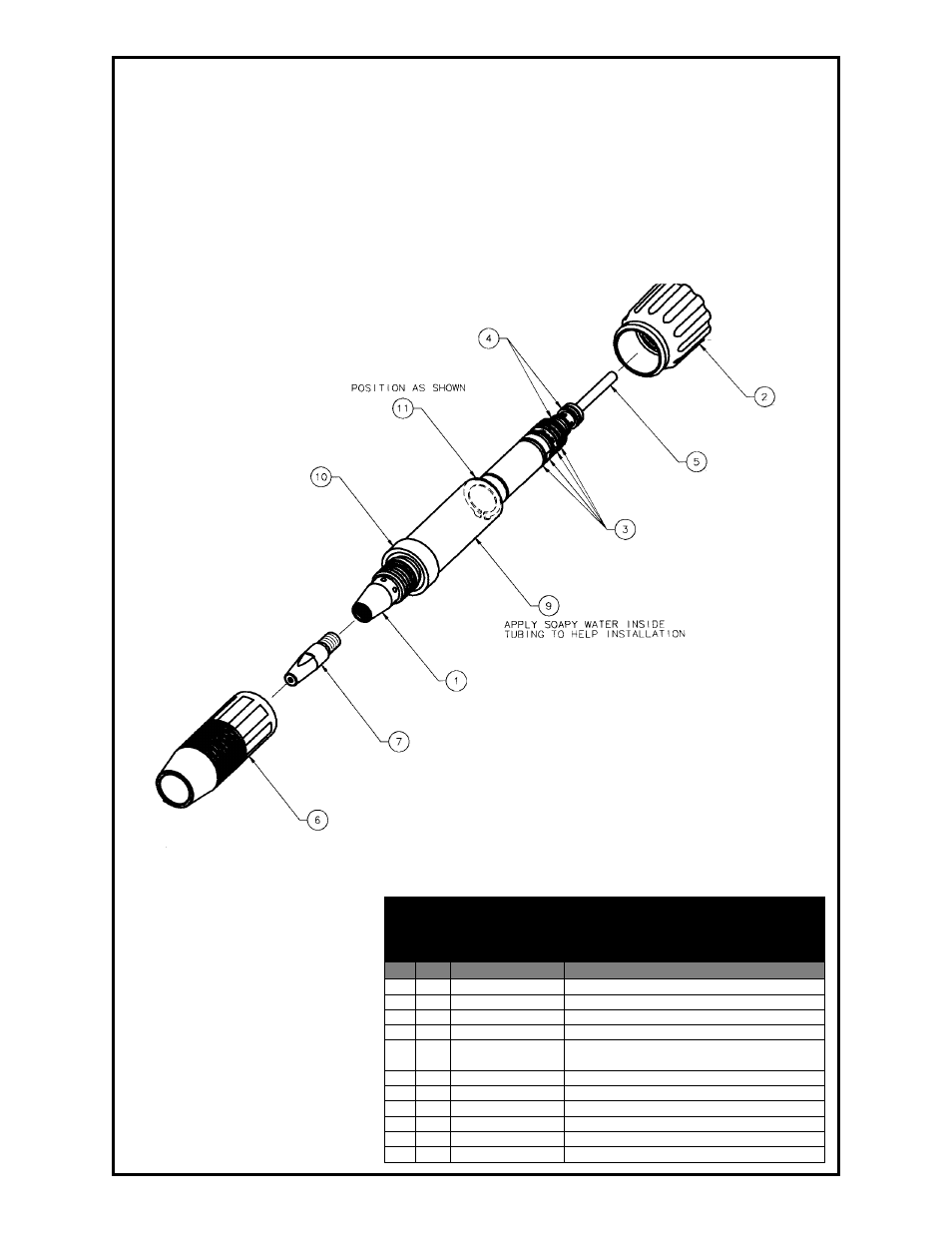

. 7”, E
XPLODED
V
IEW
LE P/N KP2298-1, MK P/N 003-2151
200 AMP, 100% D
UTY
C
YCLE
Straight Air/Water Cooled
Barrel Assy.
003-2151
No. Qty. Part No. Description
1 1 002-0642 Brazed Barrel Str AW
2 1 003-2213 Assy Taper Lock
3 4 303-0010 O-Ring 0.489 ID x 0.070 OD
4 2 303-0094 O-Ring 0.301 ID x 0.070 OD
5 1
LE KP2226-1
MK 931-0137
Tefl on Liner Package, 5 Pieces
6 1 621-0250 Assy Cup Cpr Finned #10
7 1 621-0393 Tip HD Spray 0.060
8 - - -
9 1 005-0696 Insulator Replacement Kit
10 1 431-1774 Cup Insulator
11 1 313-0091 Retaining Ring 5/8 Shaft
