Prince ® XL - Owner's Manual - Page 5

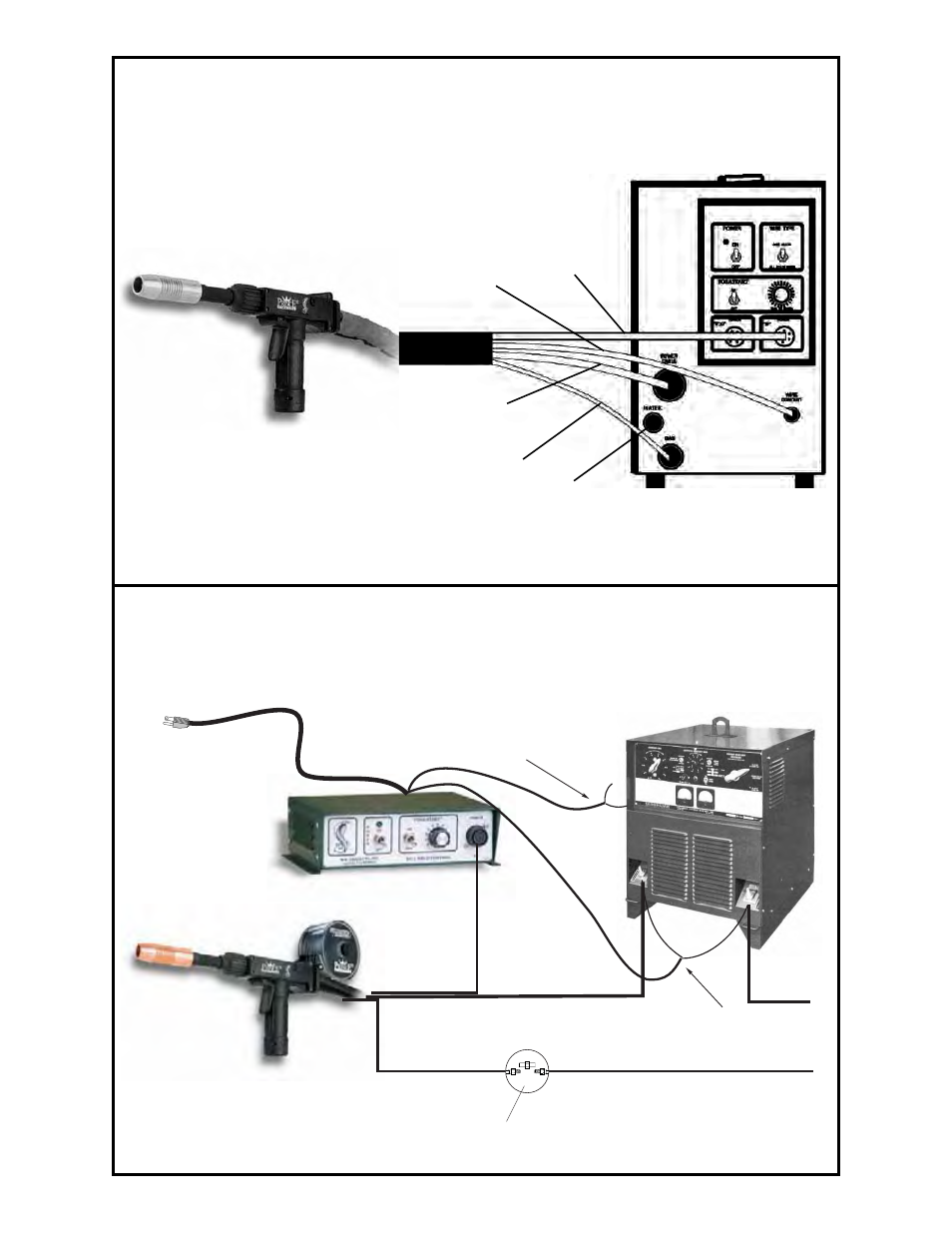

ELECTRICAL
CABLE
WIRE CONDUIT
POWER CABLE
PRINCE ® XL TORCH
TO
COBRAMATIC ® I CABINET
(150-005,150-006, 150-205, 150-206,
K1853-1 & K2259-1)
PRINCE ® XL SPOOL GUN
TO
WC-1 WELD CONTROL BOX
GAS HOSE
WATER HOSE -
OPTIONAL
I
NTERCONNECTIONS
GAS HOSE
ELECTRICAL CABLE
115VAC PLUG
POWER CABLE
CONTACTOR LEADS
WC-1 CONSTANT CURRENT
POSA START SENSING LEADS NOT NEEDED
WITH CONSTANT VOLTAGE SUPPLIES
NOTE: The Posa Start feature permits
the WC-1 to be used in
combination with any Constant
Current DC power source with
an open circuit voltage in exces
of 55 volts.
CC or CC POWER SUPPLY
GROUND
Weld Control Box
White
Red Green
Black
Customer Supplied
COUPLER -AW-430-RH
MK P/N 753-3377
