Prince ® XL - Owner's Manual - Page 19

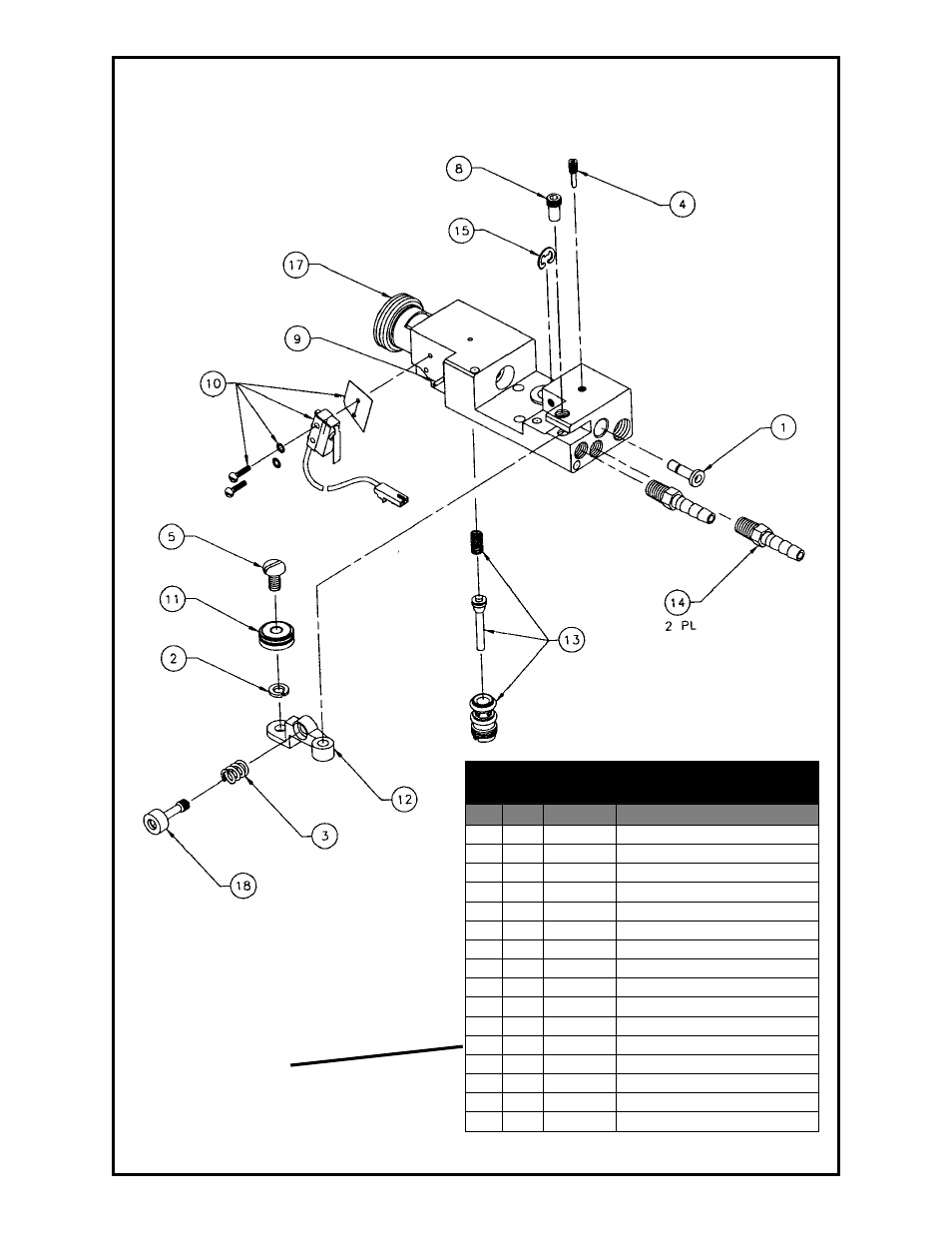

H
EAD
B
ODY
, E
XPLODED
V
IEW
MK P/N 003-1972
C
Note 2: If Cobramatic Wire Feeder is
equipped with a gas solenoid kit, a
modifi ed gas value stem (p/n 431-1080)
must be installed in torch to allow gas
fl ow from cabinet value.
Head Body
003-1972c
No. Qty. Part No. Description
1 1 431-2013 Wire Guide
2 1 333-0082 Washer Split 10
3 1 419-0020 Spring Compress 0.29 OD x 0.047
4 1 321-1074 Set Scr mod 6-32unc x 5/8
5 1 325-0206 Screw Pan Head 10-24-3/8
8 1 431-1427 Pivot Pin
9 1 421-0129 Pin Spring 0.063 x 0.437
10 1 003-0568 Micro Switch Assy.
11 1 511-0001 Idler Wire Feed Assy.
12 1 431-1424 Idler Arm
13 1 001-0562 Gas Valve Cobra
14 1 431-3034 Fitting 3/16 hose to 1/16-27npt
15 1 313-0008 E-ring Shaft 0.188
17 1 002-0573 Main Body Assy.
18 1 002-0583 Adjust Screw Idler Arm
19 A/R 823-0044 Sealand, Pipe Thread
Item numbers 6, 7, and 16 are not used.
Note 1: Item numbers 2, 5, and 11 can
be purchased as Kit (MK P/N) 005-0686
or (LE P/N) KP2220-1
