Wiring diagram – Lincoln Electric IM944 POWERTORCH PLASMA 20 User Manual
Page 20
F-1

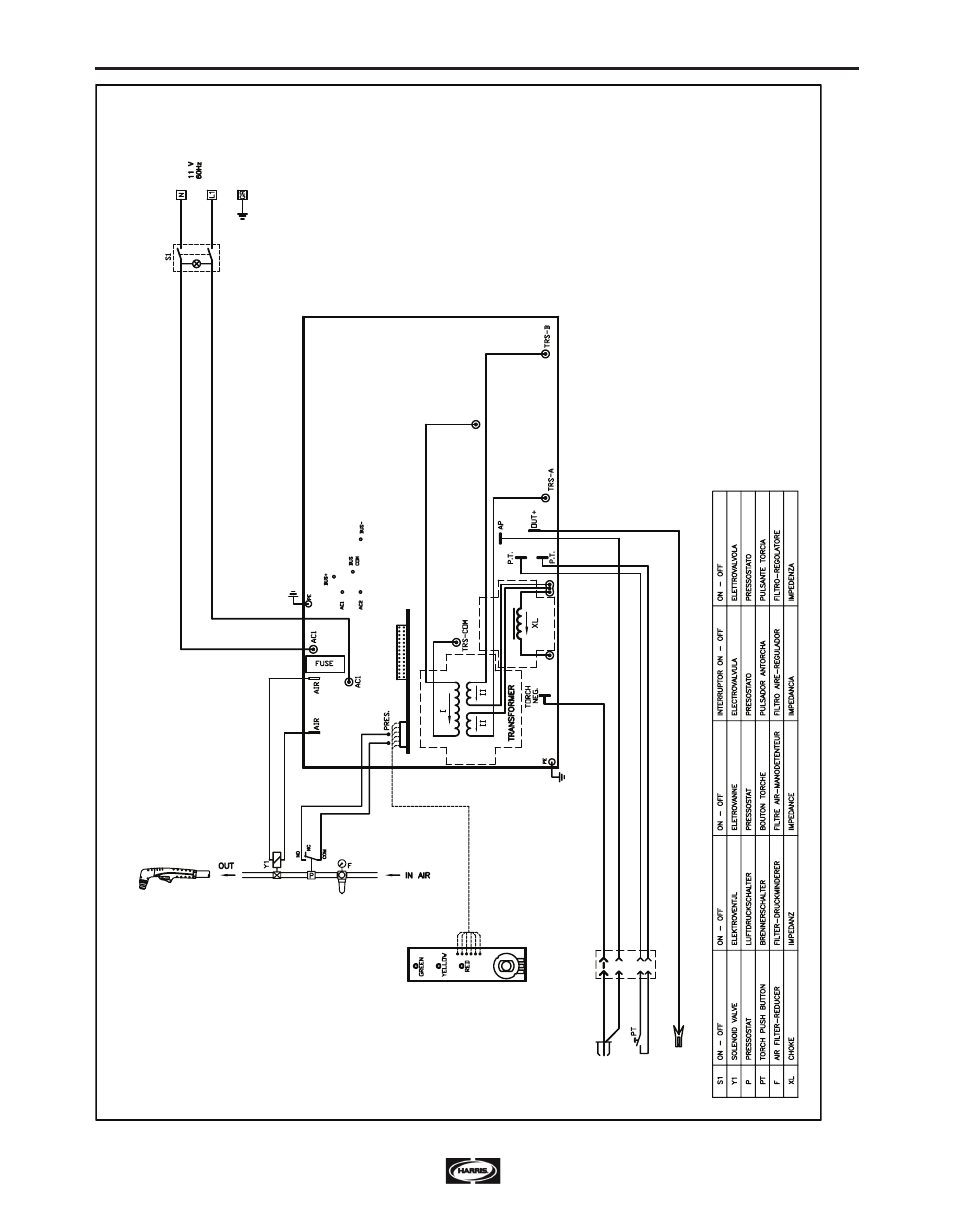

WIRING DIAGRAM
F-1
POWERTORCH™ PLASMA 20
NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diag
ram for a particular code is pasted inside
the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. G
ive the equipment code number.
5
INVERTER BOARD
DISPLA
Y BOARD
CONTROL
BOARD
