MOBIFLEX 400-MS
A-1 INSTALLATION A-1
Technical Specifications- Mobiflex 400-MS
NOTE: Technical Specifications are subject to change without prior notice. Specifications and guarantees are
valid only when specified spare parts and filters are used.
B
C
A
Sales Spec. K1741-1 Mobiflex 400-MS
Input Voltage 115V, 1 Ph, 60 Hz
Rated Current Draw 10.0 A
Power Rating 0.75 kW
Sound Level 69 dB(A)
Weight Approx. 286 lbs. (130 kg)
GENERAL
Extraction Type Low Vacuum, High Volume
Airflow Rate 735 CFM (1,250 m
3
/h)
AIRFLOW
Filter Type Pretreated Paper Cartridge
Surface Area 328 ft
2
(30m
2
)
Efficiency 99.8% (stabilized)
FILTER
Min. Temperature 41
o
F (5
o
C)
Max. Temperature 113
o
F (45
o
C)
Max. Rel. Humidity 80%
AMBIENT CONDITIONS

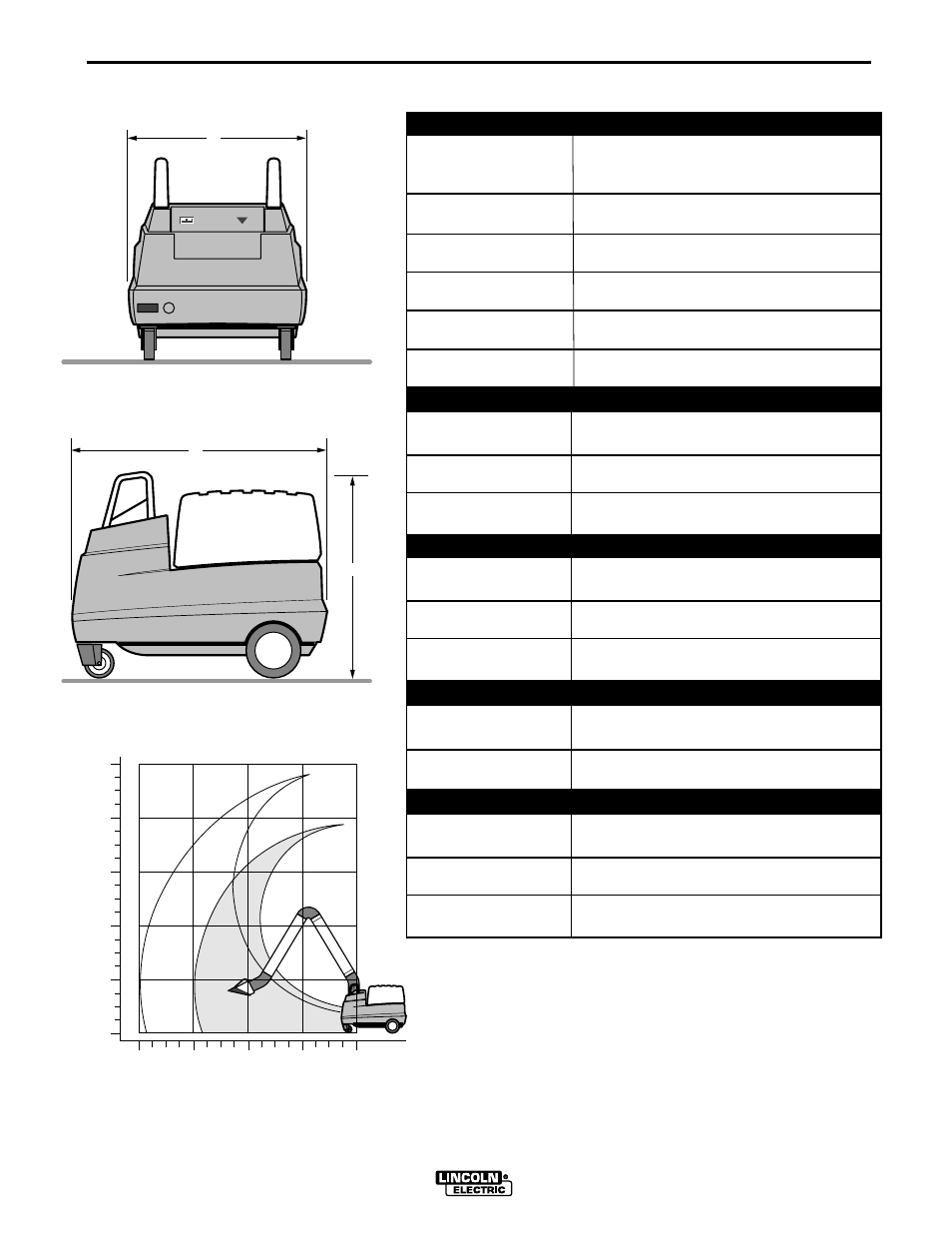

A Overall Width 31.9 in. (810 mm)
B Overall Length 47.7 in. (1210 mm)
C Overall Height 40 in. (1020 mm)
OVERALL DIMENSIONS
