MAINTENANCE MINIFLEX ® PORTABLE WELDING FUME EXTRACTOR
MAINTENANCE
ELECTRIC SHOCK can kill.
Unplug MINIFLEX before changing filter or
replacing carbon brushes.
• The aluminum collection pan should be inspected,
cleaned and emptied on a monthly basis.
• The pre-separator (located on the bottom of the main
filter) should be inspected and cleaned on a monthly
basis, using an industrial vacuum cleaner.
• The pre-filter should be inspected and cleaned on a bi-
monthly basis, using compressed air or an industrial
vacuum cleaner.
• Frequency of cleaning and emptying depends on a
number of factors such as the type of welding process
and the frequency of use.
• The main filter should be checked every month to
ensure that there is no damage.
• The seals of the main filter should be checked every
12 months.

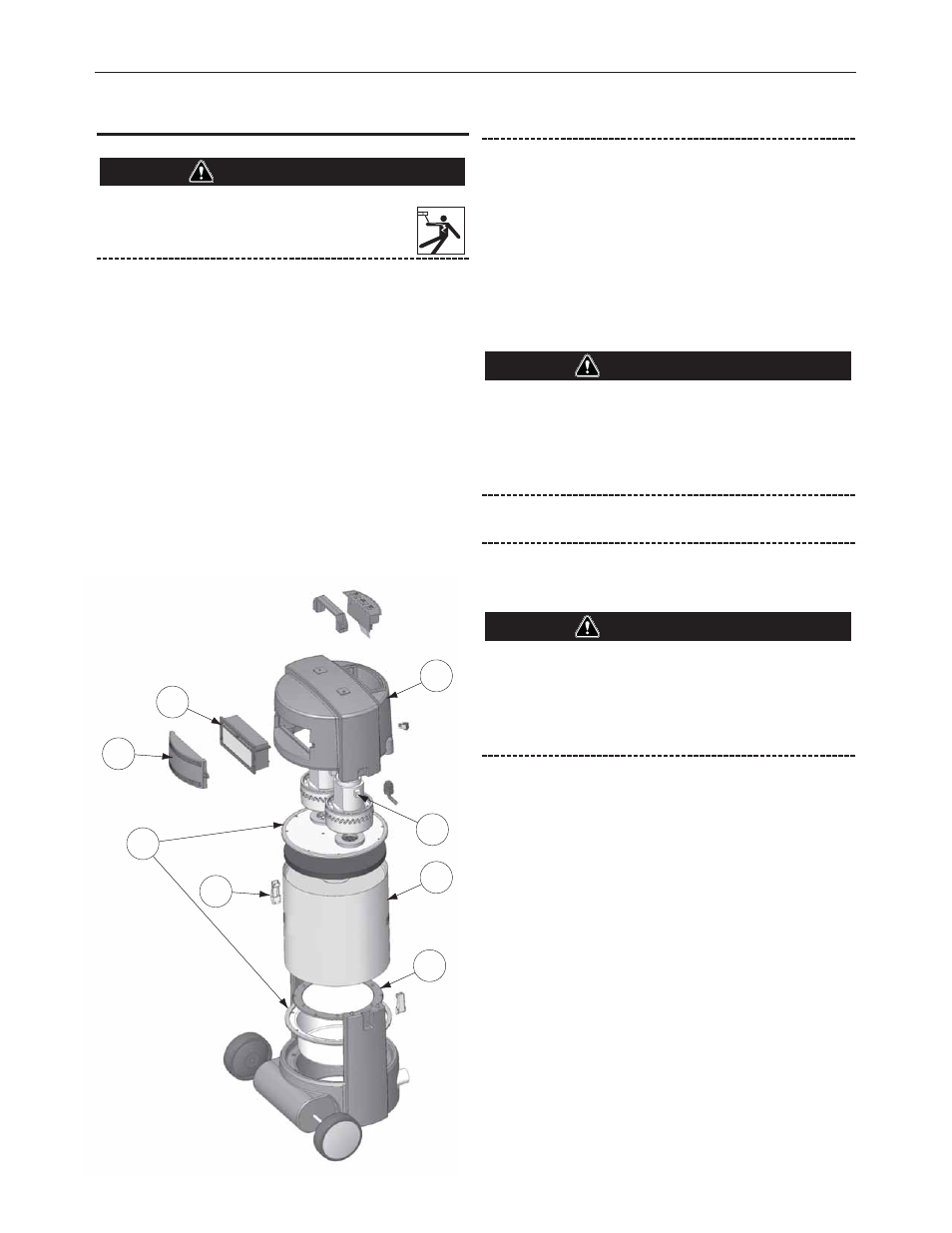

FIGURE 6
Refer to Figure 6 for the following instructions.
EMPTYING THE ALUMINUM COLLECTION PAN
1. Remove electrical cord of MINIFLEX unit from electrical outlet.
2. Loosen the side clips (A).
3. Remove the top cover (B) from the machine.
4. Remove LongLife-H Filter (C) by lifting the filter out of the bottom
compartment of the unit.
5. Remove pre-filter (H)
6. Empty the collection pan (D) and dispose of waste properly*.
7. Replace the pre-filter and the LongLife-H Filter to the bottom unit
and reattach top cover by fastening the side clips (A).
*Check with local authorities for regulations governing the proper
disposal of used filters and particulate matter.
The particulate matter collected in the unit may be
dangerous to your health. Take necessary precautions so
that you and your fellow workers do not breathe dust and
particulate. Wear a suitable respirator when disposing of
the particulate. Follow local Environmental regulations
for disposal of filters and particulate matter.
REPLACING THE FILTERS
The main LongLife-H filter and the HEPA filter cannot be cleaned and
therefore they have to be replaced periodically. It is recommended to
replace all filters at the same time.
A saturated filter often contains dust and dirt particles
which could form a health hazard upon inhalation. When
replacing the filters, always wear a high-quality and
approved face mask or respirator. Wrap the filters in a
properly closed plastic bag and dispose of it in
compliance with local regulations.
Replace the filters in case of damage or when the extraction capacity
has become insufficient due to the amount of particulate in the filter.
Periodic check of the filters is required to maintain optimal
performance and life of unit. Filter performance/life is dependent on
variables such as:
- Welding application/processes
- Oil involved in weld processes
- Dust/grinding particulate
- Proper usage and maintenance
Note: There is no filter clog indicator on this machine.
WARNING
WARNING
WARNING
B
C
H
A
E
G
F
D
A. Side Clips
B. Top Cover
C. LongLife-H Filter
D. Main Filter Seals
E. Outlet Cover
F. HEPA Filter
G. Carbon Brushes
H. Pre-filter
