INSTALLATION MINIFLEX ® PORTABLE WELDING FUME EXTRACTOR
INSTALLATION
The optional wall bracket provides an easy and practical way to free
some floor space. It can be easily installed onto any sturdy wall. The
bracket does not include any hardware, therefore the user must
supply their own screws, anchors, etc. because of the different types
of walls the bracket can be installed on.
NOTE: WALL CONSTRUCTION SHOULD BE STURDY
ENOUGH TO SUPPORT MINIFLEX UNIT.
The installer is responsible for following Federal, State and
Local safety codes and regulations.
Before drilling, verify locations of existing gas, water, or
electrical conduits.
ELECTRIC SHOCK can kill.
• Do not touch electrically live parts such as
internal wiring.
• Turn the input power off at the fuse box before
working on this equipment.
• Have a qualified person install and service this
equipment.
MOVING PARTS can injure.
• Do not operate with covers open or filter
removed.
• Keep away from moving parts.
ONLY QUALIFIED PERSONNEL SHOULD INSTALL,
USE OR SERVICE THIS EQUIPMENT.
MOUNTING THE WALL BRACKET ON A WALL
1. Using the bracket and a level as a guide, mark the four
holes at the desired location on the wall.
2. Drill holes at each location.
3. Set anchors and align bracket with holes.
4. Screw bracket into wall using appropriate screws.

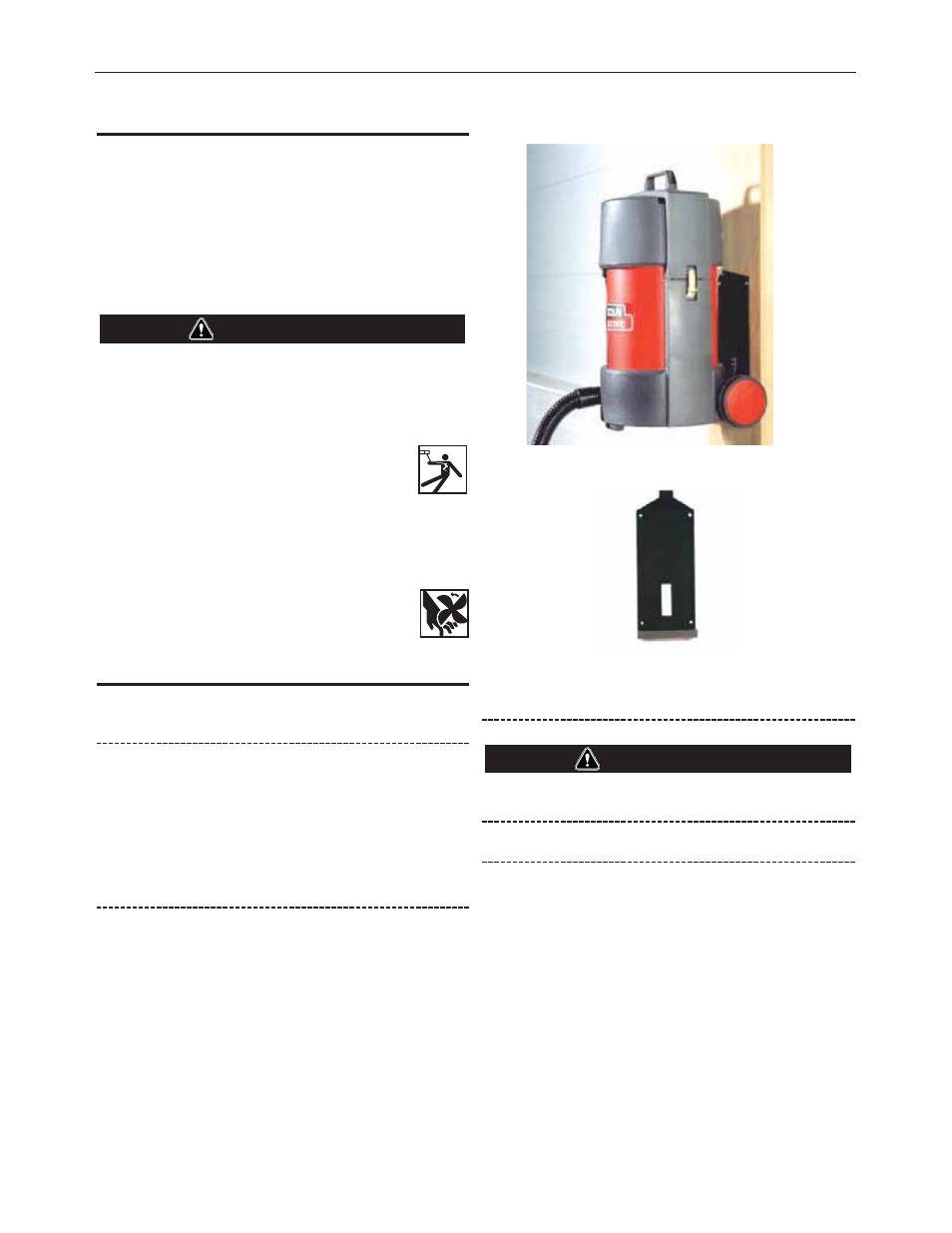

MOUNTING THE MINIFLEX ON A WALL BRACKET
1. The wheel side of the MINIFLEX should be facing the wall
(see Figure 1).
2. Push in the silver metal plate (see Figure 2) while inserting
the lip of the bracket between the top of the canister and
the filter.
3. When the lip of the bracket is in place, release the silver
plate to attach bottom portion of the MINIFLEX into the
bracket.
Push in silver metal plate and pull up on MINIFLEX to release from
wall bracket.
FIGURE 1
FIGURE 2
ELECTRICAL INSTALLATION
K3972-1: Requires 115V AC, single phase, 60Hz
grounded receptacle suitable for 15 amp service.
K3973-1: Requires 230V AC, single phase, 60Hz
grounded receptacle suitable for 7.5 amp service.
