A-8 INSTALLATION
LN-25™ PRO DUAL POWER
A-8
CC Power Sources with Output Terminals always
Hot Stud Connectors and no Remote/Local
Switch. (See Figure A.7)
Place CV/CC switch in the feeder in the "CV" position.
CV Power Source with Twist-Mate Connectors and
Remote/Local Switch. (See Figure A.8)
Place the power source Remote/Local switch in the
Local position.
Place CV/CC switch in the feeder in the "CV" position.
K#
K2613-1
K2614-1, -3
KP1695-XX
KP1696-XX
KP1697-XX
See Magnum Literature
K1803-1
Description
LN-25™ PRO Dual Power
Drive Roll Kit
Welding Gun
CC power Source
Welding Cables
Work clip
Work
Electrode
LN-25™ PRO
DUAL POWER
CC Power Source
Classics
Big Red’s
Eagle 10,000 Plus
Pipeliner 200D Without Wire Feed module
SAE’s Without CV Adapter
SAE 400 with CV adapter
Engine Driven welder with
Wire Feed Module

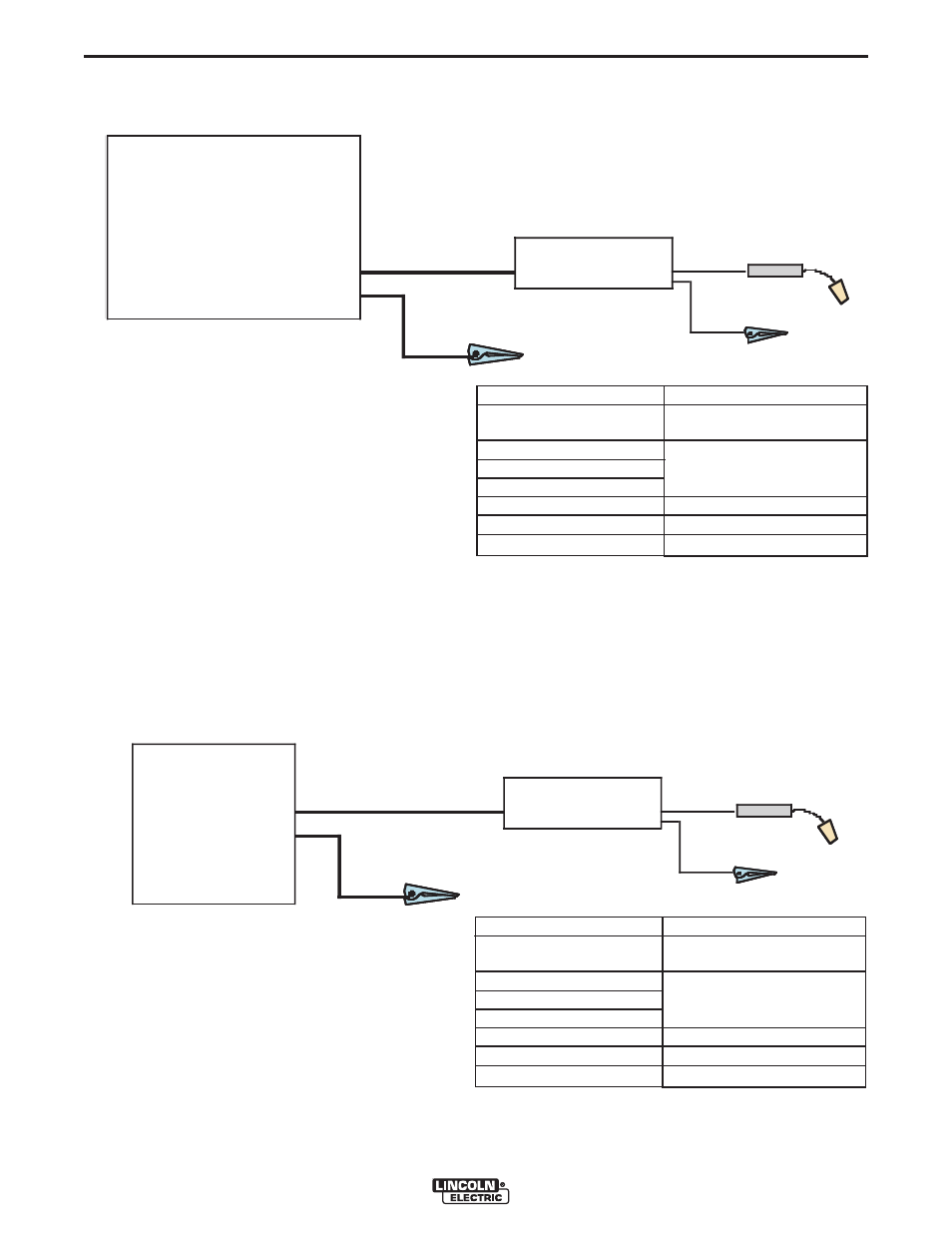

FIGURE A.7
Work clip
Work
Electrode
LN-25™ PRO
CV-655
DC-400
DC-600
DC-655
V450-Pro
SAE 400 with CV adapter
Engine Driven welder with
Wire Feed Module
Ranger 250 GXT
DUAL POWER
FIGURE A.8
K#
K2613-1
K2614-1, -3
KP1695-XX
KP1696-XX
KP1697-XX
See Magnum Literature
K1841
Description
LN-25™ PRO Dual Power
Drive Roll Kit
Welding Gun
CC power Source
Welding Cables
