A-7 INSTALLATION
LN-25™ PRO DUAL POWER
A-7
ACROSS THE ARC SET-UPS
CC Power Sources with Output Terminals Always
Hot (See Figure A.5)
If the power source has a Remote/Local switch, place
the switch in the Local position.
Place the CV/CC switch in the feeder in the "CC" posi-
tion.
CV Power Sources with Stud Connectors and
Remote/Local Switch (See Figure A.6)
Place the power source Remote/Local switch in the
Local position.
Place CV/CC switch in the feeder in the "CV" position.
K#
K2614-1, -3
KP1695-XX
KP1696-XX
KP1697-XX
See Magnum Literature
K1803-1
Description
LN-25™ PRO Dual Power
Drive Roll Kit
Welding Gun
CC power Source
Welding Cables

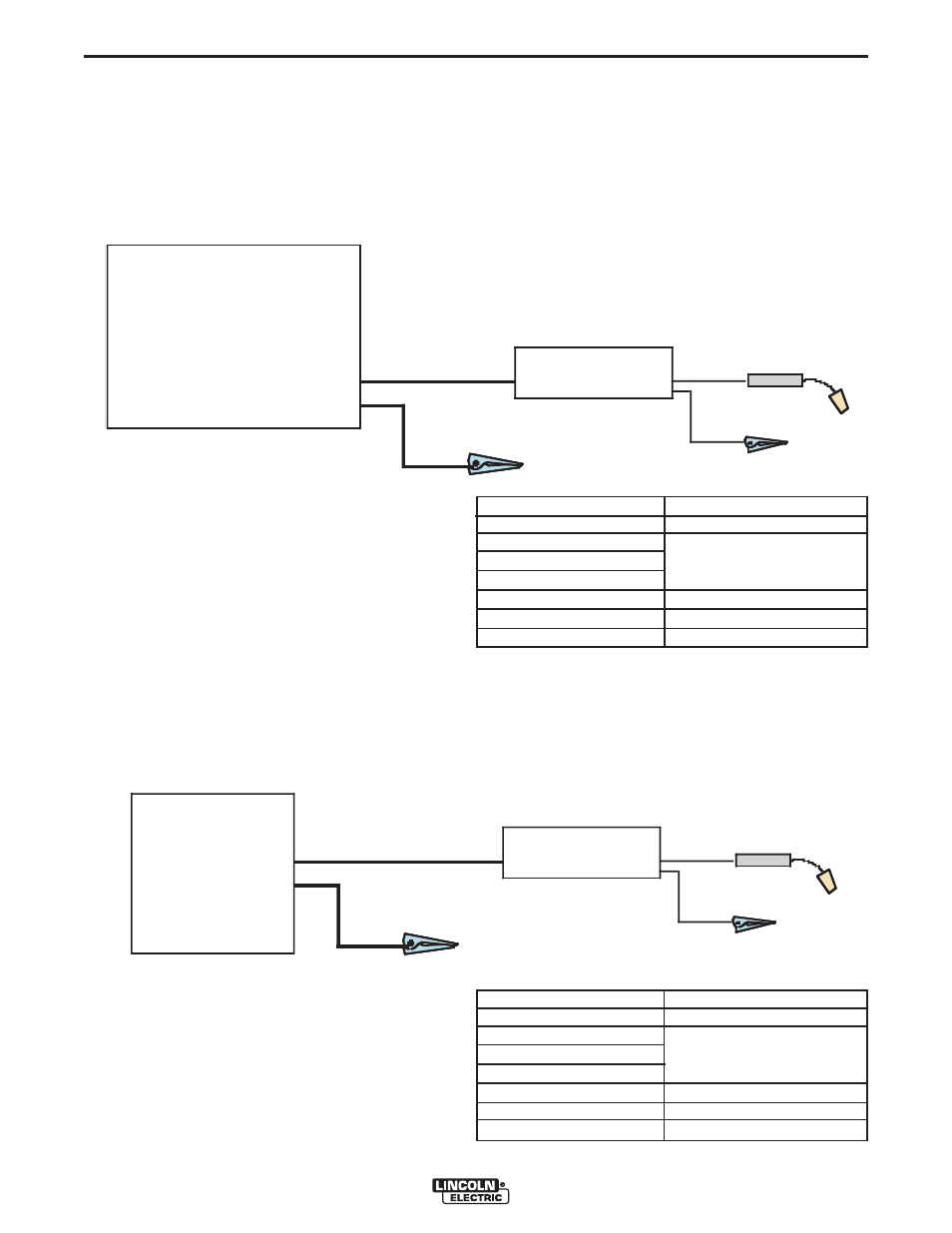

POWER SOURCE TO LN-25™ PRO
CABLE CONNECTION DIAGRAMS
K#
K2614-1, -3
KP1695-XX
KP1696-XX
KP1697-XX
See magnum Literature
K1803-1
Description
LN-25™ PRO Dual Power
Drive Roll Kit
Welding Gun
CV power Source
Welding Cables
Work clip
Work
Electrode
LN-25™ PRO
DUAL POWER
CC Power Source
Classics
Big Red’s
Eagle 10,000 Plus
Pipeliner 200D Without Wire Feed module
SAE’s Without CV Adapter
SAE 400 with CV adapter
Engine Driven welder with
Wire Feed Module
Work clip
Work
Electrode
LN-25™ PRO
CV-655
DC-400
DC-600
DC-655
V450-Pro
SAE 400 with CV adapter
Engine Driven welder with
Wire Feed Module
Ranger 250 GXT
DUAL POWER
