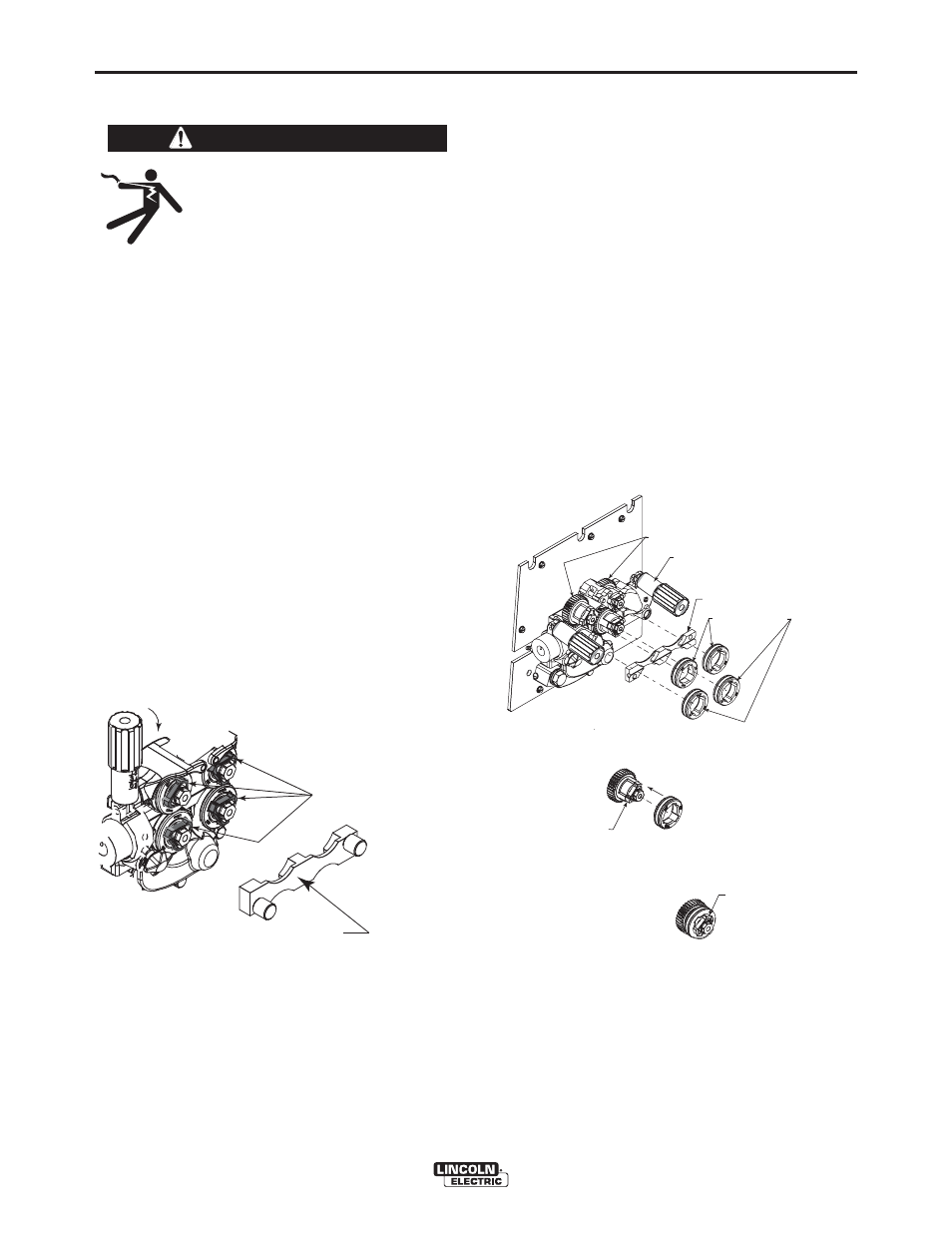

ASSEMBLY OF DRIVE ROLLS AND WIRE
GUIDES
ELECTRIC SHOCK can kill.
• Turn the input power OFF at the
welding power source before instal-
lation or changing drive rolls and/or
guides.
• Do not touch electrically live parts.
• When inching with the gun trigger, electrode
and drive mechanism are "hot" to work and
ground and could remain energized several sec-
onds after the gun trigger is released.
• Only qualified personnel should perform mainte-
nance work.
------------------------------------------------------------------------
To remove drive rolls and wire guides:
(See Figure A.6)
1. Turn power off at the welding power source.
2. Remove the outer wire guide.
3. Rotate 4 triangular rings to the unlocked position.
4. Open the pressure arms.
5. Remove the drive rolls and inner wire guide.
To install drive rolls and wire guides:
(See Figure A.7 and A.7a)
1. Turn off power at the welding power source.
2. Open pressure arms.
3. Assemble the inner wire guide.
4. Slide the drive rolls onto the drive hubs.
(See figure A.7)
5. Close the pressure arms.
6. Rotate 4 triangular rings to the locked position.
(See figure A.7a)
7. Assemble the outer wire guide.
8. Adjust the pressure arms to the recommended set-
ting.
OUTER WIRE GUIDE
4 TRIANGULAR RINGS
IN UNLOCKED POSITION
2 PRESSURE ARMS
ROTATE DOWN
INNER WIRE GUIDE
DRIVE ROLLS
DRIVE HUBS
PRESSURE ARMS
IN OPEN POSITION
SLIDE DRIVE ROLL
ON DRIVE HUB
TRIANGULAR RING IN
UNLOCKED POSITION
TRIANGULAR RING IN
LOCKED POSITION
FIGURE A.6
FIGURE A.7
FIGURE A.7a
