A-2 INSTALLATION
LF-74
A-2
SAFETY PRECAUTION
LOCATION
The LF-74 may be placed on a bench, mounted on
top of a welding power source or assembled to an
appropriate boom.
Place the LF-74 in a clean and dry location.
Do not stack the LF-74.
ELECTRIC SHOCK can kill.
• Turn the input power OFF at the
welding power source before instal-
lation or changing drive rolls and/or
guides.
• Do not touch electrically live parts.
• When inching with the gun trigger, electrode
and drive mechanism are "hot" to work and
ground and could remain energized several
seconds after the gun trigger is released.
• Welding power source must be connected to
system ground per the National Electrical Code
or any applicable local codes.
• Only qualified personnel should perform main-
tenance work.
----------------------------------------------------------------------------------------
5/8-16 5/8-16 THREADS THREADS
(4 PLACES) (4 PLACES)
1/4-20 1/4-20 THREADS THREADS
(4 PLACES) (4 PLACES)
5/16-18 5/16-18 THREADS THREADS
(4 PLACES) (4 PLACES) MOUNTING FEET MOUNTING FEET
SECURED WITH
SECURED WITH
#10-24 SCREWS
#10-24 SCREWS
(4 PLACES)
(4 PLACES)

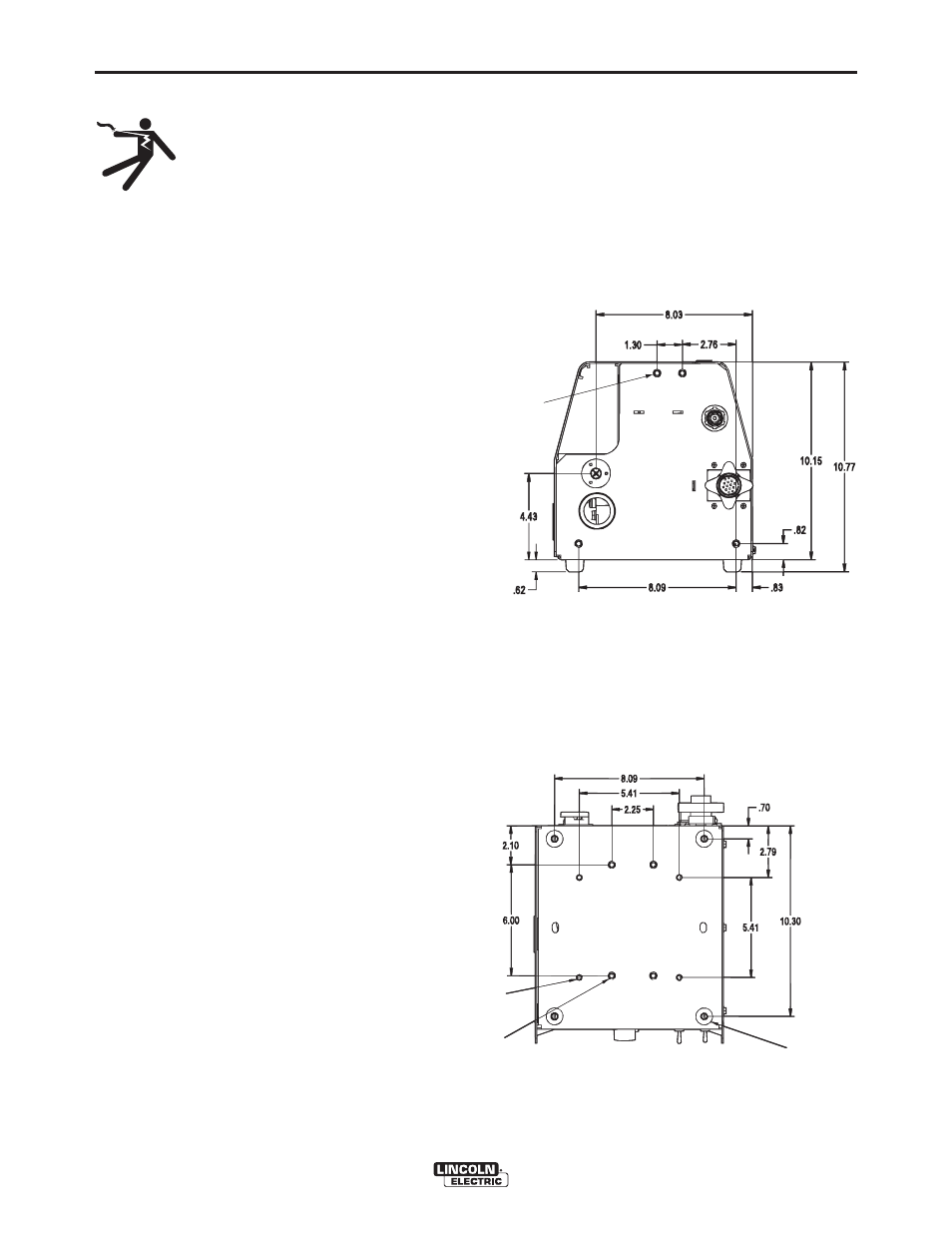

FIGURE A.1
FIGURE A.2
MOUNTING
For location and size, LF-74 Bench Model Rear
Mounting Holes (See Figure A.1) and for Bottom
Mounting Holes (See Figure A.2).
