VT6420 User Manual – SATA Controller

Revision 1.01, May 19, 2003

28 RAID

Software

Add and Remove Spare Disk Drive

Add Spare Disk Drive

A spare disk drive can be added when a RAID 1 array is created. The capacity of the spare disk drive must be greater than or
equal to the capacity of the RAID 1 array. If there is no spare disk drive in a RAID 1 array, user can add a spare disk drive after

RAID 1 array is created by clicking on

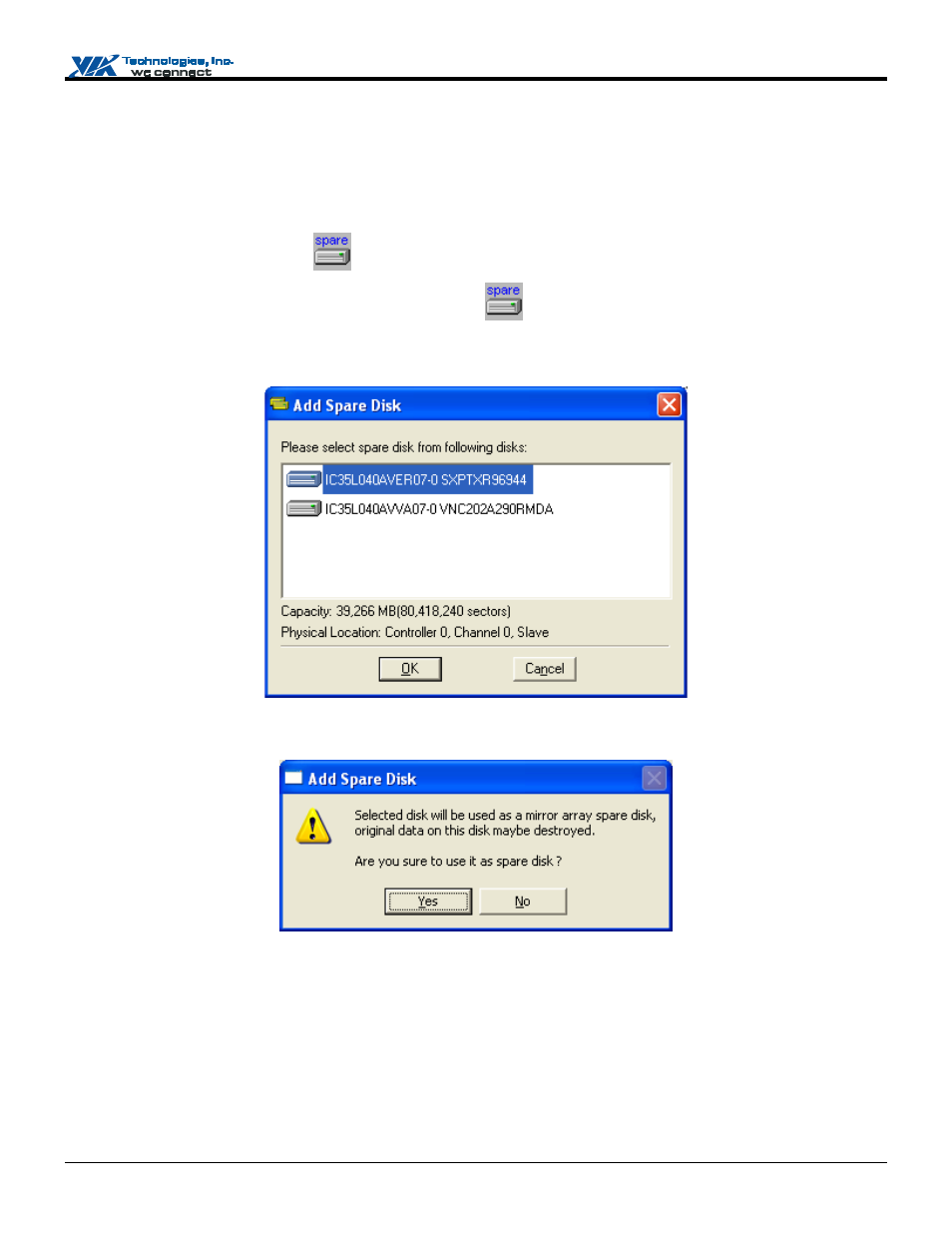

1. Select the RAID 1 array in the left windowpane and click on

, the available disk drives will then be listed in a popup

window.

2. Select a disk drive and click on OK to add a spare disk drive to RAID 1.

3. A warning message will popup, click Yes to finish adding the spare disk or No to cancel it.
