VT6420 User Manual – SATA Controller
Revision 1.01, May 19, 2003 9 BIOS Configuration Utility

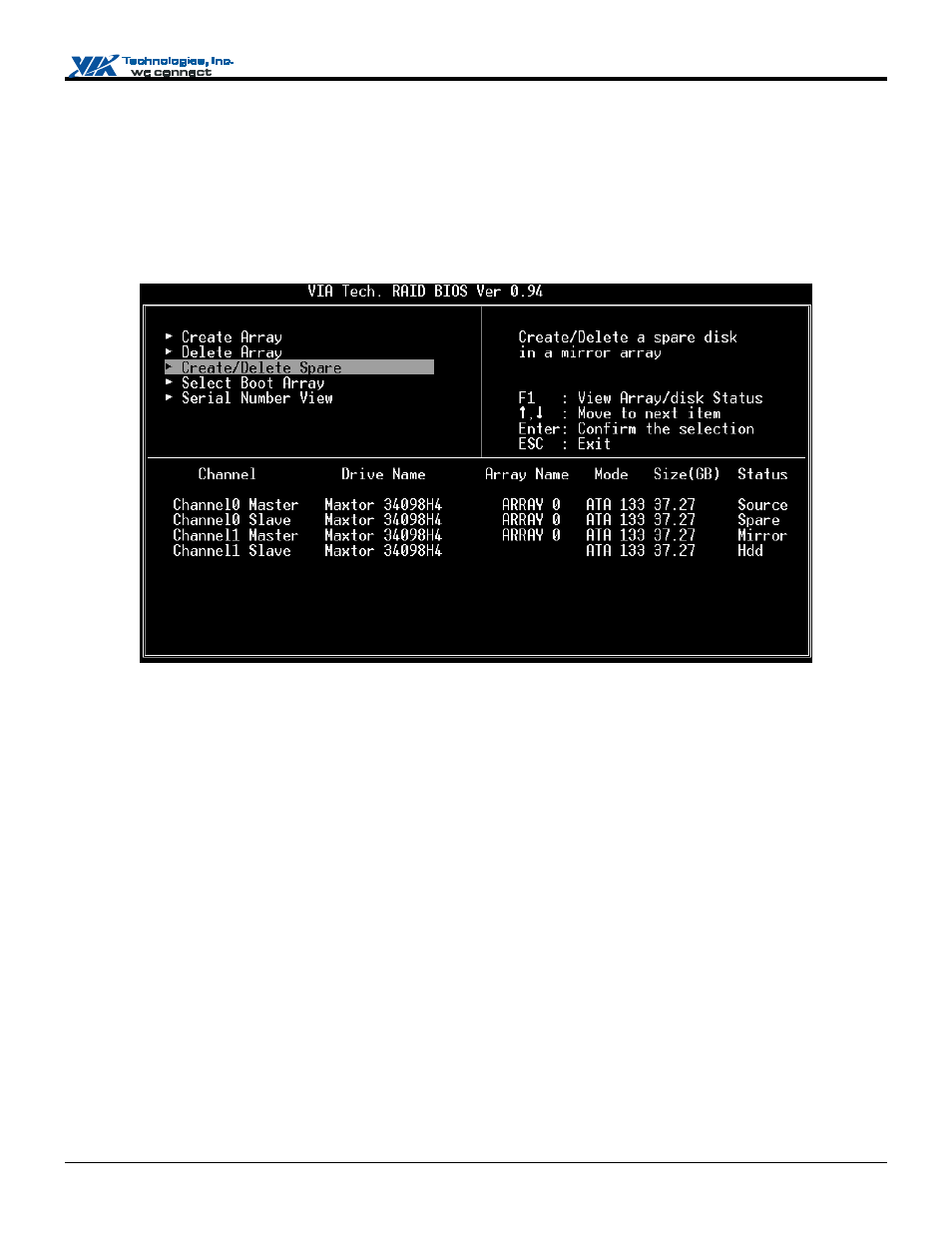

Create and Delete Spare Hard Drive
If a RAID 1 array is created and there are drives that do not belong to other arrays, the one that has a capacity which is equal to or
greater than the array capacity can be selected as a spare drive for the RAID 1 array. Select Create/Delete Spare and press
, the channel column will then be activated. Select the drive that you want to use as a spare drive and press , the
selected drive will be marked as Spare. The spare drive cannot be accessed in an OS.
To delete a spare drive, highlight Create/Delete Spare and press . The spare drive will be highlighted, press to
delete the spare drive.
