Chapter 2
15
H87H3-TI USER MANUAL
Follow these instructions to install a wireless card:
1 Remove a blanking plate from the system case, and insert the wireless
card into the PCIE2 slot rightwards, then tighten the screw (Please refer
to Picture 1).
2 Press the metal connector of the cable into the connector on the wireless
card. Ensure that the metal connector is correctly seated (Please refer to
Picture 2).
3 Make the other end of the cable (with a gold screw) through the upper hole
of the bracket, and tighten the antenna on to the gold screw after
installing a metal gasket on the screw (Please refer to Picture 3).

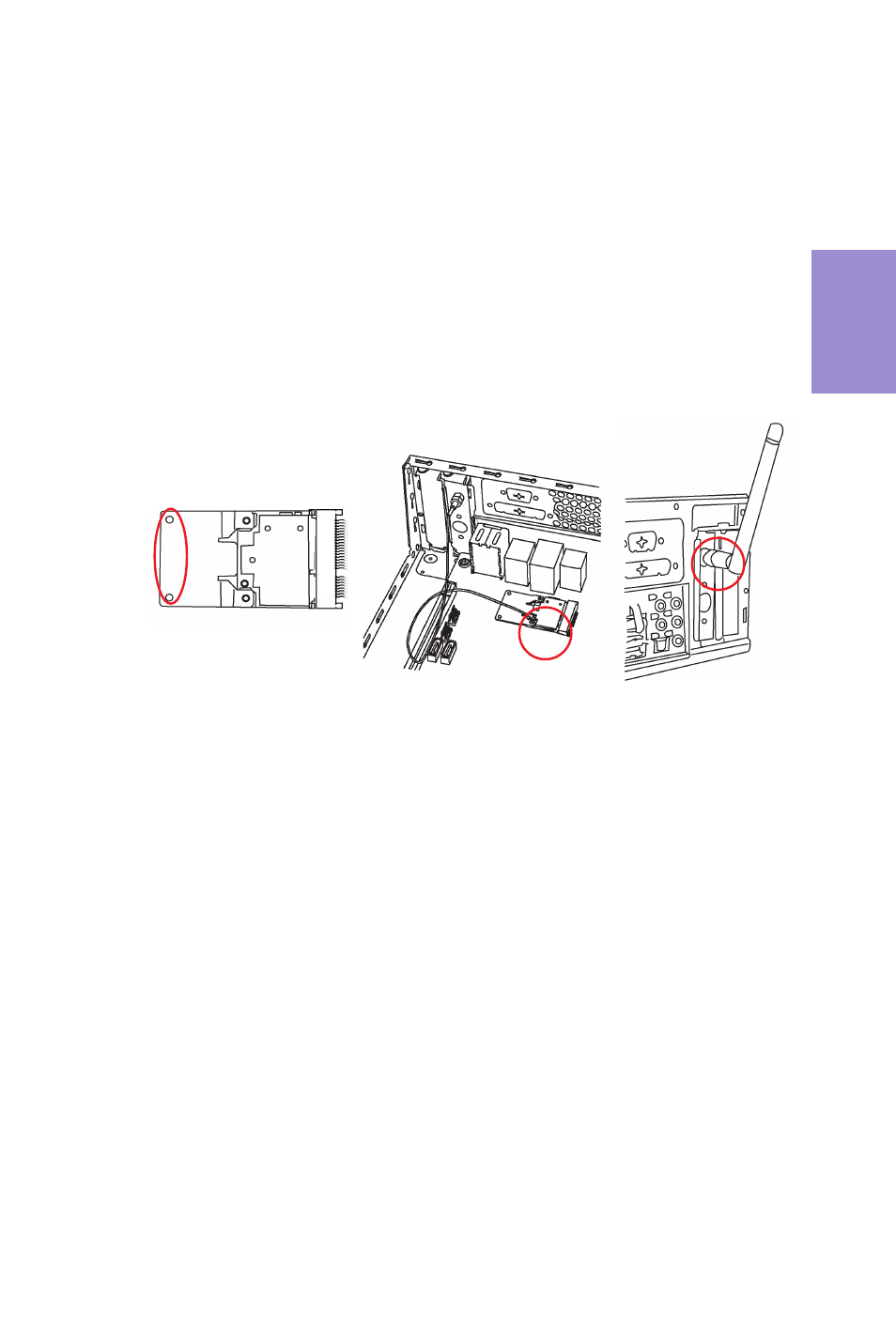

Picture 1 Picture 2 Picture 3
* For reference only
PCIE2
