Z87h3-a3x user manual, Chapter 2 – Elitegroup Z87H3-A3X (V1.0) User Manual
Page 14
Chapter 2
8
Z87H3-A3X USER MANUAL

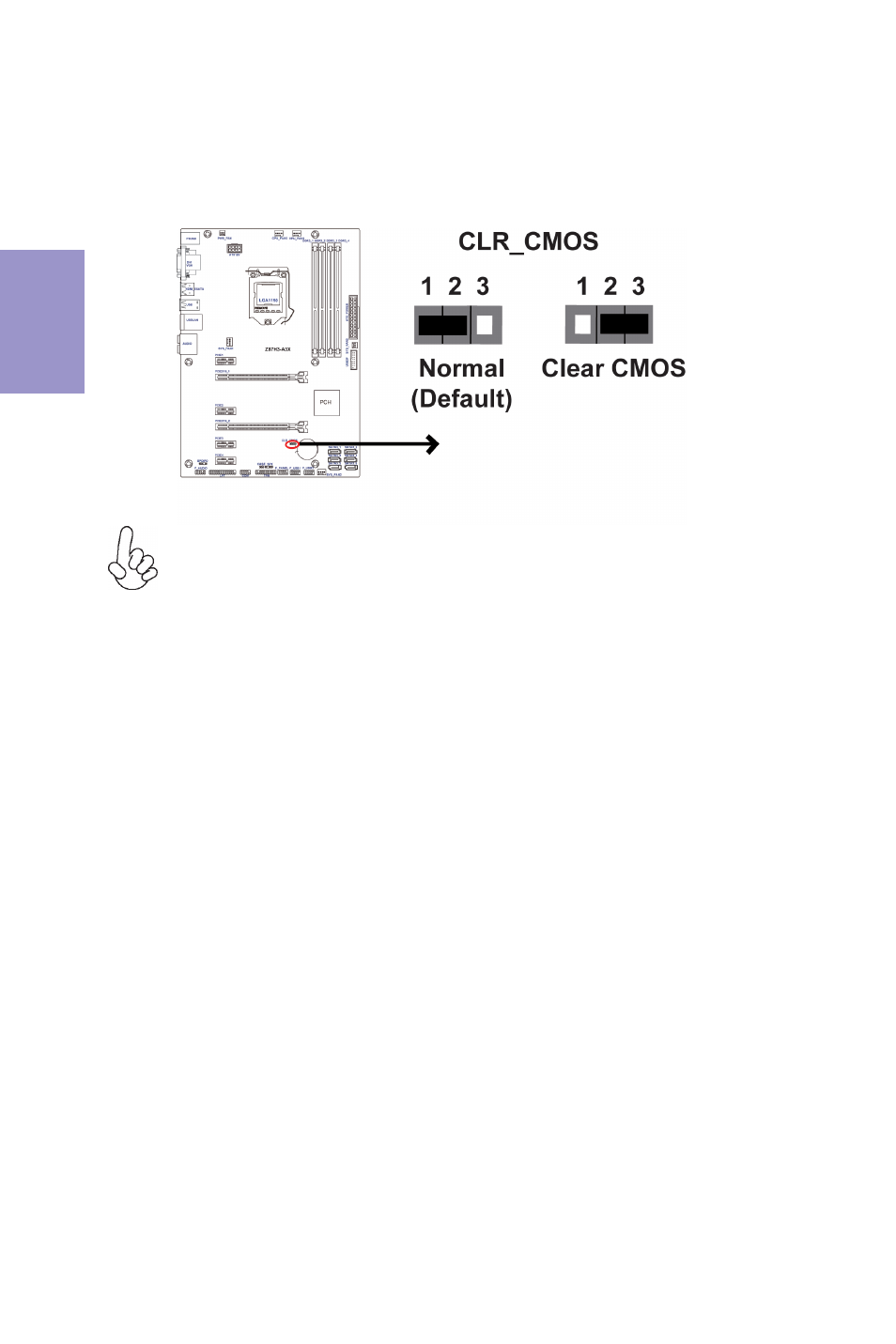

The following illustration shows the location of the motherboard jumpers. Pin 1 is
labeled.
To avoid the system instability after clearing CMOS, we recommend users to
enter the main BIOS setting page to “Load Default Settings” and then “Save
and Exit Setup”.
2-3. Checking Jumper Settings
