APPLICATIONS :
• This domestic submersible sewage system is
designed and suitable for raw sewage applications
where the total head requirements do not exceed 15
feet, including pipe friction losses. For higher lifts,
consult factory.
•CAPACITY
5’ 4500
US
GPH
10’ 3120 US
GPH
15’ 720 US
GPH
Friction loss in pipe not included
FEATURES :
• Vortex designed impeller made from glass fi lled
Noryl, will not corrode.
• Rugged cast iron pump body.
• Stainless steel mechanical rotary type motor seal.
• 2’’ NPT pump discharge.
• Thermal and overload protection.
• Vertical type switch, 15A.
• 1/2 HP, 115 V AC, 60 Hz, 9.2 A (18 A at start).
INSTALLATION STEPS :
See the Easy Flush installation diagram in page 7
Position the ‘‘EASY FLUSH’’ System at the desired location, it should be leveled to 1/8’’ both on the width
and length of the tank.
For a built-in installation, the unit is designed to fi t within 2’’ X 6’’ fl oor joist.
Determine the closest location for the pump discharge and vent lines, take the necessary measurements
and determine what plumbing parts are required. (See material required on shopping list on page 2).
To help reduce the risk of electrical shocks, a properly grounded receptacle must be installed and
protected by a ground fault interrupter 'GFCI' in accordance with local and national codes. Never remove
the ground pin from the plugs, they are supplied for your protection.
Install the rubber gasket under the lip of the cast iron fl ange, as illustrated on photo B. This gasket will
assure a perfect seal. Install the cast iron fl ange on the tank, in a suitable position that will enable you to
choose the proper alignment for the type of toilet purchased, and the type of installation
required. Drill four (4) 1/4’’ holes in the sewage tank for the installation of the fl ange
using same as a jig (photo A). Please disregard the markings around the hole of the
tank. They are only moulding guides and have no further use.
IMPORTANT NOTICE :
The following are minimum requirements in order to protect your residence from fl ooding. It is a small investment
but it is your personal responsability to protect your home, family and valuables. Failure to comply with the following
requirements will also void your warranty :
- An alarm system model # 450454 has to be installed to advise you of any malfunctions.
Pump selection, proper and adequate installation are a must to comply with local by-laws and need to be adhered to.

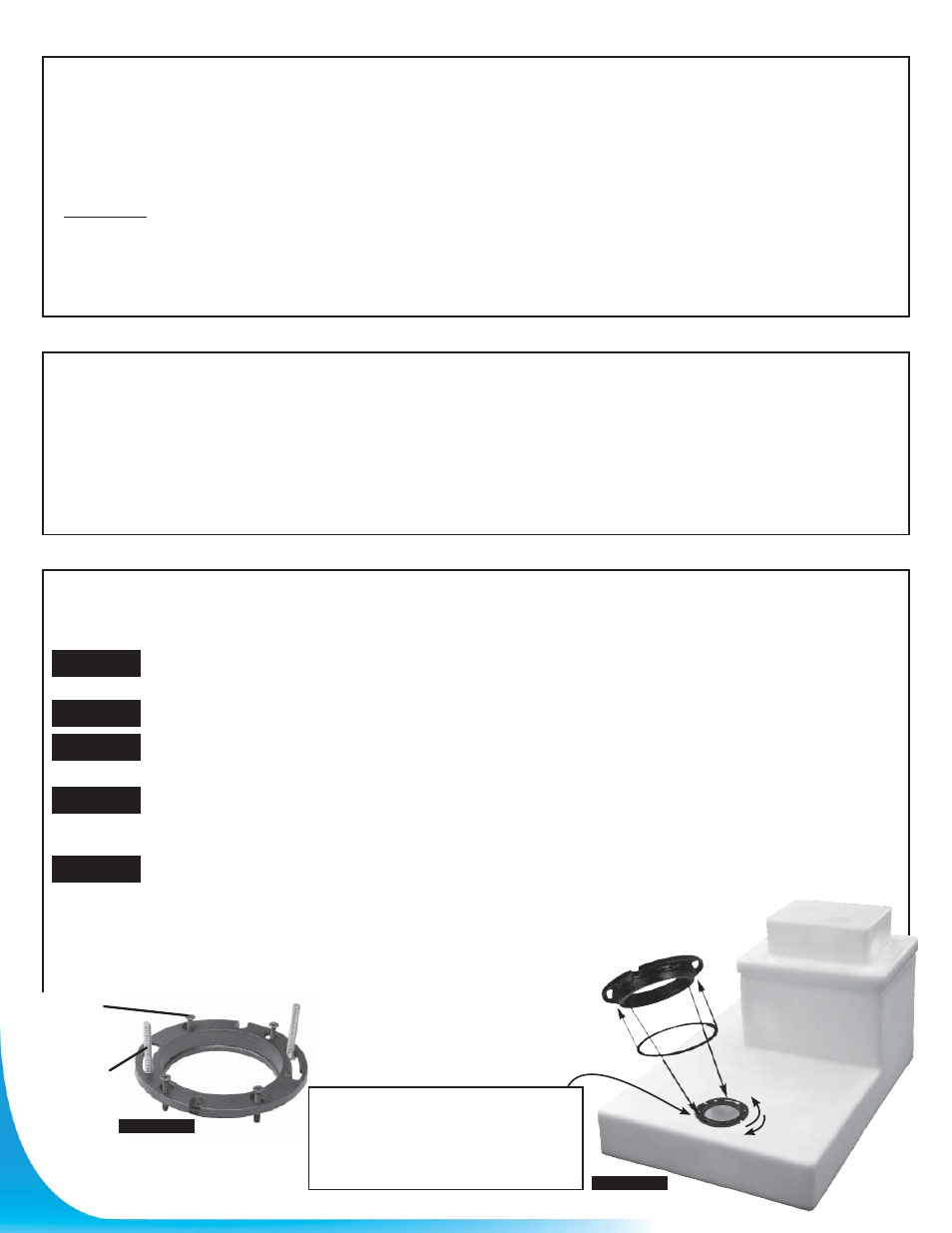

PHOTO A
PHOTO B
TOILET BRASS
SCREWS (2)
FLANGE
SCREWS (4)
FLANGE
GASKET
During the installation of the fl ange,
it is imperative to seal all around
the fl ange and rubber gasket, using
a waterproof silicone caulking, to
prevent leakage.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 5
