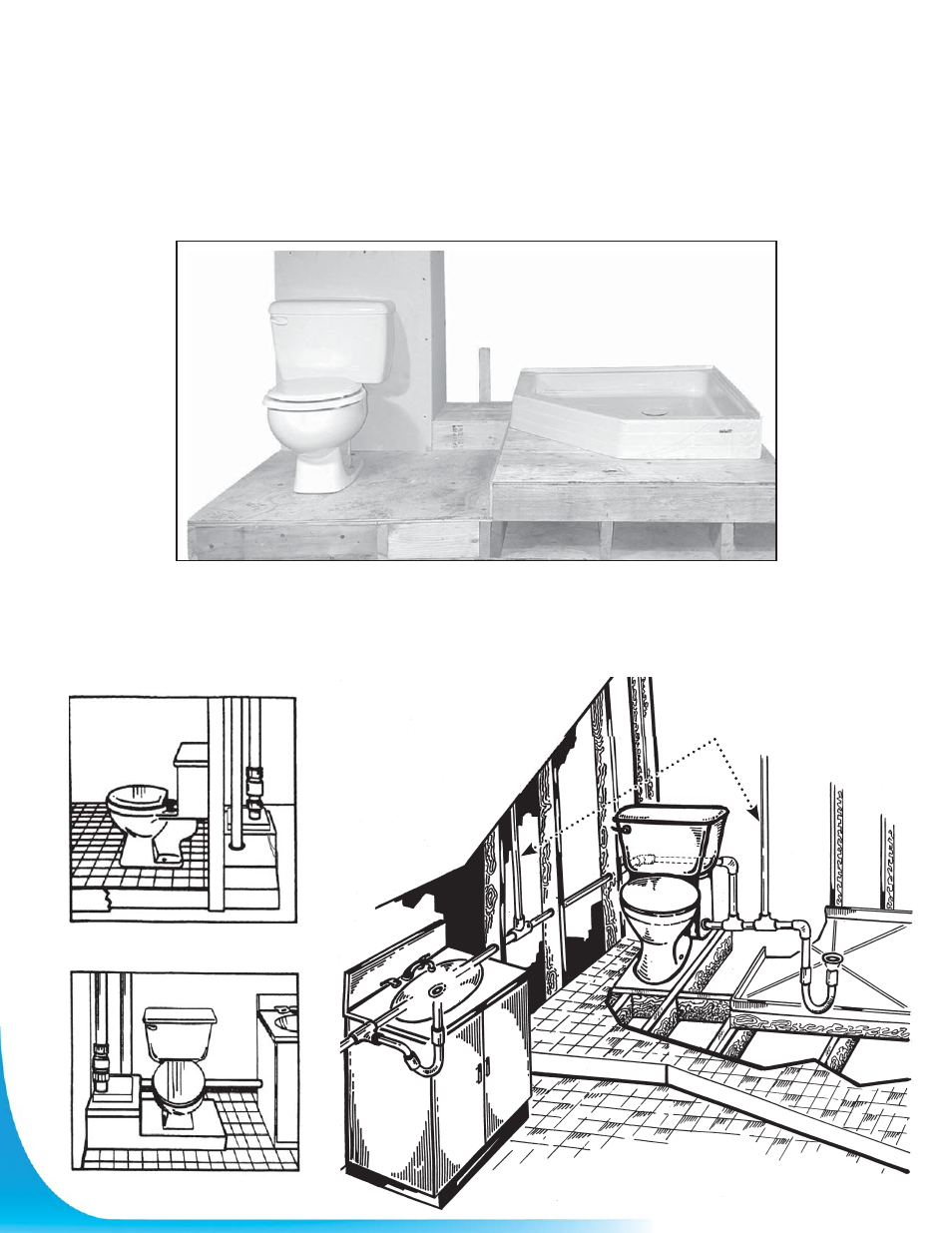

TYPICAL HIDDEN SOLUTION:
Designed to be installed between 2" X 6", it’s easy to built a complete bathroom with the "Easy Flush" System.
Compare to a traditional sewage system, the only different component is the tank, which is designed to receive the
toilet cabinet. All other components are standard and are part of a traditional sewage system.
You may hook up a sink, a shower or a bath, a dishwasher or a washing machine, or any other device requiring a
sewage water drain.
This is a typical way to complete your installation project without breaking the concrete fl oor of your
basement and to eliminate the disadvantage of a mess built-up. This document is step by step instructions
to plan your project. Please refer to our installation instructions booklet (page 3 to 6) for technical assembly
procedures.
10
FRONT OR SIDE INSTALLATION
PLUMBING HIDDEN INSTALLATION
FOR SHOWER AND VANITY
INSTALLATION, EVERY UNIT
MUST BE VENTED.
